| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Image Sensor: |
CCD |
| Type: |
Digital |
Product Description
Model No.
FV-IR191 SN480TV
FV-IR191 SN580
Description:

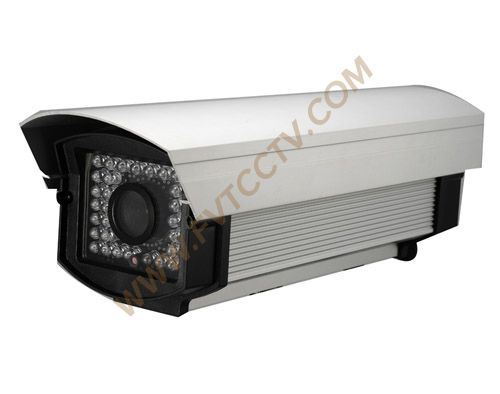

Weatherproof IR camera for in/outdoor
Image Sensor 1/3" Super HAD CCD
Effective Pixels PAL: 752(H)x582(V) / NTSC: 768(H)x494(V)
Resolution
480 TV Line
580 TV Line (WDR)
TV System PAL / NTSC
Lens 12mm fixed lens, optional
IR LED 8 X 36 PCS
Night Vision Up to 45-55M
IR LED Control Automatic, CDS Sensor
Min. Illumination 0 Lux ( LED on )
IR Wave 850nm
Video Output BNC / 1.0Vp-p, 75Ω
S/N Ratio >52dB ( AGC on )
Gamma Correction 0.45
Electronic Shutter PAL 1/50-1/100, 000Sec, NTSC 1/60-1/100, 000Sec
BLC/AGC Auto
White Balance Auto
Sync System Internal
Operating Temp -10 - 50
Operating Humidity ≤ 95 %
IP Rating IP65
Extended Options
1/3" Super HAD CCD, 420TV Line
1/4" Super HAD CCD, 420TV Line
1/3" Color CCD, 420TV Line
1/4" Color CCD, 420TV Line
