| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Image Sensor: |
CCD |
| Type: |
Digital |
Product Description
Model No.
FV-BX363
Description

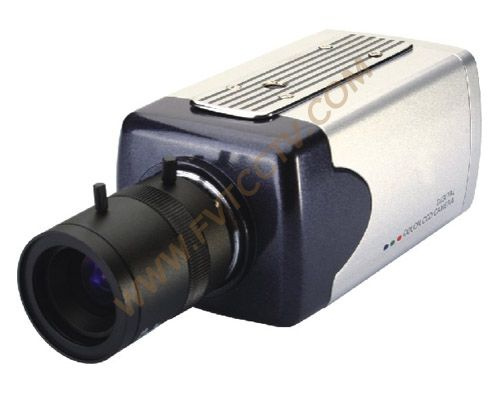

Color Box Camera for Indoor
Image Sensor1/4" Super HAD CCD
Effective Pixels
PAL: 500(H)x582(V) / NTSC: 510(H)x492(V)
Resolution420 TV Line
TV SystemPAL / NTSC
Lens MountC / CS optional
Iris DriveDC / Video Switchable
Min. Illumination0.2 Lux
Video OutputBNC / 1.0Vp-p, 75Ω
S/N Ratio>48dB ( AGC on )
Gamma Correction0.45
Electronic ShutterPAL 1/50-1/100, 000Sec, NTSC 1/60-1/100, 000Sec
BLCOn /off Switchable
AGCOn /off Switchable
White BalanceOn /off Switchable
Sync SystemInternal
Operating Temp-10 - 50
Operating Humidity≤ 95 %
Extended Options
1/3" Super HAD CCD, 540TV Line
1/3" Super HAD CCD, 420TV Line
1/3" Color CCD, 420TV Line
1/4" Color CCD, 420TV Line
High-tech corporation, which is specialized in developing, manufacturing and marketing safety protection products. Since the foundation of 2003, First View Technology has aimed to be a top international security enterprise and provide prominent marketing service.
Implement the RUP management system. Run the TPS, TQC and TPM on production line. Has the ISO9001 and ISO14001 authentication. Company Products are accredited by RoHS, CE, FCC and CMA, and have been exported to more than 80 countries and regions.
Following the tenet "Technology first, Quality first", we keep absorbing advanced technology and elitist from beginning. We have developed and produced "First-View" serial safety protection products independently. For example, CCD, IP internet cameras, WDR high resolution cameras, hemisphere series, wireless, alarm, visual intercom line and standard alone DVR. Our products are sold well to the US, Europe, African, Middle East and so on. We have established long-term cooperated relationship with our clients. We owe all these to advanced technology and reliable quality.
Complying with the business principle "To be honest, and to be reliable", we satisfy our clients with more sophisticated products, more reasonable price, and more perfect service.
First View is the professional choice and your reliable partner.
We are looking forward to cooperating with you!
