| Prod Model: |
CMV-V***W/ZR1 |
| Markets: |
North America,South America |
| Type: |
Central Air Conditioners |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| Certification: |
CE |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
| Capacity: |
25kw-180kw |
Product Description

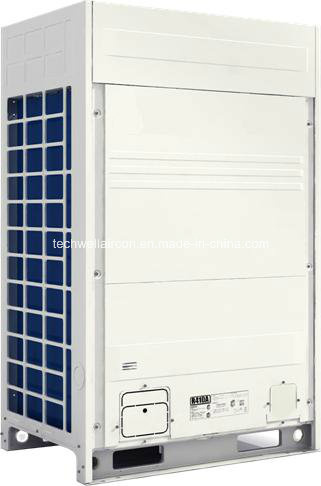

VRF air conditioners condensing units
-DC-inverter, R410a gas
-Power supply: 208~230V/3Ph/60Hz
-Modular outdoor units design:
5 basic modules: 8HP, 10HP, 12HP, 14HP and 16HP.
Free combination of outdoor units
Max capacity of combination up to 64HP(180kw)
-Wide operation temperature range: -20ºC~50ºC
-Stable cooling or heating performance
-With DC fan motor, low noise operation
-Anti snow function, intelligent defrosting.
-Intelligent defrosting
-Longest pipe 200 meters, Max height difference: 70 meters.
| HP | Model name | Basic module | Capacity (kW) | Max. indoor unit quantity |
| 8HP | 10HP | 12HP | 14HP | 16HP | Cooling | Heating |
| 8 | CMV-V252W/XR1-B | * | | | | | 25.2 | 27 | 13 |
| 10 | CMV-V280W/XR1-B | | * | | | | 28 | 31.5 | 16 |
| 12 | CMV-V335W/XR1-B | | | * | | | 33.5 | 37.5 | 16 |
| 14 | CMV-V400W/XR1-B | | | | * | | 40 | 45 | 16 |
| 16 | CMV-V450W/XR1-B | | | | | * | 45 | 50 | 20 |
| 18 | CMV-V532W/XR1-B | * | * | | | | 53.2 | 58.5 | 20 |
| 20 | CMV-V560W/XR1-B | | ** | | | | 56 | 63 | 24 |
| 22 | CMV-V615W/XR1-B | | * | * | | | 61.5 | 69 | 24 |
| 24 | CMV-V680W/XR1-B | | * | | * | | 68 | 76.5 | 28 |
| 26 | CMV-V730W/XR1-B | | * | | | * | 73 | 81.5 | 28 |
| 28 | CMV-V785W/XR1-B | | | * | | * | 78.5 | 87.5 | 28 |
| 30 | CMV-V850W/XR1-B | | | | * | * | 85 | 95 | 32 |
| 32 | CMV-V900W/XR1-B | | | | | ** | 90 | 100 | 32 |
| 34 | CMV-V960W/XR1-B | | ** | | * | | 96 | 108 | 36 |
| 36 | CMV-V1010W/XR1-B | | ** | | | * | 101 | 113 | 36 |
| 38 | CMV-V1065W/XR1-B | | * | * | | * | 106.5 | 119 | 36 |
| 40 | CMV-V1130W/XR1-B | | * | | * | * | 113 | 126.5 | 42 |
| 42 | CMV-V1180W/XR1-B | | * | | | ** | 118 | 131.5 | 42 |
| 44 | CMV-V1235W/XR1-B | | | * | | ** | 123.5 | 137.5 | 42 |
| 46 | CMV-V1300W/XR1-B | | | | * | ** | 130 | 145 | 48 |
| 48 | CMV-V1350W/XR1-B | | | | | *** | 135 | 150 | 48 |
| 50 | CMV-V1432W/XR1-B | * | * | | | ** | 143.2 | 158.9 | 54 |
| 52 | CMV-V1460W/XR1-B | | ** | | | ** | 146 | 163 | 54 |
| 54 | CMV-V1515W/XR1-B | | * | * | | ** | 151.5 | 169 | 54 |
| 56 | CMV-V1580W/XR1-B | | * | | * | ** | 158 | 176.5 | 58 |
| 58 | CMV-V1630W/XR1-B | | * | | | *** | 163 | 181.5 | 58 |
| 60 | CMV-V1685W/XR1-B | | | * | | *** | 168.5 | 187.5 | 58 |
| 62 | CMV-V1750W/XR1-B | | | | * | *** | 175 | 195 | 64 |
| 64 | CMV-V1800W/XR1-B | | | | | **** | 180 | 200 | 64 |
