| Prod Model: |
TJSUN 1673 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Compact Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CE,CCC,Solar Keymark,SRCC,SABS |

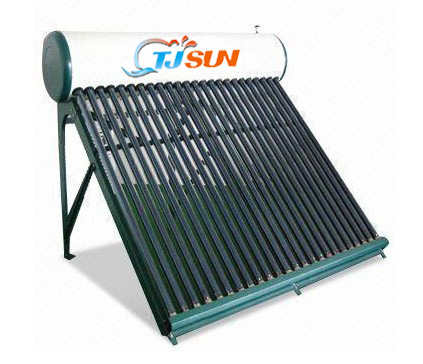

Product Description
Key Specification
This is an optimal system featuring moderate cost, full pressure, 100% hot water availability, and convenient and easy installation.
Features:
Lots of pressurized hot water
The water in the tank is at full supply pressure, and an internal or external gas or electric booster provides hot water at all times
Stable and reliable system
There is no water in the evacuated tubes, so there is no fouling, no breaking due to freezing, and the collector can safely work at very low temperatures.
Advanced coating technology
Using a interference coating technology, the evacuated tubes feature higher heat absorptance and lower emittance.
Anti-corrosive inner tank
Made of SUS 304 food-grade stainless steel using automatic argon-arc welding, the inner tank has excellent resistance to corrosion.
Specifications:
1) Inner tank material: SUS304-2B Food grade with 0.4mm thickness.
2) Oute tank material: Galvanized steel plate with 0.4mm thickness.
3) Frame material: Galvanized steel plate with 1.5mm thickness
4) Material of heating preservation: 55mm Polyurethane.
5) Vacuum tube dimensions: 47mm*1500mm/58mm*1800mm/58mm*2100mm
6) Water tank capacity: 100L-300L
7) Pressure: 0.6MPa
8) Heat preservation: 72hrs
9) Hail resistance: 25mm
Jiaxing Tjsun New Energy Co., Ltd., is a high & new technology company which is specialized in manufacturing solar energy products, especially the solar water heaters, with ten years' experience in this line. Tjsun is a global company focused on providing simple and effective solutions for families and businesses concerned about the effects of climate change and rising energy costs. Tjsun solar thermal systems are widely used in both residential and commercial applications to provide hot water, space heating, industrial hot water and even air-conditioning. In 2013, TJSUN Energy spent 200000000RMB to build a production line for Foam glass, Insulation material for Petrochemical and commercial construction use.
Tjsun has a high reputation with the strategy of technological products, normative management, international standard and star-class service. Jiaxing TJSUN New Energy Co., Ltd. Has won quite a good market share due to excellent quality and competitive price. In the coming years, Jiaxing tjsun New Energy Co., Ltd. Would like to cooperate with the customers from all over the world and make more people share the benefits which the solar energy brings.
