| Prod Model: |
JPS-EF-300L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Circulation Type: |
Direct / Open Loop (Active) |
| Connection Type: |
Direct-Plug |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Unpressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CE |

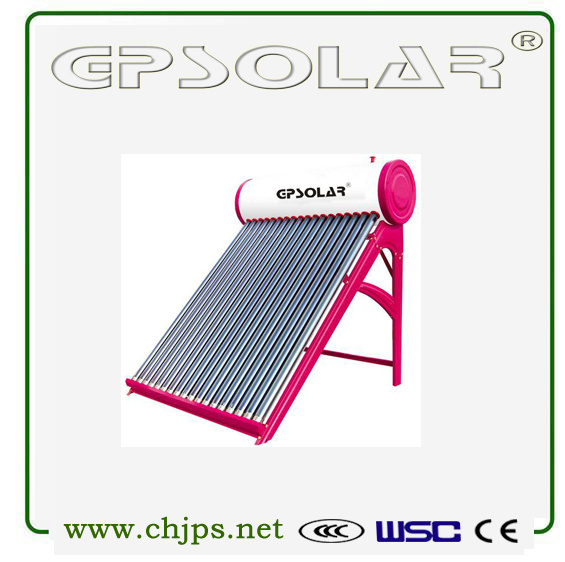

Product Description
Product Description
1. Vacuum tubes:
* Hail proof: Hail resistance 20-30mm
* Guarantee on vacuum tubes: 3 years
* Vacuum tube size: ø 58X1800mm, ø 47X1500mm
* Thickness: 2.5-3mm
* Grade: Normal/Three target
* Heat preservation: 72 hours
* Seal: Silicone rubber polymer
* Absorption rate: ≥ 0.95± 0.02
* Emission rate: ≤ 0.20± 0.02
* Vacuum tightness: P≤ 5.0*0.0001PA
* Idle sunning property paramerers: Y=220-260. /KW
* Avetage heat loss coefficient: Ult=0.6-0.7W(. )
* It means the temperature in the water tank is rang from 50 to 100 degree.
2. Tank:
* Inner tank, thickness: 0.40mm, material: SUS304-2B stainless steel
* Outer tank thickness: 0.40mm, galvanized sheet pianting
* Insulation layer: 55-65mm as you want. Computerized pressurizing and foaming of polyurethane.
3. Frame:
* Material: Galvanized sheet or stainess steel
* Thickness: 1.2mm
* Paint wind resistant: ≤ 30m/s
* Guarantee on system: 5 years
* If you want to know more details, please send us mail, we will be glad to help, thanks!
|
Type&specification |
JPS-EF-47/1500-16C |
JPS-EF-47/1500-18C |
JPS-EF-47/1500-20C |
JPS-FF-58/1800-16C |
JPS-FF-58/1800-18C |
JPS-FF-58/1800-20C |
|
Numbers of vacuum tubes |
16 |
18 |
20 |
16 |
18 |
20 |
|
Glass tube material |
borosilicate glass 3.3 |
|
Material selective absorber layer |
SS-C/Cu | Cu SS-ALN(H)/SS-ALN(L)/ALN |
Glass tube
(ext./int./wall thickness)(mm) |
47/37/1.6 |
47/37/1.6 |
47/37/1.6 |
58/47/1.6 |
58/47/1.6 |
58/47/1.6 |
|
Glass tube length(mm) |
1500 |
1500 |
1500 |
1800 |
1800 |
1800 |
|
Distance between two tubes(mm) |
70 |
70 |
70 |
76 |
76 |
76 |
|
Volume(liters) |
90 |
101 |
112 |
128 |
144 |
159 |
|
Gross Weight(kg) |
29 |
31 |
32 |
39 |
42 |
45 |
Package Dimensions(LxWxD)
(mm) |
1310x450x490 |
1450x450x490 |
1590x450x490 |
1400x490x530 |
1550x490x530 |
1700x490x530 |
|
QTY in20GP/40GP/40HC(sets) |
54/115/133 |
41/89/101 |
37/81/93 |
37/77/83 |
35/75/79 |
35/65/71 |
