| Prod Model: |
GH12864-2501 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Gh12864-2501 |
| Construction: |
Cog |
| Display Type: |
Stn |
| DOT Matrix: |
128*64 |
| Controller: |
St7565r |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Counting Module |
| Type: |
Graphic |
| Response Time: |
5ms |
| Display Technology: |
COG |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Non-Customized |
| Touch Screen Type: |
Without |
| Viewing Angle: |
12:00 or 6:00 |
Product Description

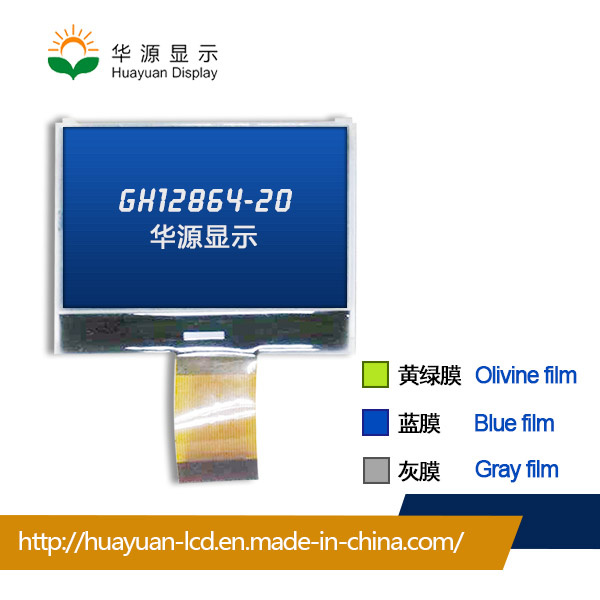

12864 COG LCD display for handhold equipment
The Module Datesheet
Model:GH12864-2501
ConstructionCOG
Display TypeSTN
Operating Voltage (VDD)3.3V,5V
Backlight Voltage(VBL)3.3V,5V
Operating Temperature (degree Celsius)-20~70
Storage Temperature (degree Celsius)-30~80
Viewing Direction6:00
Dot Matrix128*64
Viewing Area48.00*36.00
Active Area44.77*30.05
Outline Dimension54.00*45.00*5.50MAX
ControllerST7565R
BacklightLED,White
Packaging & Delivery
Packaging Details: in an anti-statics bag packed in carton or according to the customer's requirement
Delivery Detail: 7 days for sample and 25-30 days for mass production
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| NC | NC | NC | NC | VLCD | V+ | V- | B- | B+ | VSS |
| 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| VDD | BM1 | BM0 | D7 | D6 | D5 | D4 | D3 | D2 | D1 |
| 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 |
| D0 | WR1 | WR0 | CD | RST | CS0 | NC | NC | NC | NC |
