| Prod Model: |
TJSUN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
Product Description

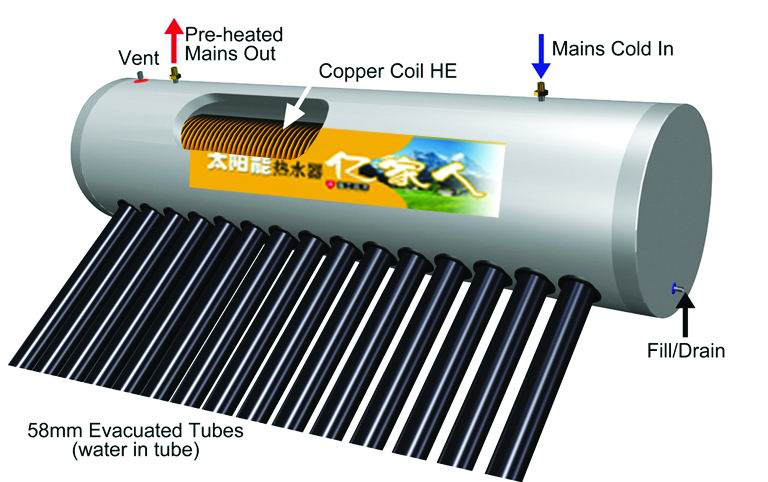

Thermosyphon solar water heater
Features:
Main tank is non-pressure, Inter copper coil can bear 6~8bar work pressure.
When cold water flows through the coil, it absorbs heat from the water inside the solar collector tank, so the solar collector tank is a thermal store.
Output water temperature is stable, so it is very comfortable and safe to use. It is very popular in torrid zone and warm area, such as Asia, Africa and etc.
Material:
1. Inner tank: SUS304 2B (food grade) -0.5mm thickness.
2. Outer tank: SUS304 2B -0.4mm /Painted steel -0.4mm
3. Frame: Stainless steel -1.2mm / Aluminum alloy - 2.0mm/ Painted steel-1.5mm
4. Reflector: Aluminum
5. Vacuum tube: QB-AL-L/AL-47/1500/58/1800
6. Insulation: Polyurethane foam is 55-60mm.
7. Copper coil diameter 12mm, thickness 1.0 mm, length 25~35mm
Question 1: Which parts are consist of a solar water heater system?
Answer:Mian parts are:Insulation Tank,Solar Collector,Mounting Frame
Accessories: Safety valve,PT valve,male connectors
Selected supporting: Electrical Heater,5L Feeder Tank,Solar Controller
Question 2: What's the difference between with and without 5L feeder tank(water cylinder)?
Answer: The feeder tank is installed in top of main tank,there's float valve inside,and could adjust the water feeding and stop feeding,is a quite good design.
Question 3:If the customers are not familiar with installation,how to do it?
Answer: Don't worry about this.There's Installation Video,also Instruction Manual to show the process of installing,very clear for every step.
Question 4:Which other services your factory can do?
Answer:TJSUN is not only a solar water heater manufacturer,but also a technology supporter for energy savings.The factory had installed lots of projects for different areas,accumulated much experience.Whole type products can meet different requires,cold or warm conditions,high or cheap price.
Question 5: What's the warranty and after-sale services?
Answer:The main parts of non-pressure solar products are have a 5 years warranty,the design life is more than 15years.
The accessories parts are from 2-3years warranty.
For after sale service,if it's caused by quality problem,TJSUN agrees to replace the broken part in free charge.
If technology support for project,TJSUN engineer can come for technical guidance.
Jiaxing Tjsun New Energy Co., Ltd., is a high & new technology company which is specialized in manufacturing solar energy products, especially the solar water heaters, with ten years' experience in this line. Tjsun is a global company focused on providing simple and effective solutions for families and businesses concerned about the effects of climate change and rising energy costs. Tjsun solar thermal systems are widely used in both residential and commercial applications to provide hot water, space heating, industrial hot water and even air-conditioning. In 2013, TJSUN Energy spent 200000000RMB to build a production line for Foam glass, Insulation material for Petrochemical and commercial construction use.
Tjsun has a high reputation with the strategy of technological products, normative management, international standard and star-class service. Jiaxing TJSUN New Energy Co., Ltd. Has won quite a good market share due to excellent quality and competitive price. In the coming years, Jiaxing tjsun New Energy Co., Ltd. Would like to cooperate with the customers from all over the world and make more people share the benefits which the solar energy brings.
