| Prod Model: |
J 800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cirtcuit: |
Class H |
| Output Number: |
4 |
| Voltage: |
AC 220V |
| Function: |
Post Amplifier |
| Tube Type: |
Tube Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
2.0 |
| Conductive Mode: |
Class H |
Product Description

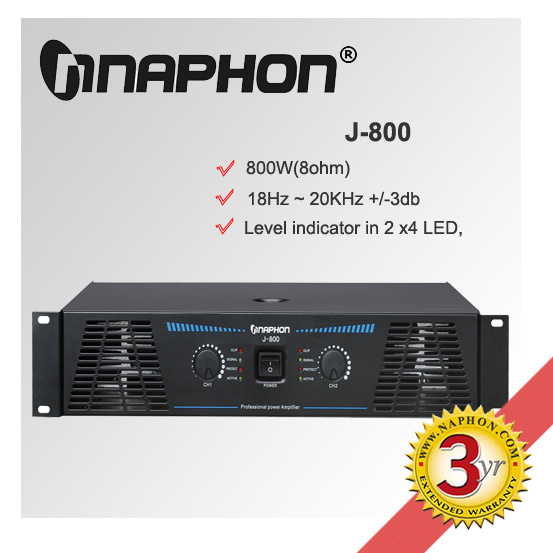

Power amplifier
*Features includes: Two Channels, it can be bridged;
*Time-delay starting protection and protections for the overloading, over Temperature, short circuit, load etc;
*Level indicator in 2 x4 LED, status indicator for power, bridge and protection;
*2 fans for cooling;
*Power/signal and clip indicate;
*Protected by DC safeguard output, overloading, startup boot-strap short test.
|
Model |
J-150 |
J-250 |
J-400 |
J-550 |
J-800 |
|
(8Ω)/ Stereo |
2x150W |
2x250W |
2x375W |
2x550W |
2x800W |
|
(4Ω)/Stereo |
2x250W |
2x450W |
2x750W |
2x1200W |
2x1600W |
|
(8Ω)/Bridged |
300W |
500W |
700W |
1100W |
1600W |
|
Output Circuit Type |
Class H |
|
Frequency Response |
18Hz ~ 20KHz:≤+0/-0.05dB |
|
S/N Ratio |
≥100dB |
|
T.H.D |
≤0.05% |
|
Damping Factor |
≤150 |
|
Power Supply |
AC110V-240V 50~60Hz |
|
Net Weight(KGS) |
13.50 |
14.50 |
22.00 |
24.20 |
25.50 |
|
Dimension(MM) |
490x450x90 |
NAPHON MUSIC, based in Shenzhen, is a company specialized in the design and production of quality professional audio equipments. Its package of products are widely used in music venues, theatres, houses of worship, sporting events and much more.
NAPHON MUSIC has a major commitment to produce the most accurate & reliable product available. It maintains an extensive research and development division which is constantly looking for ways to improve the performance, value and reliability of products, introduced the Surface Mounting Technology, proudly launched its new MC series of DSP Mixers and SA series of Amplifiers. With a stringent quality control in production, it can arrive at an ever higher standard of quality for full range of products. NAPHON MUSIC had got ISO9001: 2000 International Standard Approval and CE approval.
NAPHON MUSIC always focus on tomorrow, embracing severe construction standards and the on-going aim to provide the best sound and most outstanding customer service you've ever experienced.
