| Prod Model: |
PA1.1 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
| Usage: |
Hi-Fi |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Output Number: |
8 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
Product Description
PA series had some pursuits for faster of reaction speed higher of damping factor, and greater function, higher level of protect function,production technology of SMD excellent component. Amplifier of.
pa series also can endure 2Ω stereo load, bridge 4Ω load, suit for drive line array speaker system.
Multiple ound protection features such as over-current,over-voltage,over-temperature,overload,DC, and VHF and so on

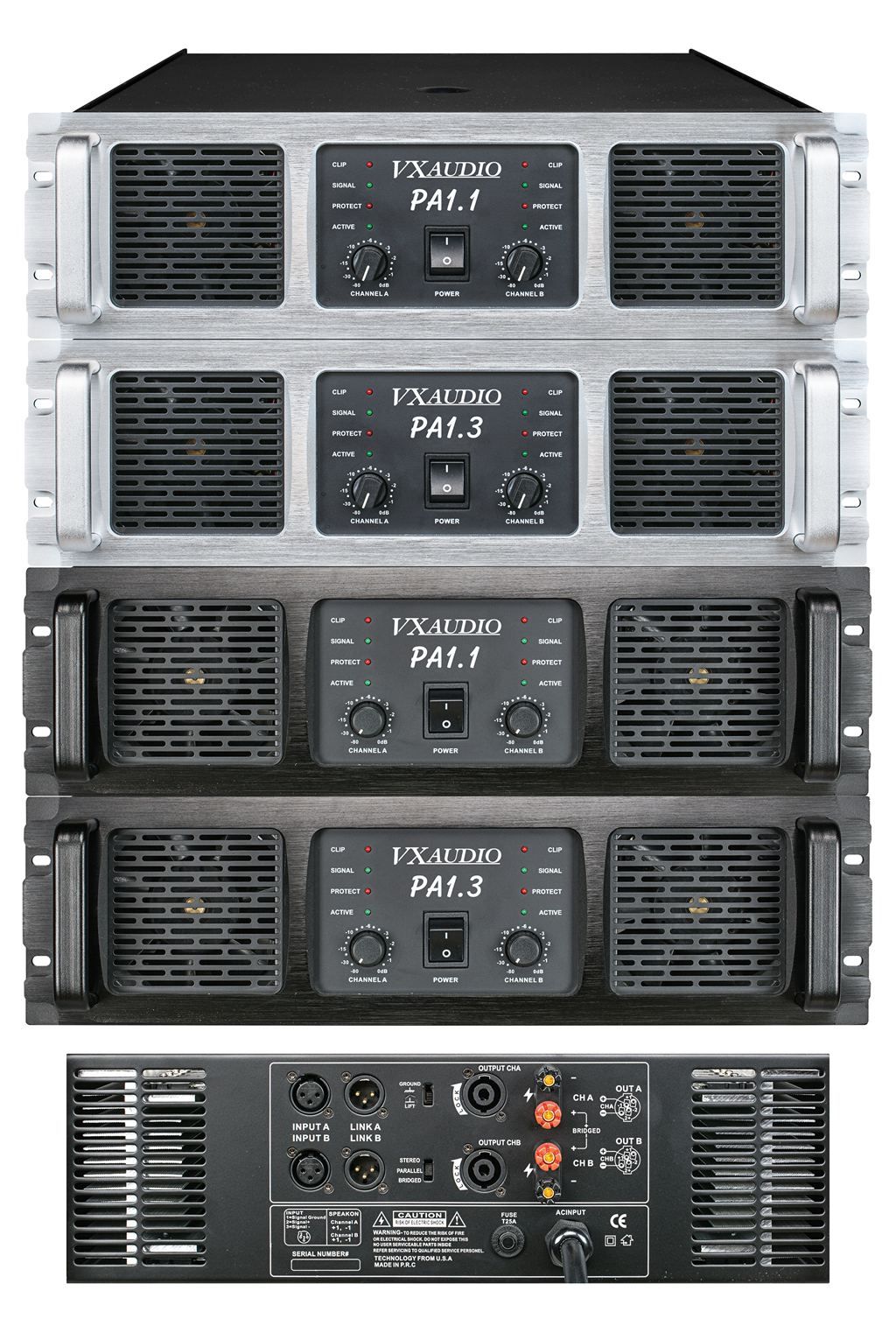

| Model | PA1.1 |
| Output 8 Ohms 1KHz0.1% THD stereo Mode: | 2 x 1150W |
| Output 4 Ohms 1KHz0.1% THD stereo Mode: | 2 x 1800W |
| Output 2 Ohms 1KHz0.1% THD stereo Mode: | 2 x 2300W |
| Output 8 Ohms 1KHz0.1% THD Bridged Mode: | 2 x 3500W |
| Output 4 Ohms 1KHz0.1% THD Bridged Mode: | 2 x 4600W |
| Signal / noise: | 120dB |
| Slew Rate: | 80v/μ s |
| Damping factor: | 680: 1 |
| Fuse: | T25A |
| Power Supply: | 110V-240V as Per Customer Request |
| Frequency Response: | ± 0.1dB, 20Hz -20kHz |
| THD: | ≤ 0.01% rated power @ 8Ω 1kHz |
| IMD: | ≤ 0.01% @ 8Ω at rate output |
| Input Impedance: | 30k Ohm Balanced or15k Ohm Unbalanced |
| Crosstalk at Rated Output 8 Ohms 1kHz: | ≤ -70dB |
| Imput CMRR: | ≤ -75dB |
| Indicators: | Signal, Protect, Active, Clip |
| Net Weight: | 41kgs |
| Dimensions: (mm) | 655 x 585 x 200 |
Enping PuSheng Electronic Co., Ltd is professional of high professional power amplifier and signal processors.
With a team of engineers we are development of high quality products to keep up with the current market's demand. We have provided OEM service for many of our domestic and foreign companies. Our products have been sold to our clients in Asia, South American and So on.
No matter you are wholesaler, distributer or a rentals company, PuSheng have a wide selection of professional qudio products to suit your market's demand professional audio products.
PuSheng purpose is best quality, best price, best after-sales service, with you to create a brilliant future and becoming one of our faithful co-operative partners.
