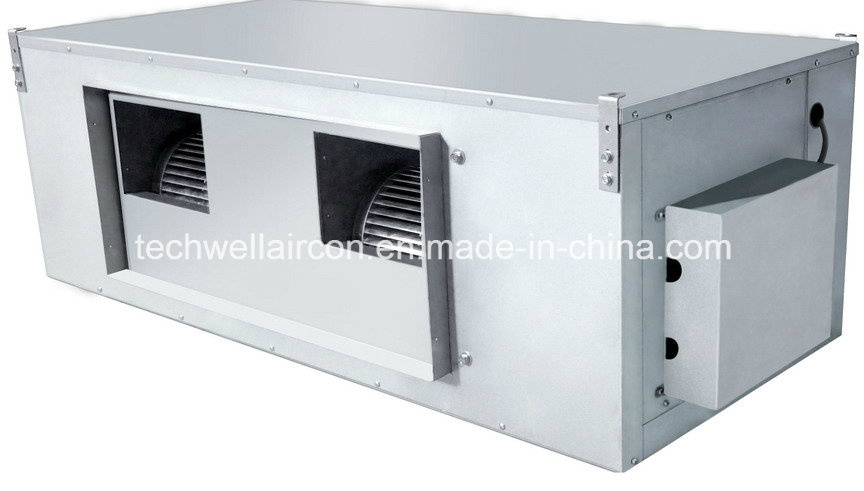

CE Esp 120PA R410A Duct Type Air Conditioner
| Price: |
US $ 800-1100/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CTH-xxHR1 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Central Air Conditioners |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| Cooling/Heating: |
Cooling/Heating |
| Certification: |
CE |
| Capacity: |
48000-60000 BTU |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
Product Description
Duct type air conditioner Static Pressure: 120PA
Capacity: 48000BTU-60000BTU
Gas type: R410A
Power supply: 220V/50Hz
Approval: CE, RoHS
Specification| Model | CTH-48HR1 | CTH-60HR1 |
| Indoor power supply | V/Ph/Hz | 220~240V/1Ph/50Hz | 220~240V/1Ph/50Hz |
| Cooling | Capacity | Btu/h | 48000 | 60000 |
| KW | 14 | 16 |
| Input | W | 500 | 500 |
| Rated current | A | 2.27 | 2.27 |
| EER | W/W | 2.55 | 2.37 |
| Heating | Capacity | Btu/h | 52800 | 66000 |
| KW | 15.4 | 17.6 |
| Input | W | 500 | 500 |
| Rated current | A | 2.3 | 2.3 |
| COP | W/W | 2.98 | 2.82 |
| Indoor air flow(Hi/Med/Lo) | m 3 /h | 3210/2930/2650 | 3210/2930/2650 |
| ESP |
| 135 | 135 |
| Indoor noise level(Hi/Med/Lo) |
| 53/49/43 | 53/49/43 |
| Indoor unit | Net dimension (W*H*D) | mm | 1200×364×625 | 1200×364×625 |
| Net packing (W*H*D) | mm | 1260×490×640 | 1260×490×640 |
| Net/Gross weight | kg | 60/64 | 60/64 |
| Refrigerant type |
| R410A | R410A |
| Refrigerant piping | Liquid side/Gas side | mm | Φ9.52/Φ19.05 | Φ9.52/Φ19.05 |
| Drainage pipe | mm | 30 | 30 |
| Connection wiring | Power Supply |
| From outdoor unit | From outdoor unit |
| Indoor power wiring | mm 2 | 1 | 1 |
| Signal wiring | mm 2 | 0.75 | 0.75 |
| Controller |
| Wired controller(remote controller for option) |
| Operation temp | °C | 16 ~ 32 | 16 ~32 |
| Ambient temp | °C | -7~ 43 | -7~ 43 |
| Application area | m 2 | 55~95 | 60~105 |
| Stuffing Quantity(20'/40'/40'HQ) | set | 75/165/168 | 75/165/168 |
