CE Cert R410A Cassette Type Air Conditioner
| Price: |
US $ 200-900/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
CCA-xxHR1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Central Air Conditioners |
| Usage: |
Room |
| Indoor Machine Noise: |
24-35dB |
| Cooling/Heating: |
Cooling/Heating |
| Certification: |
CE |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
| Capacity: |
18000BTU-48000BTU |
Product Description

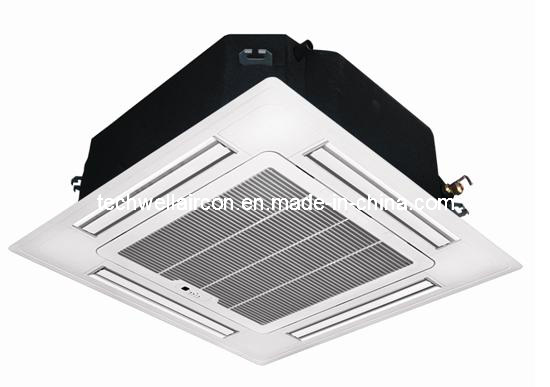

Cassette type air conditioner indoor unit
Capacity: 18000BTU -48000BTU
Gas type: R410A
Power supply: 220V/50Hz, 380V/3pH/50Hz
Approval: CE, RoHS
| Model | CCB-18HR1 | CCA-24HR1 | CCA-36HR1 | CCA-48HR1 | CCA-60HR1 |
| Power supply | V-Ph-Hz | 220~240V/1Ph/50Hz | 220~240V/1Ph/50Hz | 220~240V/1Ph/50Hz | 380 ~ 415V /3Ph/50Hz | 380 ~ 415V /3Ph/50Hz |
| Cooling | Capacity | Btu/h | 18000 | 24000 | 36000 | 48000 | 60000 |
| kW | 7.1 | 10.5 | 14 | 16 |
|
| Input | W | 85 | 120 | 160 | 180 | 180 |
| Rated current | A | 0.37 | 0.55 | 0.75 | 0.8 | 0.8 |
| EER | W/W | 2.94 | 2.95 | 2.88 | 2.80 | 2.76 |
| Heating | Capacity | Btu/h | 20000 | 26600 | 39500 | 52500 | 60000 |
| kW | 5.8 | 7.8 | 11.6 | 15.4 | 17.6 |
| Input | W | 85 | 120 | 160 | 180 | 180 |
| Rated current | A | 0.37 | 0.55 | 0.75 | 0.8 | 0.8 |
| COP | W/W | 3.18 | 3.21 | 3.23 | 2.91 | 2.94 |
| Indoor air flow (Hi/Mi/Lo) | m 3 /h | 700/580/480 | 1100/920/750 | 1600/1300/1100 | 1900/1550/1300 | 1900/1550/1300 |
| Indoor noise level(Hi/Mi/Lo) | dB(A) | 48/45/43 | 48/46/44 | 52/48/45 | 52/48/45 | 52/48/45 |
| Indoor unit | Dimension (W*H*D) | Body(mm) | 580×275×580 | 840×230×840 | 840×285×840 | 840×285×840 | 840×285×840 |
| Panel(mm) | 650×30×650 | 950×50×950 | 950×50×950 | 950×50×950 | 950×50×950 |
| Packing (W*H*D) | Body(mm) | 745×375×675 | 920×310×920 | 920×375×920 | 920×375×920 | 920×375×920 |
| Panel(mm) | 750×95×750 | 1030×105×1030 | 1030×105×1030 | 1030×105×1030 | 1030×105×1030 |
| Net/Gross weight | Body (Kg) | 25/27 | 28/32 | 31/35 | 31/35 | 31/35 |
| Panel (Kg) | 4/5 | 5/7 | 5/7 | 5/7 | 5/7 |
| Refrigerant type |
| R410A | R410A | R410A | R410A | R410A |
| Refrigerant piping | Liquid side/ Gas side | mm | Φ6.35/Φ12.7 | Φ6.35/Φ12.7 | Φ9.52/Φ19.05 | Φ9.52/Φ19.05 | Φ9.52/Φ19.05 |
| Drainage pipe | mm | 25 | 25 | 25 | 25 | 25 |
| Connection wiring | Power wiring | mm 2 | 1.5 | 2.5 | 4 | 1.5 | 1.5 |
| Signal wiring | mm 2 | 1.5 | 0.75 | 0.75 | 0.75 | 0.75 |
| Controller |
| Standard for remote controller (wired controller for option) |
| Operation temp | °C | 16 ~ 32 | 16 ~ 32 | 16 ~ 32 | 16 ~ 32 | 16 ~ 32 |
| Ambient temp | °C | -7 ~ 43 | -7 ~ 43 | -7 ~ 43 | -7 ~ 43 | -7 ~ 43 |
| Application area | m 2 | 20-35 | 28-50 | 40-70 | 55~95 | 60~105 |
| Stuffing Quantity | 20'/40'/40'HQ | 120/240/270 | 75/155/170 | 65/130/150 | 65/130/150 | 65/130/150 |
