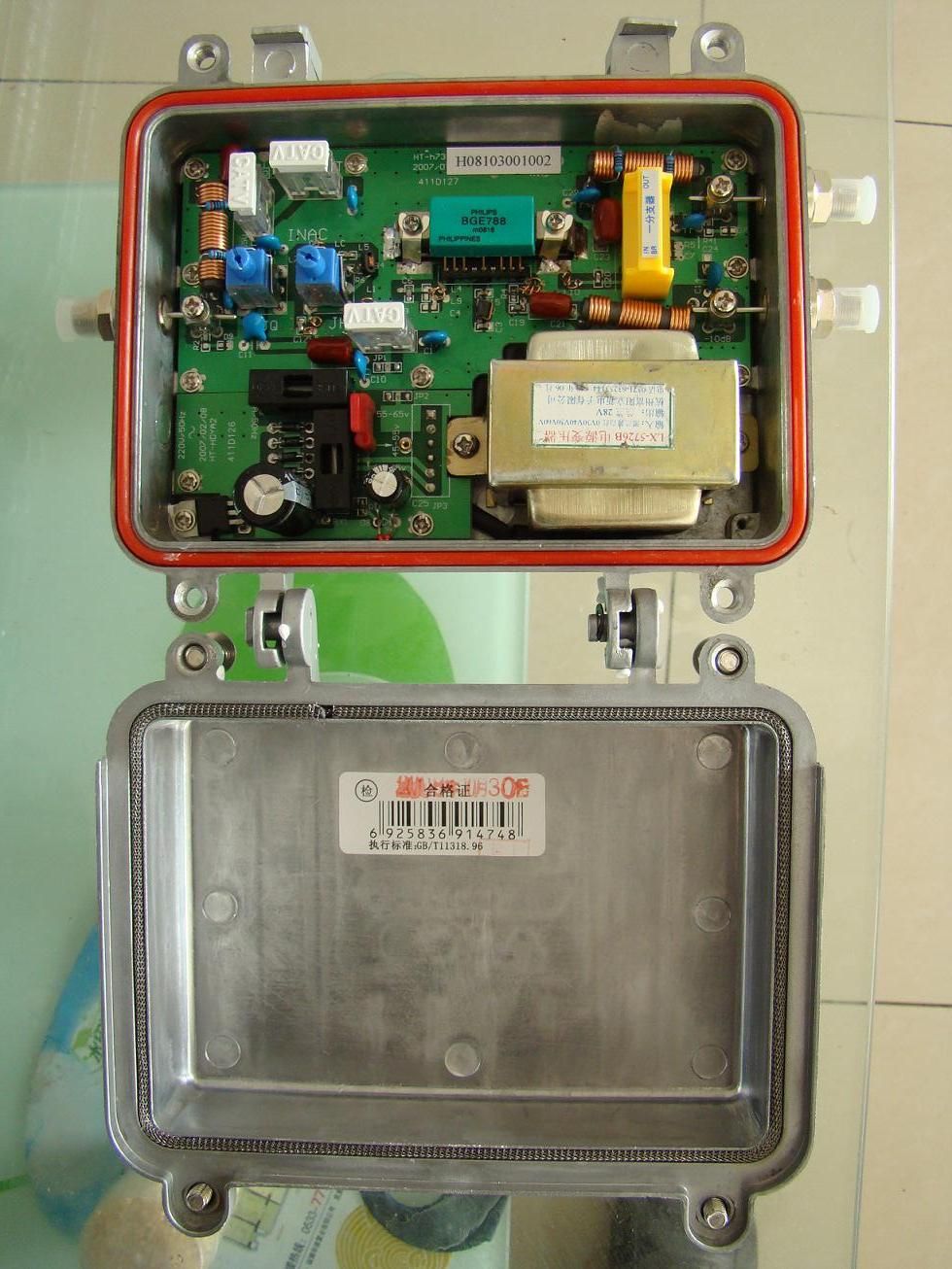

CATV Subscriber Amplifier (GW-H501)

Name: CATV Subscriber Amplifier (GW-H501)
Brand: ec-portal.com
SKU: 619051152
Availability: InStock
Rating: 4.4 (101 reviews)

Price:	Negotiable
Min Order:	1

Send Inquiry

Showroom Product Company Profile

Prod Model:	GW-H501

Product Description

Used in distribution network
High-quality aluminum case
Adjustable attenuator and equalizer
Two output, plug-in tap/ splitter
High reliability linearity power supply
220V/60V input voltage

Bandwidth	MHz	47-750	47-862
Gain	dB	30
Nominal input level	dBuV	72
Nominal output level	dBuV	102
Flatness	dB	±0.75
Noise figure	dB	≤ 10
Return losses	dB	≥ 14
Gain adjustable range	dB	0-20
Slope adjustable range	dB	0-20
CTB	dB	≥ 58 (*1)	≥ 58(*2)
CSO	dB	≥ 57(*1)	≥ 57 (*2)
Voltage	Vac	36-65 ,220±10%
Operating temperature	°C	-25~+55
Dimensions	mm	160×110×60

Zibo Langzhuo Trade Co., Ltd engaged in designing, researching, manufacturing and marketing CATV HFC network equipments and now it is one of the biggest enterprises in the field of CATV equipment in China.
We main provide 1310nm and 1550nm Optical Transmitter, optical receiver,
1550nm EDFA, CATV Amplifier, hybrid module.

Our business has been based on the principles of customer satisfaction.We value our customers as our partners.We constantly try to improve our products and services to be more efficient and economical.

Our products are exported to about 10 countries in 3 different continents.
