| Prod Model: |

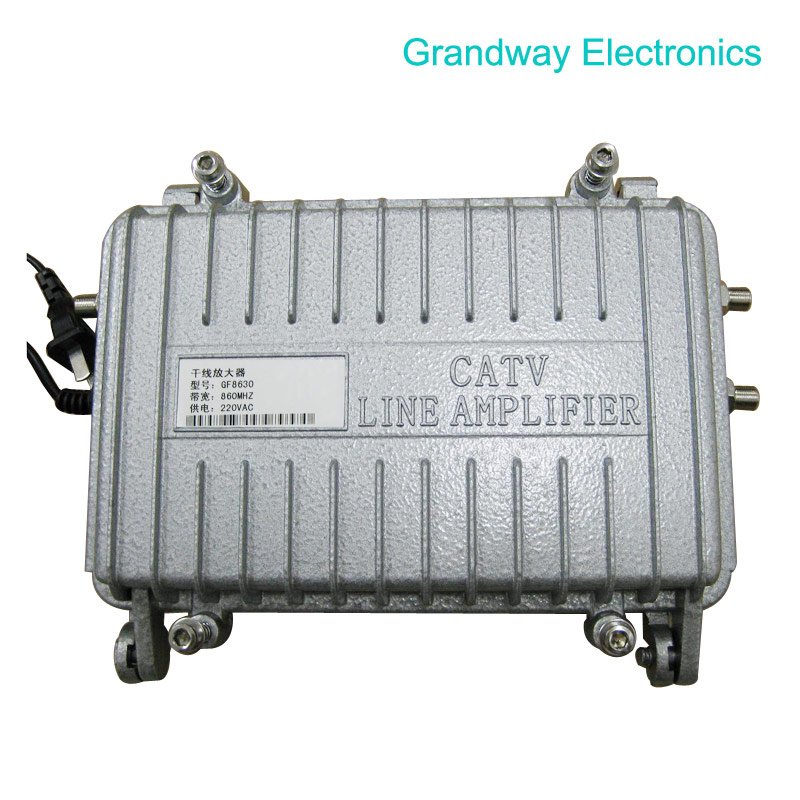

GW-G200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Specifications
Bandwidth MHz: 47-750 47-862
Gain dB: 30
Nominal input level dBuV: 72
Nominal output level dBuV: 102
Flatness dB: 0.75
Noise figure dB ≤ 10
Return losses dB ≥ 16
Gain adjustable range dB: 0-20
Slope adjustable range dB: 0-20
CTB dB: 62 (1) 61 (2)
CSO dB: 62(1) 60 (2)
Voltage VAC: 36-65 220 10%
Operating temperature: -25~+55
Dimensions mm: 215 135 60.
|
Type Parameter |
G200-750
|
G200-860
|
H500-750
|
H500-860
|
Bandwidth (MHz)
|
47-750
|
47-860
|
47-750
|
47-860
|
Nominal Gain (dB)
|
30
|
30
|
30
|
30
|
In-Band Flatness (dB)
|
± 0.5
|
± 0.75
|
± 0.75
|
± 0.75
|
Nominal Input Level (dB m V)
|
72
|
Nominal Output Level (dB m V)
|
102
|
Gain Adjustable Range (dB)
|
0-20
|
Slop Adjustable Range (dB)
|
0-20
|
Noise Figure (dB)
|
≤ 10
|
CTB (dB)
|
≥ 62 (note1)
|
≥ 61 (note2)
|
≥ 58 (note1)
|
≥ 58 (note2)
|
CSO(dB)
|
≥ 62 (note1)
|
≥ 60 (note2)
|
≥ 57 (note1)
|
≥ 57 (note2)
|
Return Loss (dB)
|
≥ 16
|
≥ 14
|
≥ 14
|
≥ 12
|
Voltage (Vac)
|
36-65/220 ± 20%
|
Zibo Langzhuo Trade Co., Ltd engaged in designing, researching, manufacturing and marketing CATV HFC network equipments and now it is one of the biggest enterprises in the field of CATV equipment in China.
We main provide 1310nm and 1550nm Optical Transmitter, optical receiver,
1550nm EDFA, CATV Amplifier, hybrid module.
Our business has been based on the principles of customer satisfaction.We value our customers as our partners.We constantly try to improve our products and services to be more efficient and economical.
Our products are exported to about 10 countries in 3 different continents.
