| Prod Model: |
GW-EA5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

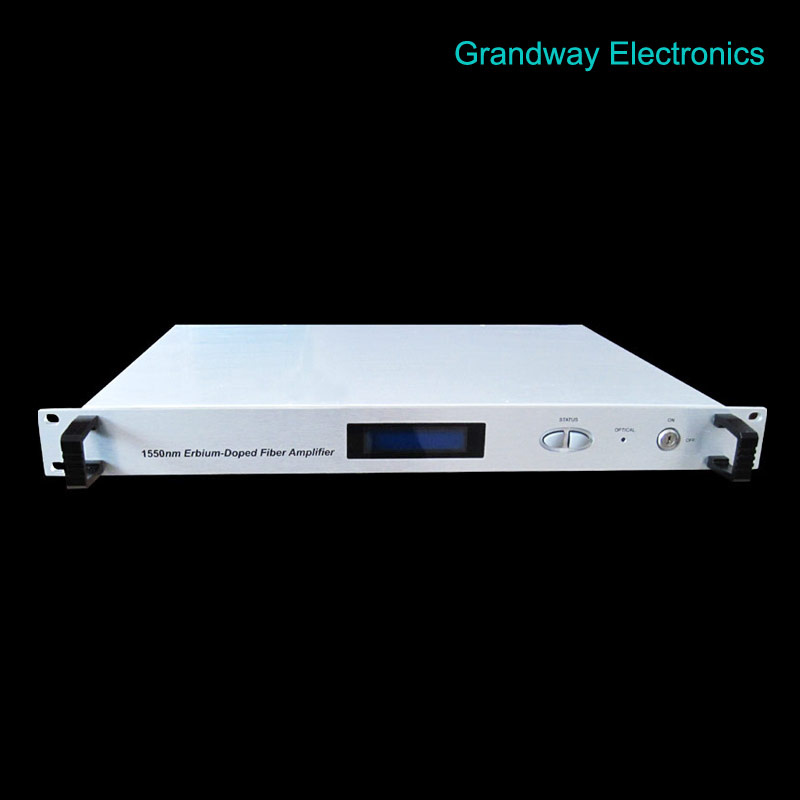

Product Description
Features
Adopting high-quality Pump Laser diode and Erbium-Doped optical fiber
Advanced automatic power control (APC) and automatic temperature
Control (ATC) circuit to ensure the performance
Low noise figure and high gain; Input & output optical isolator
Output power: 13-23dBm; 1U 19 standard case with VFD in front panel
RS232/RJ45 communication interface optional; High efficiency switch
Power supply
RS232/485 interface optional for remote monitoring and control.
Specification
Optical Parameters
Optical Wavelength nm 1540-1560 Optical Output Power dBm 13-23
Output Stability dB +-0.5 Optical Input Power dBm -4~+7
Noise figure dB <4.5 (0dBm input) Polarization sensitivity dB <0.2
Optical return losses dB >40Connector FC/APC or SC/APC
CTB dB ≥ 80 CSO dB ≥ 75 Electrical/Environmental/Mechanical
Power Supply VAC 160~265 Operating Temperature -10~+50
Dimensions mm 485*350*45.
Nominal optical output
|
(dBm)
|
≥ 13
|
≥ 14
|
≥ 15
|
≥ 16
|
≥ 17
|
≥ 18
|
≥ 19
|
≥ 20
|
≥ 21
|
≥ 22
|
≥ 23
|
≥ 24
|
≥ 25
|
≥ 26
|
≥ 27
|
(mW)
|
≥ 20
|
≥ 25
|
≥ 32
|
≥ 40
|
≥ 50
|
≥ 63
|
≥ 80
|
≥ 100
|
≥ 125
|
≥ 160
|
≥ 200
|
≥ 250
|
≥ 320
|
≥ 400
|
≥ 500
|
Optical
input
|
Range (dBm )
|
-12 ~ +10
|
@ Nominal output
(dBm)
|
2
|
3
|
Wavelength (nm)
|
1530 --1560
|
Output Stability (dB)
|
< ± 0.2
|
Noise Figure
|
0dBm Input (dB)
|
≤ 4.5
|
≤ 5.0
|
≤ 5.3
|
+6dBm Input(dB)
|
≤ 5.5
|
≤ 6.0
|
≤ 6.5
|
Polarization sensitivity (dB)
|
< 0.2
|
Optical return losses (dB)
|
> 40
|
Connector
|
FC/APC . SC/APC
|
Interface
|
RS232. RS485
|
Power Consumption (W)
|
< 40
|
Operating Voltage (V)
|
220V (110 --240V) |
Operating temperature
|
0 --65
|
Storage temperature
|
-40 -- +85 |
Dimensions (mm)
|
483 × 385 × 44 (19 " × 15" × 1.75" )
|
