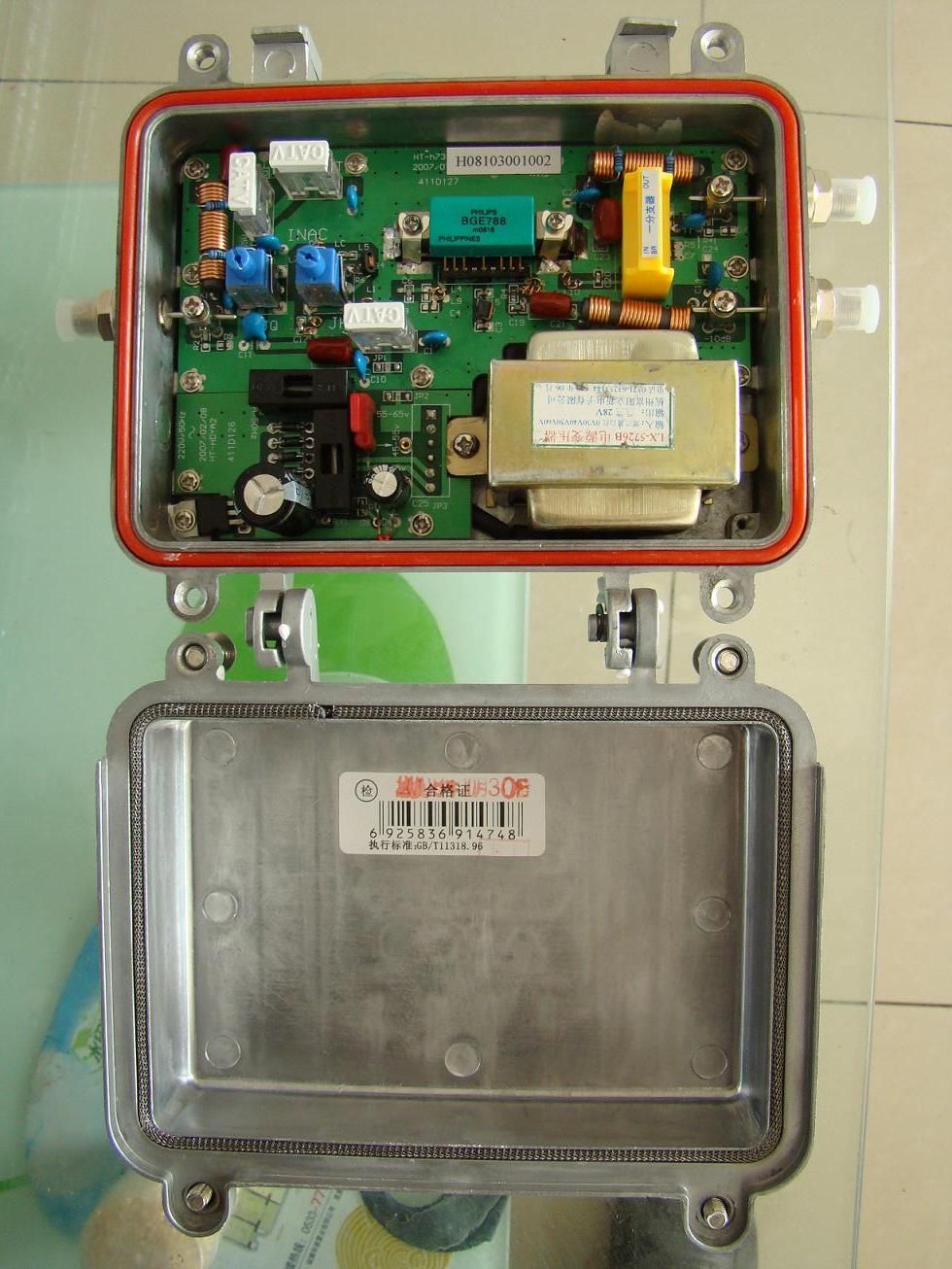

CATV Subscriber Amplifier -860m

CATV Subscriber Amplifier -860m
Price: Negotiable
Trade Terms: By Air Or Express
Min Order: 1Carton
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Frequency bandwidth: 5-862MHz, 5-750MHz;

* High-quality diplex filter, three split points optional;

* Two output ports in forward path;

* Changeable tap/splitter;

* Adjustable attenuator and equalizer in forward path and reverse path;

* All of the bi-directional ports are capable of passing power into or out of the unit;

* High efficiency and wide range switching power supply;

* Spark-Arrestor at RF output port to offer surge protection.
Bandwidth

MHz

47-750

47-862

Gain

dB

30

Nominal input level

dBuV

72

Nominal output level

dBuV

102

Flatness

dB

±0.75

Noise figure

dB

≤ 10

Return losses

dB

≥ 14

Gain adjustable range

dB

0-20

Slope adjustable range

dB

0-20

CTB

dB

≥ 58 (*1)

≥ 58(*2)

CSO

dB

≥ 57(*1)

≥ 57 (*2)

Voltage

Vac

36-65 ,220±10%

Operating temperature

°C

-25~+55

Dimensions

mm

160×110×60

Zibo Langzhuo Trade Co., Ltd engaged in designing, researching, manufacturing and marketing CATV HFC network equipments and now it is one of the biggest enterprises in the field of CATV equipment in China.
We main provide 1310nm and 1550nm Optical Transmitter, optical receiver,
1550nm EDFA, CATV Amplifier, hybrid module.

Our business has been based on the principles of customer satisfaction.We value our customers as our partners.We constantly try to improve our products and services to be more efficient and economical.

Our products are exported to about 10 countries in 3 different continents.
