| Prod Model: |
BS 212 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 2 X12 "Subwoofer: |
Three-Cavity Bandpass Technology |
| Optional Bi-AMP Or Single-AMP Drive: |
4 Rubber Pads |
| Noise: |
<102dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Disco Hall |
| Certification: |
CE |
| Monitor: |
LCD Screen |
| THD: |
<0.005% |

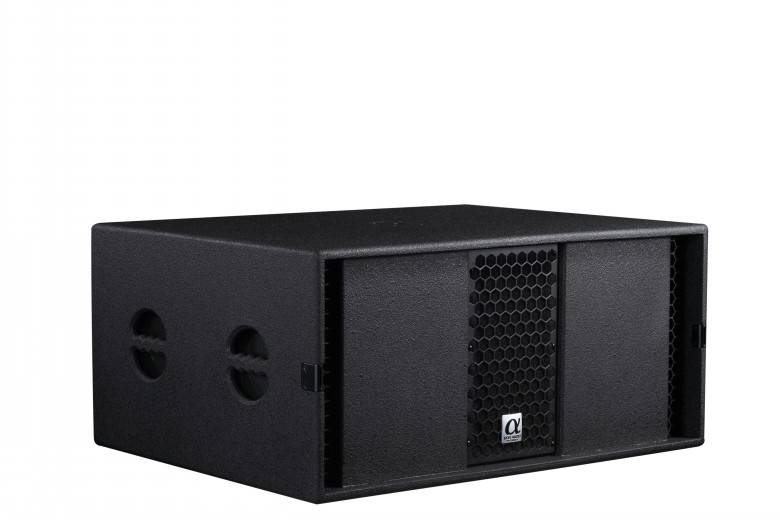

Product Description
BS212 is a subwoofer which uses 3 cavity bandpass design.loading 2 x12 "low frequency drive unit, each low frequency drive have independent cavity.Two paper cone work together in front of the third open cavity, which greatly improve the system efficiency,and effectively reduce the distortion. BS212 as other sound system of supplement,as ultra low frequency array, it only could be stacked on the ground routinely. BS212 uses multilayer birch plywood to make the enclosure, with elastic coating or environmental protection coating shell. The front panel use metal mesh enclosure stick acoustic soft sponge as the speaker's protection. M20 supporting base for other full range speaker both on top and side plate. Side plate combine 4 handles and wheel plate buckles,also dispose with 16 pulley mounting screw in rear panel. Terminal is disposed with NL4 parallel connection, and the switch botton for bi-amp or single-amp drive. When more than one BS212 stacked together, there are 4 rubber pads at the bottom of each speaker could be embedded to the groove of others, in order to aviod sliding.
Characteristic:
.2 x12 "subwoofer system
.three-cavity bandpass technology
.enormous power, excellent transient response
.extremely low distortion, ensuring ultra low frequency clarity
.optional bi-amp or single-amp drive
.optional wheel plate transportation
.stackable
Applications:
.Disco, dance halls, clubs
.Nightclubs, karaoke rooms
.Large government and enterprise activities
.Mobile and fixed installation install
Specifications:
System
Frequency Response 50 Hz - 126 Hz @(±3 dB)
Sensitivity 103 dB SPL (1W @ 1m)
Nominal Impedance 4 ohms
Power Handing 800 watts, 1600 watts, 3200 watts
Maximum SPL 128 dB
Crossover Frequency 120 Hz
Drivers
Low Frequency 2 x 12(in) 380 mm dia, 2x75 mm(3in) voice coil dia
Physical
Enclosure Construction 18 mm birch plywood with structured
Finish Wear-resistant textured black paint
Other Aluminiumpoli mount socket
Input Connectors NL4 x 2
Dimensions H x W x D 380 mmx 830 mmx 645 mm
Net Weight 28 kg
