Backup Camera System with Reversing Camera

Backup Camera System with Reversing Camera
Price: US $ 140-195/Piece
Trade Terms: FOB,CIF,FCA
Min Order: 1/Piece
Pay Type: T/T,Western Union
Prod Model: DF-5270112
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chip: CCD
Definition: 420TVL
Interface: Air Plug
Waterproof Grade: IP69k
Size: 5inch
Free Operating Voltage: 8-32V

Product Description

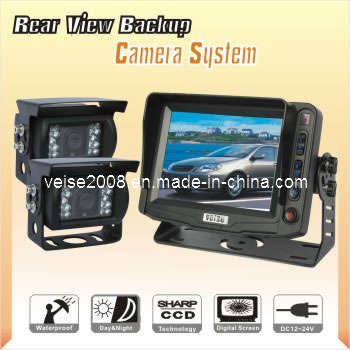

Backup camera system with reversing camera

Backup camera system with reversing camera for Mining digger, Mining Vehicle, Excavator, dump truck, rock breaker, transporter, undergrounddigging loader, Slag Machine,Shovel Truck
5 Inch Digital Screen Monitor Support Two-channel Camera Video Audio Inputs, Automatically Adjust Brightness to Display and Button by According Environment, DC14+87V(Td400mS) 5pulses Load Dump, 300cd/m2 Brightness, OSD Menu Separately Set Each Camera Mirror/Normal image,Trigger Priority of Camera image Display,Reversing Image Delay Time 0-10s
Aluminum Shell Camera IP69K Waterproof and 10G Shockproof, 18 pcs IR LEDs for Picture Support in the Dark
System Free Operating Voltage DC8~32V



Rear View Waterproof IR Color Camera(MODEL:DF-4103*2)
Image Type: 1/3 Color CCD
Horizontal Resolution:420TV Lines
Effective pixel:NTSC:510(H)X492(V);PAL:500(H)X582(V)
Usable Illumination : 0Lux ( Built in 18pcs IR  for Picture Support in the Dark)
Free viewing angle: 130°
Waterproof: IP69K
Shockproof: 10G
Video Output:1.0Vp-p75Ω
Power supply:DC12V from Reversing Monitor
Dimensions: 77(L) x 77(W) x 68(H)mm

5 Inch Digital Screen TFT LCD Color Monitor(Model:SP-527)
Digital Screen TFT LCD Color Monitor with Removable Sun Visor
OSD MENU Separately Set Each Camera Trigger Priority
OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-10"
OSD MENU Separately Set Each Camera Mirror/Normal image
Automatically Adjust Brightness to Display and Button by According Environment
Color System:PAL/NTSC (AUTO)
Display Resolution: 640RGB(H) X 480(V) dot
Accepts up to 2 Cameras Video Inputs:1.0Vp-p75Ω
Wide view angle(CR:10):(up/ down): 50/70 (left/right): 70/70
Contrast ratio: 500:1
Back-light : Single LED 300cd/m2 Brightness
Operating temperature: -20ºC to +70ºC
Storage temperature: -30ºC to +80ºC
Load Dump: DC14+87V(Td400mS) 5pulses
Free Operating Voltage DC8-32V
External dimensions:L*W*T(151X113X50)mm(without mounting)
Weight Approx: 270g

Product Accessories
U- Support Bracket\Angle Adjustment Screw\Removable Sun Visor\Electrical Connecting Cable\15m cable\ Auto cigarette lighter\Remote Control\User's Manual
Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.

Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.

Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.

Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.

Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.

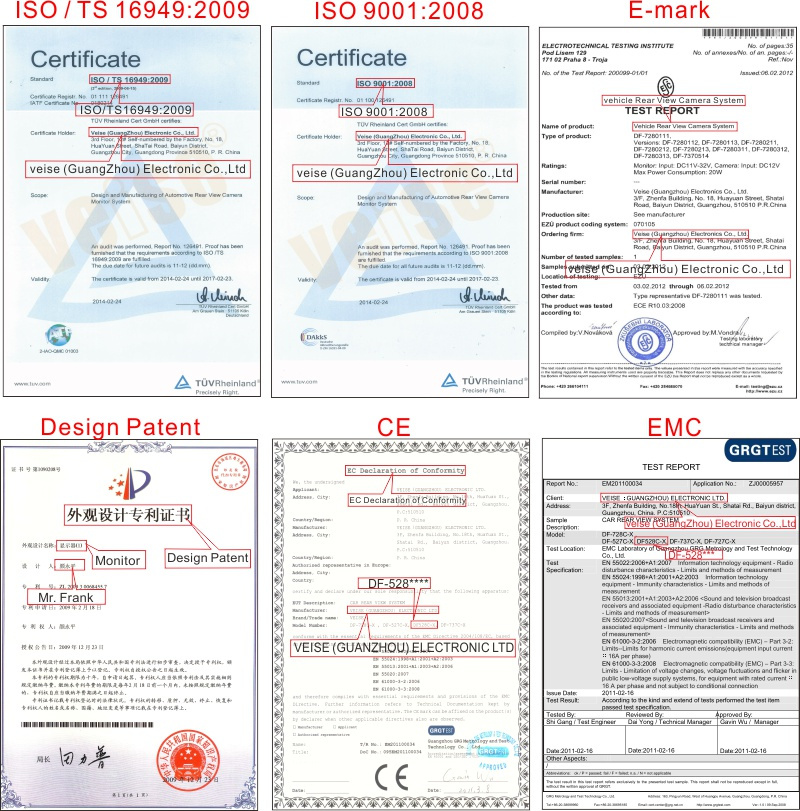

Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
