| Prod Model: |
G215HVN01 V0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Auo |
| Size: |
21.5 Inch |
| Resolution: |
1920(X3) X 1080 |
| Width: Heigth: |
16:9 |
| Light Source: |
LED |
| Brightness: |
300CD/M2 |
| Contrast Ratio: |
5000:1 |
| Interface: |
Lvds (2 CH, 8-Bit) |
| Temperature Range: |
0 to +50 °c |
| View Angle: |
89/89/89/89 (Typ.) |
| Type: |
Color |
| Viewing Angle: |
MVA |
| Display Technology: |
TFT |
| Usage: |
Ideal for Industrial Uses |
Product Description

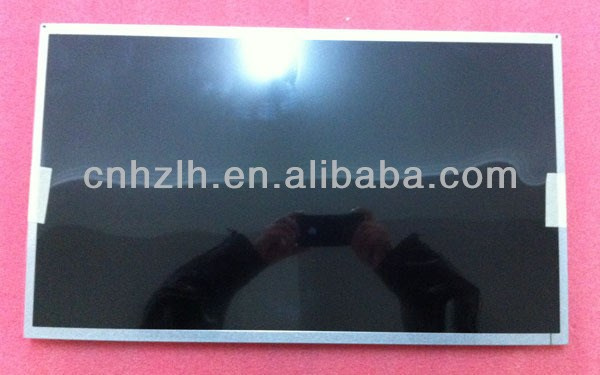

AUO industrial MVA 21.5 inch TFT LCD display 1920X1080 G215HVN01 V0 Features:
1)FHD 1920X1080 resolution;
2)Surface: Anti-glare;
3)Full view angle;
4)WLED backlight, LED driver integrated;
5)Wide screen;
6)Original guarantee;
7)Competitive prices;
8)Offer 12 months of warranty;
9)Original technology support;
10)Backlight life is more than 50k hours.
| Module number | G215HVN01.0 |
| Type | a-Si TFT LCD |
| Brand | AUO |
| Display size | 21.5 inch |
| Resolution | 1920X1080 |
| Width:Height | 16:9 |
| Pixel Pitch | 0.24825x0.24825 |
| Active Area | 476.64×268.11(mm) |
| View angle | R/L/U/D 89/89/89/89 (Deg) |
| Mode | AMVA3, Normally Black, transmissive |
| LCD Surface | Anti-glossy, Hard coating(3H) |
| Number of Colors | 16.7M(8 bit) |
| Electrical Interface | LVDS(2ch, 8 bit) |
| Brightness | 300 cd/m2 |
| Contrast ratio | 5000:1 |
| Panel Weight | 2.30KGs(Max.) |
| Outline dimension | 495.6x292.2x13.2mm(Max.) |
| Backlight | WLED |
| Power Consumption | 23W |
| Supply Voltage (V) | 5.0V(Typ.) |
| Response time | 10/6(ms) |
| Backlight lifetime | 50K hrs(Min.) |
| Operate temperature | 0-60 (°C) |
| Storage temperature | -20-60 (°C) |
Product features |
-- WLED backlight & Led driver integrated;
-- Full view angle;
-- Long lifetime more than 50K hours at least;
-- Wide screen;
-- Anti-glossy surface;
-- High color gamut. |
Application |
Special for industrial grade use.
|
Package: AUO original package; 9PCS/carton; Carton size: 564X273X373 mm; Weight: 20.3KGs.
