| Prod Model: |
G173HW01 V0 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Auo |
| Size: |
17.3 |
| Resolution: |
1920*1080(FHD) |
| Brightness: |
400CD/M2 |
| Contrast Ratio: |
600:1 |
| Interface: |
Dual Channel Lvds |
| Backlight: |
Wled |
| Operating Temperature: |
0 to+70(°c) |
| Width:Height: |
16:9 |
| View Angle: |
R/L/U/D 80/80/60/80 |
| Type: |
Color |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| Usage: |
Ideal for Industrial Uses |
Product Description

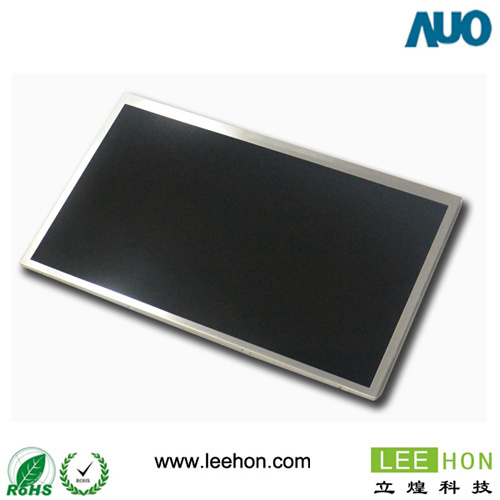

AUO industrial 17.3 inch TFT LCD display with FHD 1920x1080 G173HW01 V0 Features:
1)FHD 1920x1080;
2)Wled backlight, LED driver integrated;
3)Wide view angle;
4)Backlight life is more than 50k hrs;
5)Wide screen;
6)High color gamut 72%;
7)Surface: Glare treatment;
8)Backlight replaceable;
9)Ideal for industrial use;
10)Original guaranteed;
11)Competitive prices;
12)Offer 12 months of warranty;
13)Original technology support.
Specification:
AUO industrial grade 17.3 inch TFT LCD (G173HW01 V0) data sheet:
Module number: G173HW01 V0;
Resolution: 1920x1080;
Pixel Pitch: 0.1989(H) x 0.1989 (mm);
Active Area: 381.888(H) x 214.812(V) (mm);
View angle R/L/U/D: 80/80/60/80(Deg);
Mode: TN;
LCD Surface: Glare, 3H;
Number of Colors: 16.7M;
Electrical Interface: Dual channels LVDS;
Brightness: 400 CD/m2;
Contrast ratio: 600: 1;
Outline dimension: 403(W) x 240(H) x 12.5(D) (mm);
Gross weight: 1080 (Max. );
Backlight: WLED;
LED Life (hrs. ): 50K(Min. );
Power Consumption (W): 17.0W(Typ. );
Supply Voltage (V): 3.3V;
Response time: 40 (ms);
Operate temperature: 0-70 (° C);
Storage temperature: -20-70 (° C);
Package: AUO original package; 10PCS/carton; Carton size: 524x321x360 mm
Hangzhou LEEHON Technology is one of the main agents of AUO/TianMa/CMI/Mitsubishi TFT- LCD module in China mainland, founded in 2002, the products vary from 2.2 to 24 inches mainly, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc., and our features are:
1. Original quality guarantee.
2. Superior After-Sale service;
3. The most competitive prices here can provide;
4. Small order quantity accepted.
5. Offer 12 months of warranty;
6. Experienced staff can help you to solve your problem anytime.
With wide range, superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia. And our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
