DL300-SD-A/DL300-SD-AD/DL300-SD-AI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sample Precision: |
10 Bits |
| Signal To Noise Ratio: |
> 70 Db (Weighted) |
| Bandwidth: |
6.0MHz |
| K Factor (2t Pulse): |
< 1% |
| Sdi Amplitude: |
800± 25 Mv |
| Sdi Jitter (1 KHz): |
< 350 PS |
| Sdi Jitter (10 Hz): |
< 500 PS |
| Differential Gain: |
< 1% |
| Condition: |
New |
| Function: |
Signal Transmission Equipment |
| Type: |
TV Front-end Equipment |
Product Description

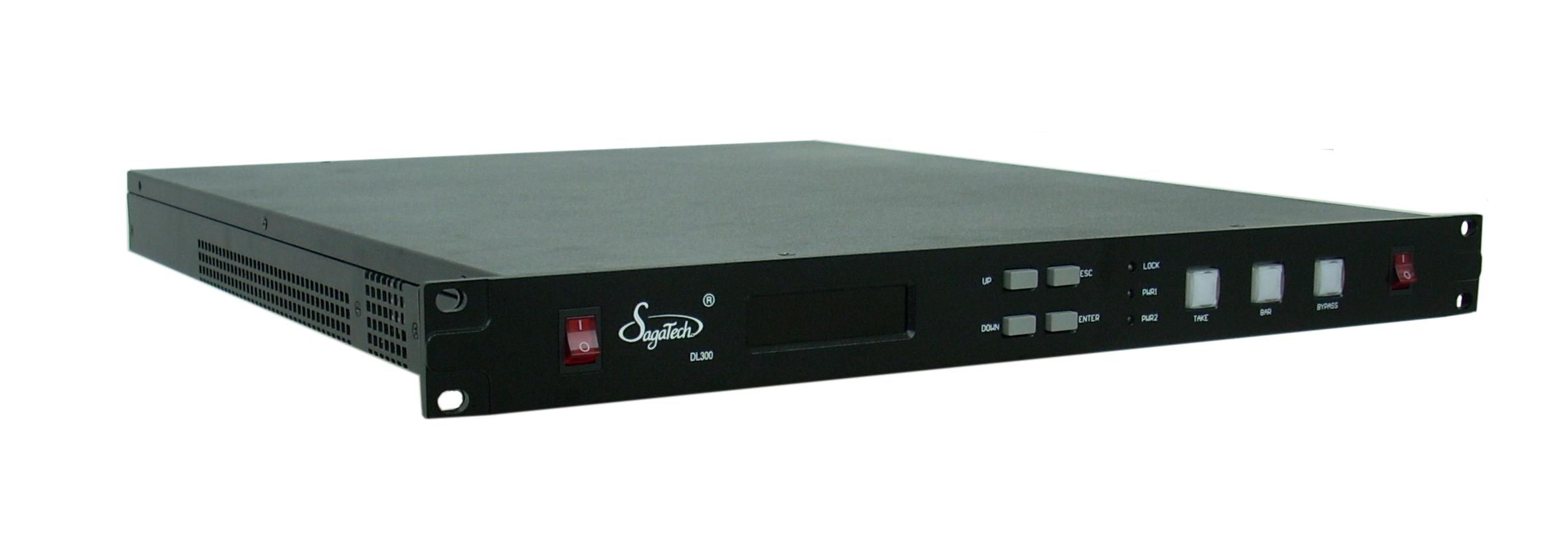

DL300-SD Audio/Video Delay Line utilizing the world's leading technology as full digital encoding and decoding, DL300 is mainly applied to assurance of program broadcasting by safety, especially for the safety of live television program. The delay of the program can be realized through the usage of the product, i. E., for any accident, one may switch to other menus to ensure a safe broadcasting. The product is widely applied to various occasions such as broadcasting departments of TV stations and studios, satellite rebroadcast, along with live broadcasting. Users may enjoy its full functionalities with stable performance and convenient updating & maintenance.
Description:
Adjustable delay line, from 0 frame to 120 seconds per frame.
Delay broadcasting for analog composite, SDI and SDI
Embedded audio signal supportable.
Provision of functions for embedded, de-embedded, time base collection and frame synchronization.
With independent advance or delay the adjustment function of audio signal.
2 channels SD SDI and 2 channels composite analog signal input.
2 channels SD SDI signal independently output preview before and after processing signal.
Supports SD SDI backup signal input, can be use the button to switch to the backup signal output.
Through the button on the video screen to delete and filled Black Burst or Color Bar.
Supports two levels of BI-SYNC BB and TRI-SYNC signal as external Gen-lock.
Ordering information:
DL300-SD-A Series Support analog signal processing
DL300-SD-AD Series Support digital signal processing
DL300-SD-AI Series Support for digital and analog signal processing
Note: The above series products are all have a delay of 30 seconds, 60 seconds, 120 seconds.
|
Video Index |
Sample Precision |
10 Bits |
|
Sample Frequency |
27MHz |
|
Bandwidth |
6.0MHz |
|
Signal to Noise Ratio |
> 70 dB (weighted) |
|
SDI Amplitude |
800± 25 MV |
|
SDI Jitter (1 kHz) |
< 350 PS |
|
SDI Jitter (10 Hz) |
< 500 PS |
|
K Factor (2T Pulse) |
< 1% |
|
Audio Index |
A/D, D/A Digitizing |
24Bits |
|
Sample Frequency |
48KHz |
|
Frequency Response |
20Hz -20KHz |
|
THD+N |
0.03% (+4dBu) |
|
Left/Right Channel Isolation |
> 70 dB |
|
Signal to Noise Ratio |
> 90 dB |
|
Physical Features & Environmental Requirements |
AC Input |
220V/50Hz |
|
Power Consumption |
40W |
|
Operating Temperature |
0-40C (32-104F) |
|
Moisture |
5-95% (non condensing) |
|
Dimension (W×H×D) |
427mm×44mm × 502mm |
|
Weight |
7.5Kg |
