MPEG-2 Transport Stream Audio Agc (TS-AGC) Audio Asi Amplitude Limit Audio Processor
| Price: |
US $ 8000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,D/P,Paypal |
| Prod Model: |
TS-AGC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Function: |
Signal Transmission Equipment |
| Type: |
CATV（Cable Television）Equipment |
Product Description

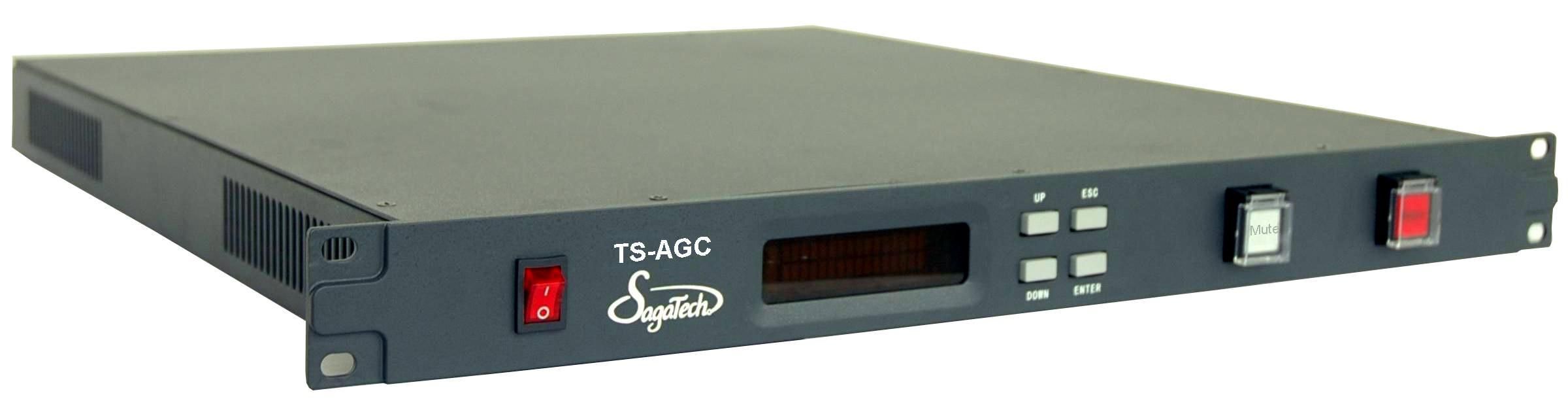

TS-AGC is a controller which can gain control automatically the different audio signals of MPEG-2 transport stream, from various programs. With our own patented technology, it can gain control the audio signals directly, that means it changes the traditional method--the digital signals should at first be decoded to adjust and then be encoded to restore. The signals processed by TS-AGC will meet the ISO/IEC 13818/11172, DVB-C ETSI/EN 300 429. What is more, TS-AGC can preview the programs conveniently because it provides two-output. Stable and reliable performance of the product enable it can be widely used in broadcasting network.
Description:
Gain control the audio signal directly ensure the quality of the original signal;
Gain control 8 audio signals of 1 frequency point at the same time automatically or manually.;
188 or 204 packets I/O of the TS supportable;
2 ASI signals output;
Push-button audio muting;
Push-button bypass and power bypass;
RS232 or RS485 for remote control operation;
With Network Console;
Can process audio signals more using cascade way;
Button are covered to avoid operational errors unexpected.
|
Conform to the Standard |
GB/T 17975.1-2000 |
GB/T 17975.1-2000 |
|
ISO/IEC 13818/11172 |
ISO/IEC 13818/11172 |
|
DVB-C ETSI/EN 300 429 |
DVB-C ETSI/EN 300 429 |
|
GY/T 146-2000 |
GY/T 146-2000 |
|
GY/T 148-2000 |
GY/T 148-2000 |
|
GY/Z 174-2001 |
GY/Z 174-2001 |
|
Physical Features & Environmental Requirements |
Input Connector |
BNC |
|
Output Connector |
BNC *2 |
|
AC Input |
220V/50Hz |
|
Power Consumption |
20W |
|
Operating Temperature |
0~40C (32~104 F) |
|
Moisture |
5 ~95% (non condensing ) |
|
Dimension(W×H×D) |
427mm × 44mm × 325mm |
|
Weight |
4 Kg |
