| Prod Model: |
DL300-HD-H/DL300-HD-HS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sample Precision: |
10 Bits |
| Signal To Noise Ratio: |
> 70 Db (Weighted) |
| Bandwidth: |
6.0MHz |
| K Factor (2t Pulse): |
< 1% |
| Sdi Amplitude: |
800± 25 Mv |
| Sdi Jitter (1 KHz): |
< 350 PS |
| Sdi Jitter (10 Hz): |
< 500 PS |
| Differential Gain: |
< 1% |
| Condition: |
New |
| Function: |
Signal Transmission Equipment |
| Type: |
TV Front-end Equipment |
Product Description

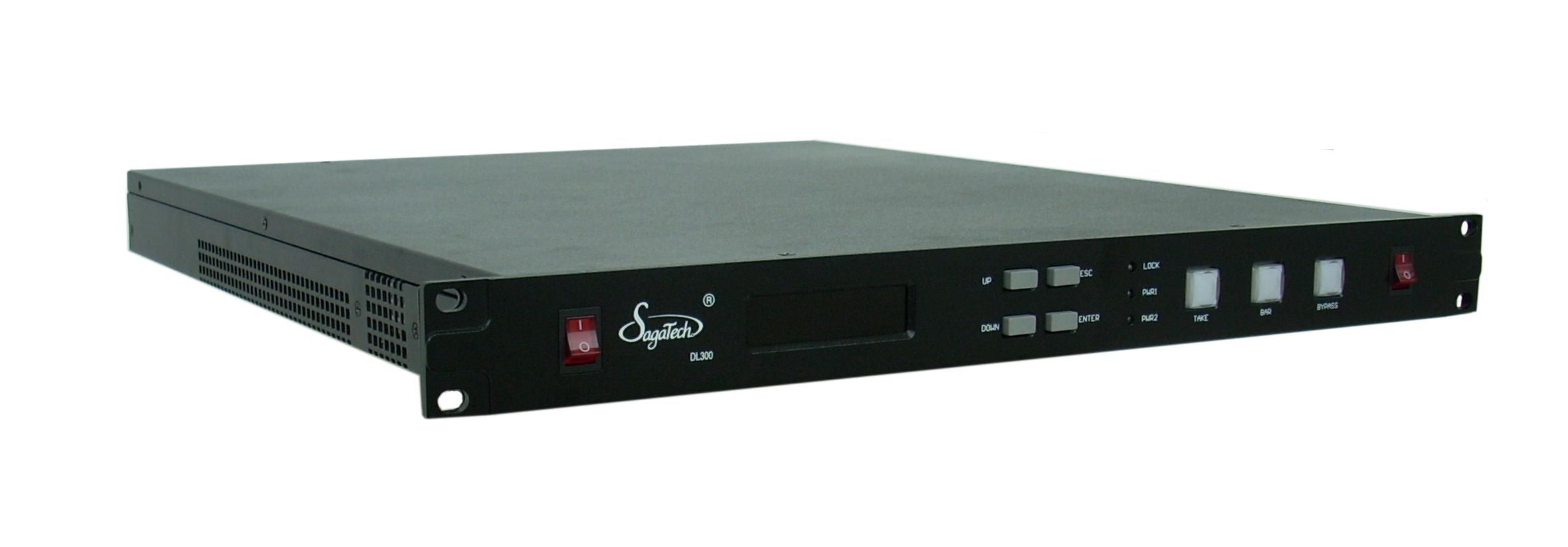

DL300-HD Video/Audio Delay Line utilizing the world's leading technology as full digital encoding and decoding, DL300 is mainly applied to assurance of program broadcasting by safety, especially for the safety of live television program. The delay of the program can be realized through the usage of the product, i. E., for any accident, one may switch to other menus to ensure a safe broadcasting. The product is widely applied to various occasions such as broadcasting departments of TV stations and studios, satellite rebroadcast, along with live broadcasting. Users may enjoy its full functionalities with stable performance and convenient updating & maintenance.
Description:
Supports1080 i50, 1080 i60, 1080 psf24, 720 p50, 720 p60, 576 I and 480 I standard video signal;
Adjustable HD-SDI signal delay line from 0 frame to 180 seconds per frame;
Adjustable SD-SDI signal delay line from 0 frame to 1080 seconds per frame;
Supports two levels of BI-SYNC BB and TRI-SYNC signal as external Gen-lock;
Supports HD-SDI embedded digital signal embedded DOLBY compressed audio or PCM audio embedded signal input and output;
Built-in HD/SD digital signal frame synchronization/time base collection function, as well as signal embedded or de-embedded function (not including digital compression DOLBY audio decoding function;
Provides 8 channels independent AES/EBD embedded and de-embedded function;
2 channels HD/SD SDI signal input;
2 channels HD SDI signal and 2 channels SD SDI signal independently output preview before and after processing signal;
With independent advance or delay the adjustment function of audio signal;
Supports HD/SD backup signal input;
With function of power off bypassing;
Provides RJ45 network port, support the SNMP protocol;
Double power supply, double switch.
Ordering information:
DL300-HD-H Series Support hd signal processing
DL300-HD-HS Series Support hd and digital signal processing
Note: The above series products are all have a delay of 30 seconds, 60 seconds, 120 seconds, 180 seconds.
|
Video Index |
Sample Precision |
10 Bits |
|
Sample Frequency |
148.5MHz |
|
Bandwidth |
6.0MHz |
|
Signal to Noise Ratio |
> 70 dB (weighted) |
|
SDI Amplitude |
800± 25 MV |
|
SDI Jitter (1 kHz) |
< 350 PS |
|
SDI Jitter (10 Hz) |
< 500 PS |
|
K Factor (2T Pulse) |
< 1% |
|
Audio Index |
A/D, D/A Digitizing |
24Bits |
|
Sample Frequency |
48KHz |
|
Frequency Response |
20Hz -20KHz |
|
THD+N |
0.03% (+4dBu) |
|
Left/Right Channel Isolation |
> 70 dB |
|
Signal to Noise Ratio |
> 90 dB |
|
Physical Features & Environmental Requirements |
AC Input |
220V/50Hz |
|
Power Consumption |
40W |
|
Operating Temperature |
0-40C (32-104F) |
|
Moisture |
5-95% (non condensing) |
|
Dimension (W×H×D) |
427mm×44mm × 502mm |
|
Weight |
7.5 Kg |
