| Prod Model: |
SRX715 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Type: |
15inch, 2-Way Audio Speaker |
| Frequency Response: |
53Hz -- 20kHz |
| Dispersion (Hxv): |
75 X 50 |
| Handling Power: |
600watts (RMS) / 1200watts (Peak) |
| Certification: |
CCC |
| Application: |
Commercial |
| THD: |
<0.03% |
| Noise: |
<95dB |
Product Description

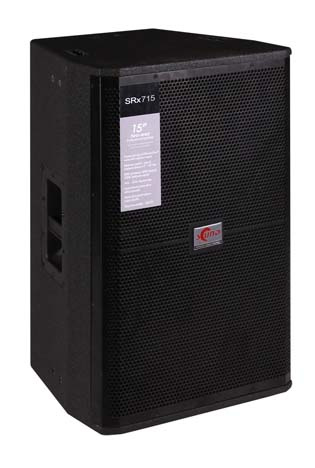

Audio Speaker SRX 715
The SRX 715 offers the highest level of performance available from a portable pole or tripod mountable speaker. Equipped with the high quality TDS' woofer, the SRX715 handles 800 watts while weighting only 22kgs. The SRX 715 makes a remarkable performance in liver performance, music playback or speech.
Features
Light-weight and high-power output.
Dual-angle pole socket for applications requiring tripod mounting.

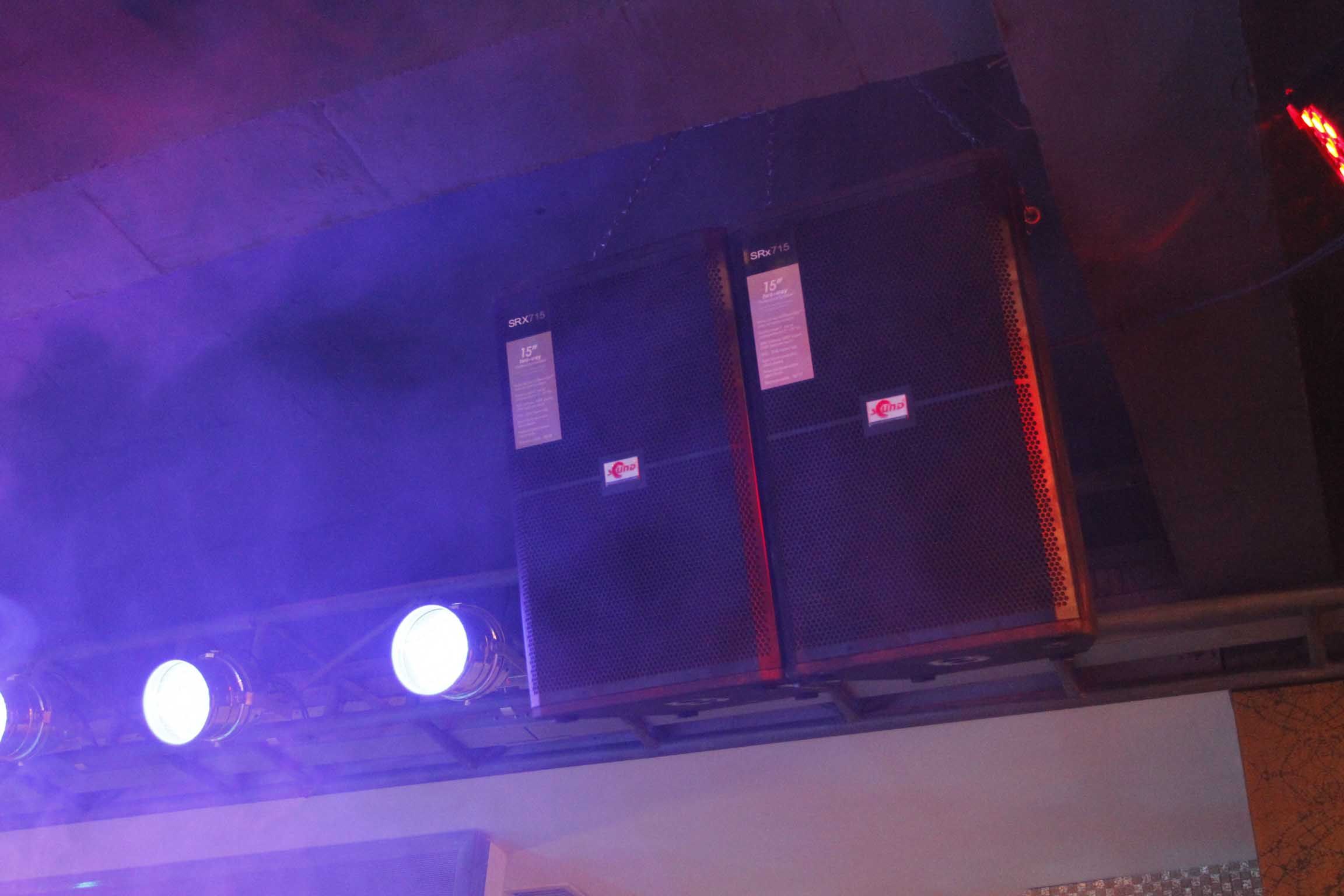

With five suspension points, very convenient for flying installation...
Applications
Live performance sound reinforcement.
Monitor usage.
Fixed installation in club, house workshop church.
|
System Type: |
15inch two-way passive speaker. |
|
Frequency Response: |
53Hz-20 kHz ± 3dB |
|
Sensitivity (1W/1M): |
96dB. |
|
Impedance: |
8ohm |
|
Rated Power: |
600W (AES), 2000W (PEAK). |
|
Dispersion: |
75° (H) X 50° (V) |
|
Drivers: |
LF driver 15' ' transducer (100mm) voice coil |
|
HF driver 1.5' ' exit (75mm) voice coil. |
|
Maximum SPL: |
131dB continuous, 137dB peak. |
|
Connectors: |
2 x Neutrik NL4. |
|
Dimensions: |
(W) 439mm x (H) 711mm x (D) 406mm |
|
Weight: |
22kg |
Guangzhou TDS PRO Audio Factory specialize in developing & manufacture PRO audio products.
From the establishment of our factory we always focus our attention on developing PRO audio products.We trust a good product must need very careful process in developing and manufacture.Thanks to our senior engineers and the sophisticated staff, we can offer the products which customers need.At the same time, we use the technical way to guarantee the products quality.We use CAD for cabinet design work, CNC machine to make the speaker cabinet, DASS & LMS for testing of loudspeaker, crossover checking and phase checking equipment etc.All those work help us to keep the same product quality.
In all business, product is important.But the related service is more important.In order to offer ideal service, we have professional staff for products checking, transportation arranging and also we have engineers who can go abroad to do technical support and after sales service.Our philosophy is customer to be first.And we also trust better service will help both customer and us.Through good service we can keep long and steady relation with our customers.
