| Prod Model: |
1231 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Commercial |
Product Description

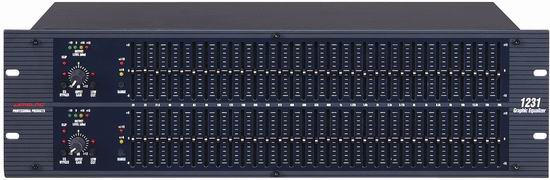

Dual 31-Band Graphic Equalizer
FEATURES
* Switchable boost/cut ranges of ± 6 or ± 15dB
* Electronically balanced/unbalanced inputs
* Servo balanced/unbalanced outputs
* RF filtered inputs and outputs
* XLR, Barrier Strip, and 1/4" TRS connectors
* -12dB/+12dB input gain range
* 18dB/octave 40Hz Bessel low-cut filter
* Chassis/signal ground lift capability
* Internal power supply transformer
* Power-off hardwire relay bypass with 2-second power-up delay
SPECIFICATIONS
INPUT
Connectors: 1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced 40k ohm, unbalanced 20k ohm
Max Input Level: >+21dBu balanced or unbalanced
CMRR: >40dB, typically >55dB at 1KHz
OUTPUTS
Connectors: 1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip
Type: Impedance-balanaced/unbalanced, RF filtered
Impedance: Balanced 200 ohm, unbalanced 100 ohm
Max Output Level: >+21dBu balanced/unbalanced into 2k ohm or greater
>+18dBm balanced/unbalanced (into 600 ohm)
SYSTEM PERFORMANCE
Bandwidth: 20Hz to 20KHz, +0.5/-1dB
Frequency Response: <10Hz to >50KHz, +0.5/-3dB +/-15dB range +/-6dB range
Dynamic Range: 109dB 115dB
Signal-to-Noise: 90dB, 97dB
THD+Noise: <0.005%
Interchannel Crosstalk: <-80dB, 20Hz to 20KHz
FUNCTION SWITCHES
EQ Bypass: Bypasses the graphic equalizer section in the signal path
Low Cut: Activates the 40Hz 18dB/octave high-pass filter
Range: Selects either +/- 6dB or +/- 15dB slider boost/cut range
Dimensions: 5.25" H X 19" W X 7.9" D (13.4cm x 48.3cm x 20.1cm)
Enping S-paul Audio Factory specializes in producing amplifiers, sound-boxes, tune-registers and other facilities of audio. We are located in the famed city (Enping) next to the Pearl River, and very close to Guangzhou, Hk, Macao and the 325 Nation Highway. The traffic is very convenient.
We own advanced technology, first-rated producing facilities and reliant quality guarantee. During the recent years, we invented a loads of new audio products according to the trends of market, which are with high technology and hot sold. Our products are created by special technology. From the raw materials to the made ones, each links are through strict quality inspection to ensure the pretty figures, outstanding performance, and reasonable price of products. Our brands are always dominant and big sold wherever home and abroad and earned the high praises among the consumers.
Our Ideal is " Perfect products, reasonable prices, wonderful service" Welcome all the clients to enter business with us wherever home and abroad.
