| Prod Model: |
STR-ESR1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

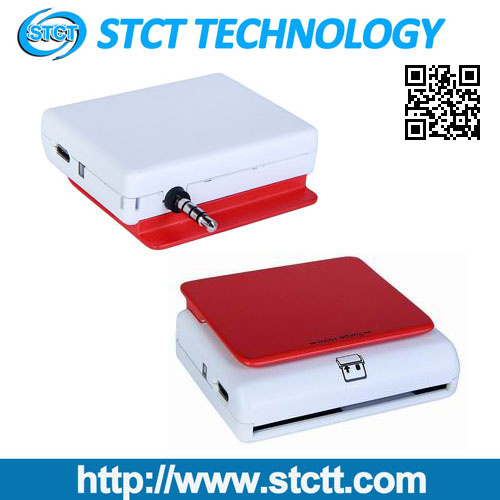

EMV& MSR Swipe Card Reader
Model No. STR-ESR1
Specification
Function: EMV Card reader & Magnetic Card Swiper
Case Material: PC
Case Texture/Finishing: Matt surface
Size (LxWxH): ~ 16.9X60.6X51.7 (unit in mm)
Color: Red & white
Power & Battery: Built-in Lithium Polymer Rechargeable Battery 125mAh, 3.7V
Charging: Via Micro USB to computer system or power adapter
Battery Operating life: 80 transactions or above (under normal operation mode)
Card Reader: Dual track (track 1&2 or 2&3 )
Swipe Speed: 10cm/sec -100cm/sec
In/Out Put: 4 poles 3.5mm Audio jack, Micro USB
Operating Inductor: Green light flashing
Low Battery Inductor: Red light on Red light flashing Green light on => Low Battery
=> Charging
=> Charging finish
Certification: CE, EMV Level 1 & Level 2, PBOC Level 1 & Level 2
Key Management: DUKPT
Encryption Algorithm: TDES
Operating Temperature: 0 -55 degree(32 F- 131 F)
Operating Humidity: Maximum 95%
Storage Temperature: -30-70 degree(-22 F -158 F)
Storage Humidity: Maximum 95%
Software Support: Android 2.1 or above, iOS3.2 or above
Founded in 2003, Shenzhen STCT Technology Co., Ltd focuses on providing E-Payment solution and developing top quality, highly secure and reliable products. Our products are widely used in banking, retail, logistic, medical system area.
Our products:
Printers (POS printers, Mobile printers, Panel printers)
Card reader and writer(magnetic card readers writers, contact IC card reader writer, contactless IC card reader writer, all in one card reader writer, motor card reader)
Touch POS Terminal
Pinpad
Cards
Quality & Service
Our products have acquired CE, FCC certification and RoHS compliance. We have experienced R&D team which can guarantee to provide our clients with superior products and service as well as OEM/ODM business.
Our aim is create the brand by quality, develop by innovation, mutual benefit and joint development.
