| Prod Model: |
STR-SR506 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Type: |
Data Collector |

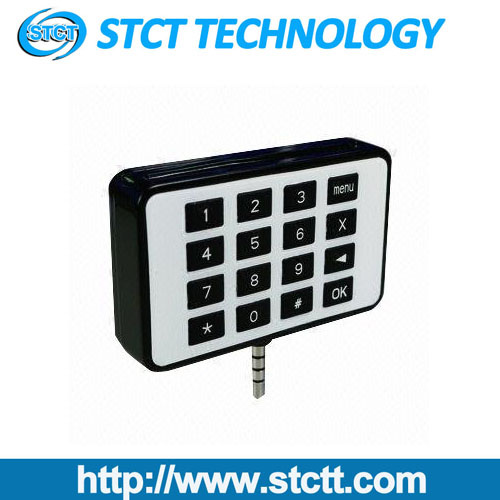

Product Description
Feature
1. Support DES/3DES/DUKPT encryption
2.16 keys pad made of high quality silica gel with long life
3. Audio-jack interface. No external power cable needed
4. Micro-USB socket for rechargeable Li-ion battery and firmware upgrade
5. Small size
Specification
Items Description
Standards ISO7816 T=0, T=1, EMV4. X L1, PBOC2.0
PIN Pad
1.16 Keys ( 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, *, #, < Enter> , < Cancel> , < Backspace> , and Function> )
2. Purpose: Enter pin code
3. Reader will encrypt pin code before transmitting.
4. Encryption options: None/ DES/3DES/ DUKPT
Life time of ICC Acceptor Approx 200, 000 times of insertion
Power Input Operating 3.3V DC, MAX. 13mA and less then 0.1mA when Idle (Work in 3V cards)
Rechargeable Li-ion Battery 3.7V / 320mAh
Interface 3.5 mm audio jack/plug with 4 signal contacts- left earphone, right earphone, ground and microphone
Operating System & SDK support iOS, Android
Operation Temperature -10 ~ 50 degree
Dimension 67 X 40 X 15 mm
Founded in 2003, Shenzhen STCT Technology Co., Ltd focuses on providing E-Payment solution and developing top quality, highly secure and reliable products. Our products are widely used in banking, retail, logistic, medical system area.
Our products:
Printers (POS printers, Mobile printers, Panel printers)
Card reader and writer(magnetic card readers writers, contact IC card reader writer, contactless IC card reader writer, all in one card reader writer, motor card reader)
Touch POS Terminal
Pinpad
Cards
Quality & Service
Our products have acquired CE, FCC certification and RoHS compliance. We have experienced R&D team which can guarantee to provide our clients with superior products and service as well as OEM/ODM business.
Our aim is create the brand by quality, develop by innovation, mutual benefit and joint development.
