| Prod Model: |
STR-500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Type: |
Data Collector |
Product Description
Description:

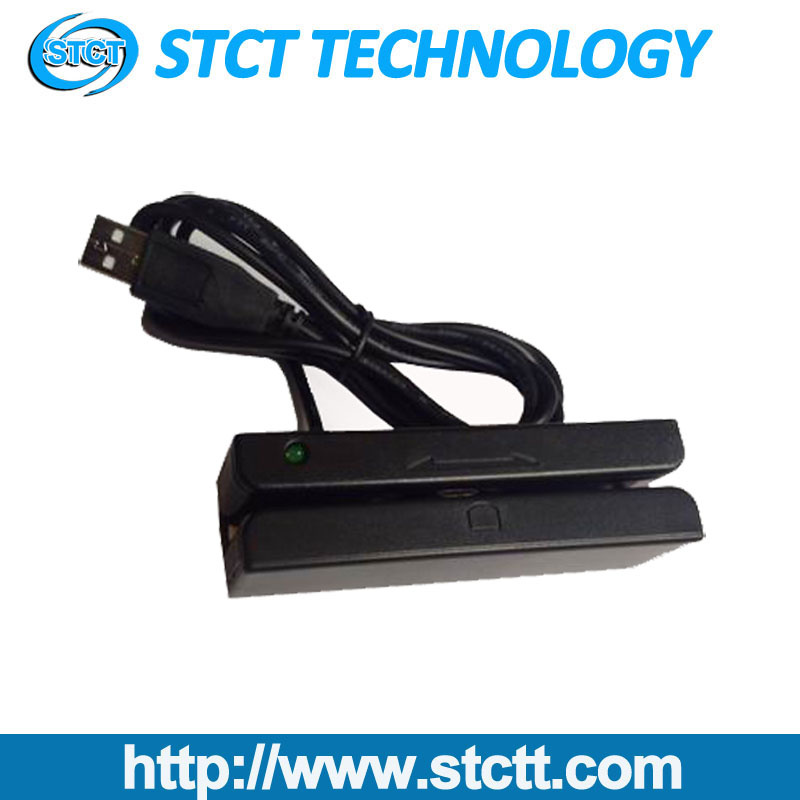

STR-500 series of magnetic card reader machine is a reader equipment integrating the functions of reading and sending magnetic cards information. Integrated magnet card information decoding, collecting and sending functions. Bi-direction read capability. Can read 1&2&3 tracks information as required. Compliance with the ANSL/ISO technical standards.
Feature:
Bi-direction read capability. Baud rate adjustable. Plug and play. USB output without external power supply. Operation responded by LED and buzzer.
Specifacation:
Magnetic card standards ISO7810, 7811_1, 2, 3, 4, 5
Decoding method F2F(FM)
Card operation speed 10_120cm/s
Interface USB
Life time of head ≥ 600, 000 times
Supply voltage DC5V± 5%
Dimension (L*D*H) 100*28*27 mm
Current ≤ 50mA
Model Description
STR-500-X-XX
Type X-Interface XX-Tracks
STR-500
Mini MSR U--USB port
K--Keyboard compatible
T--TTL 04--1&2 tracks
05--2&3 tracks
06--1&2&3 tracks
Founded in 2003, Shenzhen STCT Technology Co., Ltd focuses on providing E-Payment solution and developing top quality, highly secure and reliable products. Our products are widely used in banking, retail, logistic, medical system area.
Our products:
Printers (POS printers, Mobile printers, Panel printers)
Card reader and writer(magnetic card readers writers, contact IC card reader writer, contactless IC card reader writer, all in one card reader writer, motor card reader)
Touch POS Terminal
Pinpad
Cards
Quality & Service
Our products have acquired CE, FCC certification and RoHS compliance. We have experienced R&D team which can guarantee to provide our clients with superior products and service as well as OEM/ODM business.
Our aim is create the brand by quality, develop by innovation, mutual benefit and joint development.
