| Prod Model: |

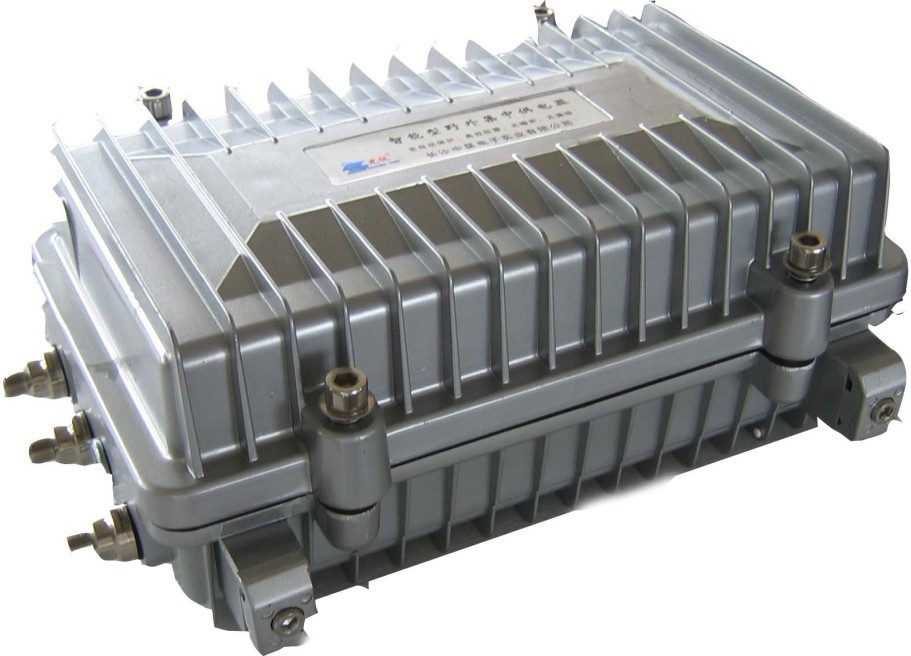

HKTFD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Type1: |
Wireless |
| Usage: |
Amplifier |
| Support Network: |
Switch |
| Type: |
Wireless |
Product Description
Frequency Band (MHz) Downlink 87~750/862 /Uplink5~65
Nominal Gain dB 26 28 30 32 34/16 20 24
Minimal Gain dB ≥ 26 ≥ 28 ≥ 30 ≥ 32 ≥ 34 /≥ 16 ≥ 20 ≥ 24
Output Level dBuV Rated Output Level
98 100 102 104 106; Max Output Level ≥ 110
Nominal Input Level dBuV 72
Max Output Level dBuV 108
Flatness In Band dB ± 0.75/ ± 0.75
Noise Coefficient dB ≤ 10/≤ 12
RF Reflection Loss dB ≥ 16/≥ 16
C/CTB dB ≥ 67 ≥ 63 ≥ 61 ≥ 61 ≥ 60
C/CSO dB ≥ 64 ≥ 62 ≥ 60 ≥ 60 ≥ 60 /≥ 52
Gain Adjust Range dB 1~20dB Fixed attenuations (1dB step) or adjustable continuously
Slope Adjust Range dB 1~15dB Fixed Attenuations (1dB step) or adjustable continuously
Signal Hum Ratio % <2
Gain Stability dB ± 1
Output Impedance Ω 75
Hunan HKT Technology Co., Ltd. (Hereafter refer to HKT), as a forerunner in cable TV equipment, optical fiber communications products, was formerly known as Changsha Zhongxing Electronic Industrial Co., Ltd and wholly owned Shenzhen Huankuantong Technology Co., Ltd now. Through over 14 years of growth, the company has accomplished impressive results in its originally established business to become one of world' S leading providers in CATV products with customers throughout various regions worldwide. As turnover increased steadily, the company has established more than 100 sales station in domestic and continue to focus on overseas market.
HKT has been penetrating the CATV industry, focusing on perfect combination of cost, technology and quality, and providing customers with the best solution. ISO 9001: 2008 quality management system has been strictly implemented to ensure that all business parts work under effective control.
HKT provide perfect low-cost and high-quality solutions to the provincial and municipal network companies and business users at domestic and abroad with excellence technical support, smooth financing platform, powerful cost control, superior industry and channel integration capabilities, strong manufacturing capabilities and efficient after-sales service system.
HKT owns patented turnkey technologies in CATV industry. Its product quality, functionality as well as cost competitiveness are considered to be of industry leading standards. HKT emphasis on organic combination of producing, learning and researching, and form the good cooperated platform with well-known universities. Now HKT have successfully developed two mature network management products with independent intellectual property rights. Named as HKT HFC equipment NMS V1.0 and HKT EOC equipment NMS V1.0. Which resolved the management problem of the network equipment and obtained the software enterprise certification.
Events
Changsha Zhongxing Electronic Industrial Co., Ltd. Was established on June 18, 1998.
Shenzhen Huankuantong Technology Co., Ltd was established on March 14, 2008.
Wholly-own and requisition Shenzhen Hywell Technology Co., Ltd on October 28, 2010.
Honor
CCC certification by China Quality Certification Center
CE certification
Quality Management System Certification by China Quality Certification CenterCertificate of Network Access for Broadcast Equipment from State Administration of Radio Film&TV P. R. China
Foreground Planning
Go public in Stock Exchange within year 2015.
