| Prod Model: |
HKTFD-003 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
CATV Amplifier |
| CATV Amplifier Model: |
Hktfd-003 |
| Module: |
High Quality Nxp or Nec Module |
| Feature: |
Waterproof, Moistureproof and Anti-Oxidation |
| Frequency Band Downlink: |
87 ~ 750/862MHz |
| Uplink: |
5 ~ 65MHz |
| Meterial: |
Aluminium Alloy Case |
| Power Voltage: |
AC135 ~ 265 or AC35 ~ 90V |
| Industry: |
Fiber Optic Equipments,CATV Products |
| Warranty: |
One Year |
| Certification: |
CE |
| Condition: |
New |
| Type: |
TV Front-end Equipment |
| Function: |
CATV Amplifier |
Product Description

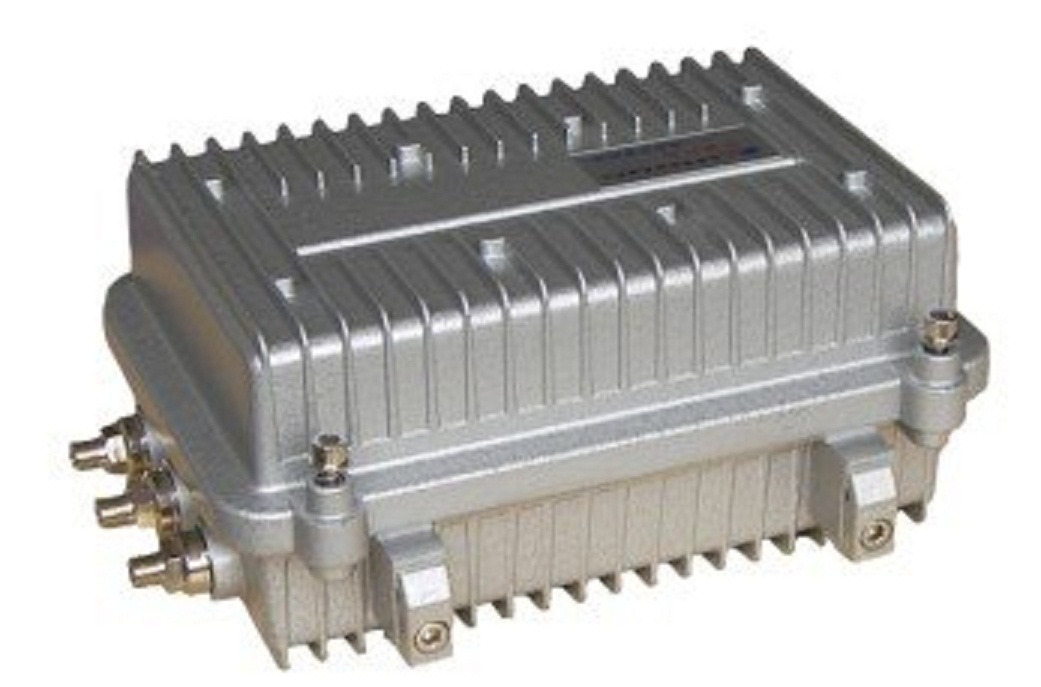

Bidirectional CATV amplifier
Model No: HKTFD-003
Specifications:
1. 1GHz working platform, high output, low distortion, excellent flatness in band
2. Using high quality NXP or NEC module
3. Using plug-in functional device, could achieve blind mating for guiding groove design. Asymmetrical stitch of the equalizer had been designed to avoid incorrect using. Gilded copper stitches and pins are suitable for contacting and debugging.
4. The standard single output model could be extended to two tap or split outputs.
5. Use two aluminium panels inside to prevent electromagnetic radiation
Multistage lightning protection devices ensure long-time stable and continuous working.
6. New attractive aluminium alloy case with waterproof, moistureproof and anti-Oxidation design is favourable to installation and heat elimination.
|
Items |
Units |
Technical Parameter |
|
Downlink |
Uplink |
|
Frequency Band |
MHZ |
87 ~ 750/862 |
5 ~ 65 |
|
Nominal Gain |
dB |
26 |
28 |
30 |
32 |
34 |
16 |
20 |
24 |
|
Minimal Gain |
dB |
≥ 26 |
≥ 28 |
≥ 30 |
≥ 32 |
≥ 34 |
≥ 16 |
≥ 20 |
≥ 24 |
|
Output Level |
dBuV |
Rated Output Level |
Max Output Level |
|
98 |
100 |
102 |
104 |
106 |
≥ 110 |
|
Nominal Input Level |
dBuV |
72 |
|
|
Max Output Level |
dBuV |
108 |
|
|
Flatness In Band |
dB |
± 0.75 |
± 0.75 |
|
Noise Coefficient |
dB |
≤ 10 |
≤ 12 |
|
RF Reflection Loss |
dB |
≥ 16 |
≥ 16 |
|
C/CTB |
dB |
≥ 67 |
≥ 63 |
≥ 61 |
≥ 61 |
≥ 60 |
|
|
C/CSO |
dB |
≥ 64 |
≥ 62 |
≥ 60 |
≥ 60 |
≥ 60 |
≥ 52 |
|
Gain Adjust Range |
dB |
1 ~ 20dB Fixed attenuations (1dB step)or adjustable continuously |
|
Slope Adjust Range |
dB |
1 ~ 15dB Fixed Attenuations (1dB step)or adjustable continuously |
|
Signal Hum Ratio |
% |
less than 2 |
|
Gain Stability |
dB |
± 1 |
|
Output Impedance |
Ω |
75 |
|
Working Temperature |
degrees |
-40 ~ +60 |
|
Storage Temperature |
degrees |
-40 ~ +80 |
|
Power Voltage |
V |
AC135 ~ 265 or AC35 ~ 90 |
