| Prod Model: |
HKTFD-004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TV Front-end Equipment |
Product Description

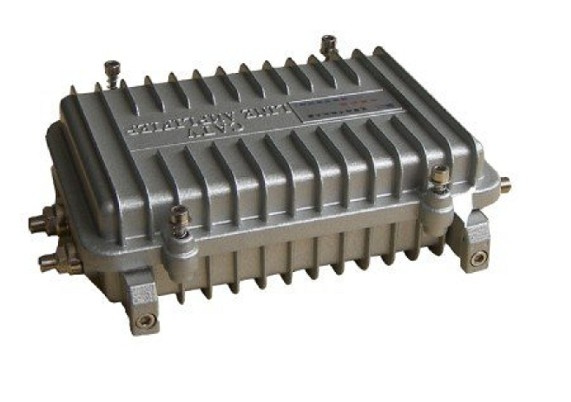

Subscriber CATV amplifier
Model No: HKTFD-004
Specifications:
1.1GHz working platform, high output, low distortion, excellent flatness in band
2. Using high quality module
3. The standard single output model could be extended to two tap or split outputs.
Multistage lightning protection devices ensure long-time stable and continuous working.
4. New attractive aluminium alloy case with waterproof, moistureproof and anti-Oxidation design is favourable to installation and heat elimination.
|
Items |
Units |
Technical Parameter |
|
Frequency Band |
MHz |
45 ~ 750/862 |
|
Nominal Gain |
dB |
26 |
28 |
30 |
32 |
34 |
|
Minimal Gain |
dB |
≥ 26 |
≥ 28 |
≥ 30 |
≥ 32 |
≥ 34 |
|
Nominal Output Level |
dBuV |
98 |
100 |
102 |
104 |
106 |
|
Nominal Input Level |
dBuV |
72 |
|
Max Output Level |
dBuV |
108 |
|
Flatness In Band |
dB |
± 1.0 |
|
Noise Coefficient |
dB |
≤ 10 |
|
RF Reflection Loss |
dB |
≥ 14 |
|
C/CTB |
dB |
≥ 57 |
|
C/CSO |
dB |
≥ 56 |
|
Gain Adjust Range |
dB |
1 ~ 20dB adjustable continuously |
|
Slope Adjust Range |
dB |
1 ~15dB adjustable continuously |
|
Ethernet Over Coax |
|
built-in EOC Signal Commingler(optional) |
|
Signal Hum Ratio |
% |
≤ 2 |
|
Gain Stability |
dB |
± 1 |
|
Output Impedance |
Ω |
75 |
|
Working Temperature |
degrees |
-40 ~ +60 |
|
Storage Temperature |
degrees |
-40 ~ +80 |
|
Power Voltage |
V |
AC135~ 265 or AC35~90 |
Hunan HKT Technology Co., Ltd. (Hereafter refer to HKT), as a forerunner in cable TV equipment, optical fiber communications products, was formerly known as Changsha Zhongxing Electronic Industrial Co., Ltd and wholly owned Shenzhen Huankuantong Technology Co., Ltd now. Through over 14 years of growth, the company has accomplished impressive results in its originally established business to become one of world' S leading providers in CATV products with customers throughout various regions worldwide. As turnover increased steadily, the company has established more than 100 sales station in domestic and continue to focus on overseas market.
HKT has been penetrating the CATV industry, focusing on perfect combination of cost, technology and quality, and providing customers with the best solution. ISO 9001: 2008 quality management system has been strictly implemented to ensure that all business parts work under effective control.
HKT provide perfect low-cost and high-quality solutions to the provincial and municipal network companies and business users at domestic and abroad with excellence technical support, smooth financing platform, powerful cost control, superior industry and channel integration capabilities, strong manufacturing capabilities and efficient after-sales service system.
HKT owns patented turnkey technologies in CATV industry. Its product quality, functionality as well as cost competitiveness are considered to be of industry leading standards. HKT emphasis on organic combination of producing, learning and researching, and form the good cooperated platform with well-known universities. Now HKT have successfully developed two mature network management products with independent intellectual property rights. Named as HKT HFC equipment NMS V1.0 and HKT EOC equipment NMS V1.0. Which resolved the management problem of the network equipment and obtained the software enterprise certification.
