Product Description

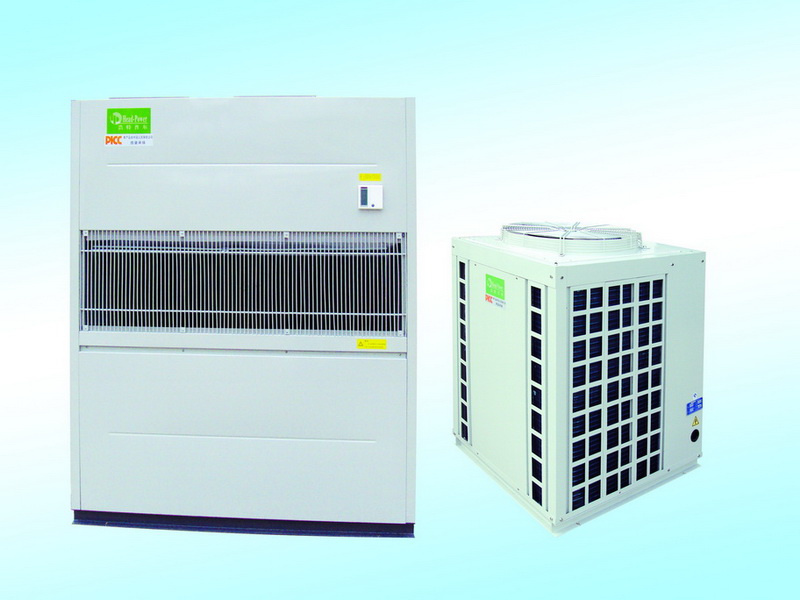

Air Cooled Ducted Split Air Conditioner
Specifications:
1. Cooling capacity: 7.8~156kw;
2. Air flow: 1700~27000m3/h;
3. Hermetic scroll compressor;
4. High static pressure duct type, free blowing type;
5. R22, R407C, R134A.
Features:
1. Wide range application
Suitable for high-class commercial and residential buildings, marketss, offices, cinemas, restaurants, schools, agencies, etc, its cooling capacity from 7.8~156kw.
2. Various types
Ceiling mounted, floor standing type, duct type, blowing directly type
3. Quiet and comfortable
Ultra-low noise design, thermal and acoustic insulation materials. Outdoor unit uses new type propeller fans, which makes air flow smoothly between the blades, reduce noise caused by the eddy current.
4. Most modern control
Simplified operation interface, it senses and adjusts temperature automatically, control the system intellectually. It also has functions of self-detection, makes maintenance more simple and easier.
5. Excellent indoor air quality
You can introduce fresh air acoording to the requirements of indoor air quality.
|
Ducted Split Type Air Conditioner(R22) |
|
Model |
HAL03(H) |
HAL05(H) |
HAL06(H) |
HAL08(H) |
HAL10(H) |
HAL12(H) |
HAL15(H) |
HAL18(H) |
HAL20(H) |
HAL25(H) |
HAL30(H) |
HAL36(H) |
HAL40(H) |
HAL50(H) |
HAL60(H) |
Unit
performance |
Cooling capacity |
kw |
7.8 |
13 |
15.6 |
20.8 |
26 |
31.2 |
39 |
46.8 |
52 |
65 |
78 |
93.6 |
104 |
130 |
156 |
|
Heating capacity |
kw |
8.1 |
13.6 |
16.5 |
22.1 |
27.5 |
33 |
41.5 |
50.2 |
56.8 |
69 |
82 |
98 |
110 |
136 |
162 |
|
*Electric heating |
kw |
3 |
4 |
5 |
6 |
8 |
9 |
12 |
15 |
16 |
18 |
25 |
30 |
32 |
36 |
50 |
|
Air flow |
m3/h |
1700 |
2600 |
3100 |
4100 |
5400 |
6500 |
8000 |
9600 |
10800 |
13800 |
16000 |
19500 |
20500 |
25500 |
28000 |
|
External static pressure |
Pa |
80 |
100 |
110 |
110 |
120 |
180 |
200 |
200 |
220 |
230 |
230 |
260 |
300 |
340 |
350 |
|
Power Supply |
220V |
380V/3N~50Hz |
|
Refrigerant |
Type |
R22 (Optional: R407C, R134A) |
|
Volume control |
Thermostatic expansion valve |
|
Charge |
kg |
3.5 |
5 |
5 |
5+3.5 |
5*2 |
5.6*2 |
5*3 |
5.6*3 |
5*4 |
9*2 |
10*2 |
10*3 |
10*3+5 |
10*4 |
10*5 |
|
Compressor |
Type |
Flexible hermetic scroll compressor |
|
Power |
kw |
2.4 |
4 |
4.78 |
6.4 |
8 |
9.5 |
12 |
14.3 |
16 |
19 |
24 |
28.5 |
32 |
38 |
47 |
|
Evaporator |
Type |
Copper tubes with aluminium fins |
|
Fin type |
Slotted-type two-way aluminum fin / honeycomb type aluminum fin |
|
Maximum ambient temp |
46º C |
|
Indoor unit |
Fan |
Type |
centrifugal type |
|
Driving method |
Direct drive |
Belt drive |
|
Power |
kw |
0.25 |
0.55 |
0.55 |
0.55*2 |
0.55*2 |
1.5 |
2.2 |
2.2 |
3 |
3 |
4 |
5.5 |
5.5 |
7.5 |
11 |
Unit
Dimension |
L |
mm |
800 |
1000 |
1100 |
1250 |
1250 |
1450 |
1650 |
1720 |
1800 |
1800 |
2000 |
2100 |
2200 |
2400 |
2550 |
|
W |
mm |
550 |
550 |
550 |
600 |
600 |
800 |
800 |
800 |
800 |
900 |
900 |
1000 |
1000 |
1500 |
1500 |
|
H |
mm |
1600 |
1600 |
1600 |
1600 |
1600 |
1700 |
1800 |
1950 |
1950 |
2000 |
2000 |
2200 |
2200 |
2250 |
2400 |
|
Weight |
kg |
70 |
90 |
100 |
140 |
160 |
225 |
280 |
320 |
350 |
440 |
480 |
580 |
630 |
700 |
815 |
|
Noise level |
dB/(A) |
< 50 |
< 52 |
< 52 |
< 52 |
< 56 |
< 60 |
< 65 |
< 65 |
< 67 |
< 67 |
< 67 |
< 67 |
< 68 |
< 70 |
< 72 |
|
Outdoor unit |
Compressor |
Type |
Hermetic Scroll |
|
Power |
kw |
2.4 |
4 |
4.78 |
6.4 |
8 |
9.5 |
12 |
14.3 |
16 |
19 |
24 |
28.5 |
32 |
38 |
47 |
|
Condenser |
Type |
Copper tubes with aluminium fins |
|
Fin type |
Slotted-type two-way aluminum fin |
|
Blower |
Type |
ultra-low noise axial type |
|
Driving method |
Direct drive |
|
Power |
kw |
0.18 |
0.25 |
0.25 |
0.55 |
0.71 |
0.75 |
1.1 |
0.71*2 |
0.71*2 |
0.75*2 |
1.1*2 |
1.5*2 |
0.75*3 |
1.1*3 |
1.1*4 |
Unit
Dimension |
L |
mm |
840 |
840 |
840 |
940 |
1050 |
1150 |
1250 |
1880 |
2250 |
2300 |
2300 |
2800 |
2200 |
2300 |
2400 |
|
W |
mm |
840 |
840 |
840 |
940 |
1050 |
1050 |
1200 |
1050 |
1050 |
1100 |
1200 |
1100 |
2000 |
2200 |
2200 |
|
H |
mm |
950 |
950 |
950 |
1150 |
1150 |
1150 |
1300 |
1180 |
1150 |
1250 |
1400 |
1400 |
2000 |
2200 |
2200 |
|
Weight |
kg |
100 |
130 |
140 |
210 |
240 |
360 |
380 |
450 |
480 |
650 |
750 |
860 |
920 |
1360 |
1450 |
|
Noise level |
dB(A) |
62 |
63 |
63 |
67 |
68 |
69 |
70 |
71 |
71 |
72 |
74 |
75 |
76 |
77 |
78 |
Connecting
tubes |
Refrigerant
gas tube |
Size |
Φ 15.9 |
Φ 19.1 |
Φ 19.1 |
Φ 19.1+
Φ 15.9 |
Φ 19.1 |
Φ 19.1 |
Φ 19.1 |
Φ 19.1 |
Φ 28 |
Φ 28 |
Φ 28× 2
+Φ 19.1 |
Φ 28 |
Φ 28× 3
+Φ 19.1 |
Φ 28 |
Φ 28 |
|
Quantity |
1 |
1 |
1 |
1 |
2 |
2 |
3 |
3 |
2 |
2 |
1 |
3 |
1 |
4 |
5 |
Refrigerant
liquid tube |
Size |
Φ 9.52 |
Φ 12.7 |
Φ 12.7 |
Φ 12.7+
Φ 9.52 |
Φ 12.7 |
Φ 12.7 |
Φ 12.7 |
Φ 12.7 |
Φ 15.9 |
Φ 15.9 |
Φ 15.9× 2
+Φ 12.7 |
Φ 15.9 |
Φ 15.9× 3
+Φ 12.7 |
Φ 15.9 |
Φ 15.9 |
|
Quantity |
1 |
1 |
1 |
1 |
2 |
2 |
3 |
3 |
2 |
2 |
1 |
3 |
1 |
4 |
5 |
|
Connection method |
flare opening |
welding+flare opening |
|
|
|
Note: |
|
1. Nominal cooling condition: indoor air temperature DB27º C/WB19º C, ambient temperature, DB35º C/WB24º C. |
|
2. Nominal heating condition : indoor air temperature is 21 º C, outside air temperature is DB7º C/WB6º C |
|
3. * means the electric heating capacity of cooling and electric heating type units |
|
4. The dimensions of indoor unit are for floor standing ducted type. |
|
5. Optional voltage: 3PH/ 440V/60Hz, 3PH/220V/60Hz |
|
6. The specifications are subject to change without notice for improvement... |
