| Prod Model: |
WKL |
| Name: |

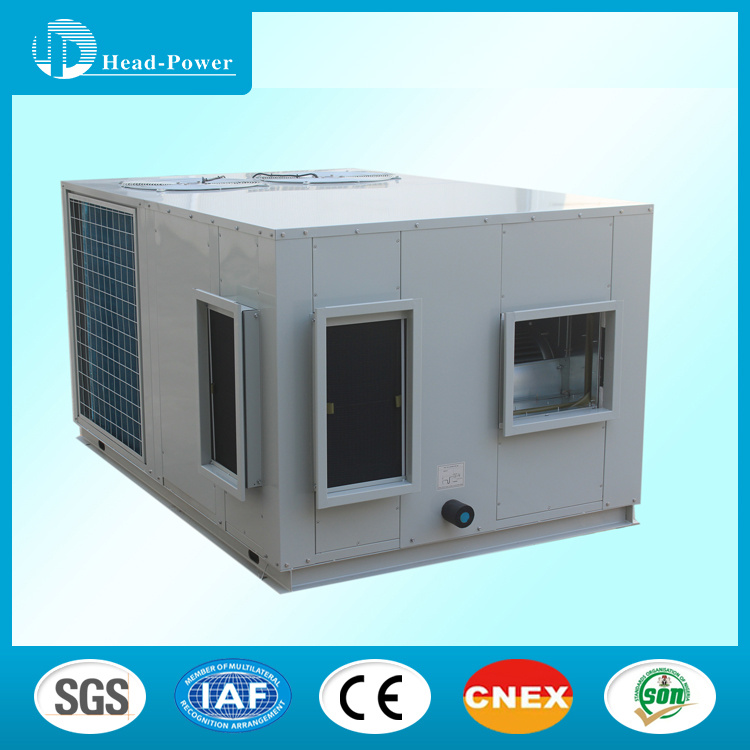

12.5kw Air Conditioner Wedding Tent Air Conditio |
| Cooling Capacity: |
13-268kw |
| Heating Capacity: |
13.6-290kw |
| Air Flow: |
3000-45000 CMH |
| Medium: |
R22/R407c/R410A/R134A, etc, Choose by Clients |
| Compressor Brand: |
Hitachi, SANYO, Panasonic, Copeland, Bitzer etc |
| Compressor Type: |
Hermetic Scroll |
| Evaporator: |
Copper Tubes with Aluminum Fins |
| Condenser: |
Copper Tubes with Aluminum Fins |
| Type: |
Cabinet Air Conditioner |
| Certification: |
SGS |
| Condition: |
New |
| Operating Voltage: |
220V, 380V, 160V, 440V etc. |
| Application Fields: |
Factory, Shop etc |
| Mounting: |
Rooftop |
Product Description
1)The Feature of 12.5kw air conditioner wedding tent air conditionera. is applicable for the regions in short of water;
b. can be easily erected on the roof, not thake up indoor area;
c.suffcient outside excessive preesure exicts, easy for air duct ventilation, greatly reducing indoor noise;exclusive vertical and horizontal air supply structrues are optional;
d.complete varieties and specifications are satisfactory for different demands;
e.large cold capacity unit is made of broken cold bridge aluminum alloy profile,prohibits the generaton of coled leak or condensed water due to higher temperature difference in and out of the unit;
f.major components are all overseas introduced excellent products;
g.the evaporator and condenser enjoy enhanced heat transfer design ,being effcient and energy saving.
2)Product model| Model Type | WKR05 | WKR06 | WKR08 | WKR10 | WKR12 | WKR15 | WKR20 | WKR25 | WKR30 | WKR36 | WKR40 | WKR50 | WKR60 | WKR72 | WKR85 | WKR96 |
| System Characters | Cooling Capacity | KW | 13 | 16 | 21 | 26.8 | 32 | 40 | 54 | 68 | 80 | 98 | 105.6 | 135 | 159 | 192 | 222 | 255 |
| Heating Capacity | KW | 15 | 18 | 23 | 30 | 36 | 45 | 59.5 | 73 | 86 | 104 | 111 | 142 | 165 | 199 | 229 | 263 |
| Air Volume | m3/h | 3000 | 3600 | 4800 | 6000 | 7200 | 8800 | 10800 | 12600 | 16800 | 19200 | 20600 | 25000 | 28000 | 32000 | 38000 | 42000 |
| Outside Pressure | Pa | 120 | 300 | 120 | 300 | 150 | 320 | 200 | 350 | 220 | 380 | 250 | 400 | 300 | 450 | 350 | 500 | 300 | 350 | 400 | 550 | 400 | 550 | 450 | 600 | 500 | 650 | 550 | 700 | 600 | 750 | 600 | 750 |
| Noise Level | dB(A) | 62 | 66 | 62 | 66 | 64 | 68 | 66 | 70 | 67 | 71 | 68 | 72 | 71 | 74 | 73 | 75 | 75 | 77 | 76 | 78 | 77 | 79 | 78 | 80 | 80 | 82 | 82 | 84 | 84 | 86 | 86 | 88 |
| Temperature Range and Accuracy | 18ºC~30ºC±1ºC |
| Voltage | 3N~50HZ 380V |
| Total Power | Cooling | KW | 4.5 | 4.8 | 5.3 | 5.5 | 7.4 | 7.7 | 10 | 10.7 | 12.2 | 13 | 15.1 | 15.8 | 19.8 | 20.8 | 25.4 | 26.4 | 30 | 32 | 37.5 | 37.5 | 41 | 41 | 47 | 51 | 61 | 65 | 75 | 75 | 92 | 92 | 110 | 110 |
| Heating | KW | 8.5 | 8.8 | 9.3 | 9.5 | 12.7 | 13 | 16.5 | 17.2 | 20 | 20.8 | 25.6 | 26.3 | 32.8 | 33.8 | 40.9 | 41.9 | 49.5 | 51.5 | 56.5 | 58.5 | 62 | 62 | 70 | 73.5 | 88 | 92 | 104 | 108 | 131 | 134.5 | 155 | 158.5 |
| Refrigerating System | Refrigerant | Type | R22 |
| Way of Throttling | Outside Balanced Thermal Expansion Valve |
| Compressor | Type | Hermetic Scroll Compressor |
| Power | KW | 3.75 | 4.5 | 3.75+2.25 | 3.75×2 | 4.5×2 | 3.75×3 | 3.75×4 | 9×2 | 9×2+3.75 | 9×3 | 9×3+3.75 | 9×4 | 9×5 | 9×6 | 9×7 | 9×8 |
| Evaporator | Type | Tube with Fins |
| Fin Type | Slotted-type Two-way Aluminum Fins |
| Condenser | Type | Tube with Fins |
| Fin Type | Corrugated Aluminum Fins |
| Air Sending System | Condenser Fan | Type | Ultra-low-noise Axial Type |
| Drive Method | Direct-driving |
| Motor Power | KW | 0.25 | 0.25 | 0.75 | 0.82 | 0.82 | 1.1 | 0.75×2 | 0.82×2 | 1.1×2 | 1.5×2 | 0.75×4 | 0.82×4 | 1.1×4 | 1.5×4 | 1.1×6 | 1.5×6 |
| Evaporator Fan | Type | Ultra-low-noise Double-inlet Centrifugal Type |
| Drive Method | Belt Transmition |
| Motor Power | KW | 0.55 | 0.75 | 0.55 | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | 2.2 | 3 | 3 | 4 | 3 | 4 | 5.5 | 7.5 | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 15 | 11 | 15 | 15 | 18.5 | 15 | 18.5 |
| Heater | Type | Electric Heating |
| Power | KW | 4 | 4 | 6 | 7.5 | 9 | 12 | 15 | 18 | 21 | 24 | 24 | 27 | 30 | 36 | 45 | 54 |
| Air Filter | Nylon Bump Net / Coarse Efficiency G3 |
| Dimensions | Length | mm | 1300 | 1300 | 1650 | 1650 | 2000 | 2000 | 3200 | 3200 | 4000 | 4000 | 4000 | 4000 | 4350 | 4350 | 5960 | 5960 |
| Width | mm | 950 | 950 | 1150 | 1150 | 1150 | 1150 | 1600 | 1600 | 1600 | 1600 | 2000 | 2000 | 2160 | 2160 | 2400 | 2400 |
| Height | mm | 1200 | 1200 | 1400 | 1400 | 1620 | 1620 | 1800 | 1800 | 2160 | 2160 | 2160 | 2160 | 2480 | 2480 | 2480 | 2480 |
| Weight | kg | 280 | 330 | 465 | 480 | 550 | 860 | 900 | 920 | 2100 | 2160 | 2160 | 3080 | 3590 | 4400 | 4800 | 5000 |
| MOQ | units | 2 |
| Delivery Time | days | 20 |
| EXW FOSHAN RMB | Heat Pump | per unit | 12300 | 13570 | 21300 | 22700 | 25720 | 34300 | 46280 | 65000 | 73840 | 89400 | 99800 | 119600 | 143000 | 166400 | 201200 | 239200 |
| FOB SHENZHEN USD | Heat Pump | per unit | 1630 | 1800 | 2820 | 3010 | 3410 | 4540 | 6130 | 8610 | 9780 | 11840 | 13210 | 15830 | 18930 | 22030 | 26630 | 316600 |
| 1. Cooling capacity is based on the following conditions: indoor air temperature DB27ºC/WB19ºC,ambient temperature,35ºC DB/24ºC WB. | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| 2.Normal working conditions: ambient temperature 15ºC~43ºC | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| 3. The specifications are subject to change without notice for improvement.. | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
| 4. If any other special specifications are needed, please notify us in advance. | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
