| Prod Model: |
HWD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Ceiling Mounting Ducted Air Conditioner |
| Cooling Capacity: |
33900-815000 BTU |
| Electric Heating Capacity: |
20500-409000 BTU |
| Air Flow: |
1350-38000CMH |
| Medium: |
R22/R407c/R410A/R134A,etc,Choose by Clients |
| Compressor Brand: |
Hitachi,SANYO,Panasonic,Copeland,Bitzer etc,Choose |
| Compressor Type: |
Hermetic Scroll |
| Evaporator: |
Copper Tubes with Aluminum Fins |
| Condenser: |
Shell and Tube |
| Type: |
Cabinet Air Conditioner |
| Certification: |
SGS |
| Condition: |
New |
| Operating Voltage: |
220V,380V,160V,440V etc. |
| Application Fields: |
Factory,Shop etc |
| Mounting: |
Floor Standing and Ceiling Standing |
Product Description

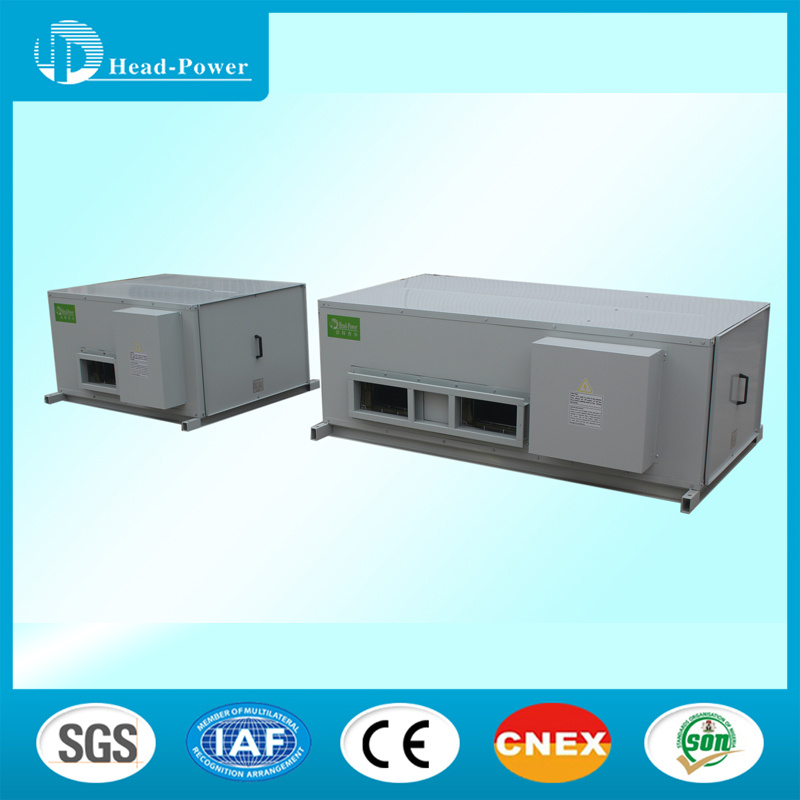

1)The Feature of water cooled ceiling mounting ducted air conditioner
a.Independent and refrigeranting system
Each compressor is equipped with and independent refrigerant loop,easy for energy regulation, and no full powr running is required in case of partial load, having enhanced efficiency and reduce energy comsumption.
b.NEW GENERATION OFSCROLL COMPRESSOR
It enjoys stable running, iwht noise being 3-5dB(A) lower than pistion compressors;exclusive structure provides better capacity against lquitd impact,boasts hiher running reliability,cost effectiveness and energy saving.
c.High-effcient heat exchanger
The evaporator is made of copper tube and high-efficient aluminum fins,enjoys exclusive design and better dehumidifying capacity;compared to double-pipe condensers, the shell-and-bube condenser has higher heat exchange coefficient,can be subject to mechanical or chemical cleaning.
d.Polyester spray
Three rounds of electrostatic spray provide better anti-corrosive capacity and keeps newness in any environments
e.Eeecient and tranquil
Low-noise double air intake centrifugal fan can achieve the air suppply effect comparable by high-speed running of other fans; exclusive damper ensures stable running
f.Efficient intellient control
The units enjoys microcomputer control simplified operation interface,automatic temperature sensation and regulation functions,achieves intelligent control and failure diagnosis
2)Product model
| Items Type | HWD60(E) | HWD90(E) | HWD110(E) | HWD150(E) | HWD170(E) | HWD200(E) | HWD230(E) | HWD280(E)HWL280(E) | HWD340(E) HWL340(E) |
| HWL60(E) | HWL90(E) | HWL110(E) | HWL150(E) | HWL170(E) | HWL200(E) | HWL230(E) |
| HWM60(E) | HWM90(E) | HWM110(E) | HWM150(E) | HWM170(E) | HWM200(E) | HWM230(E) |
| Unit Performance | Cooling Capacity | BTU/h | 56500 | 90000 | 113000 | 136500 | 169400 | 202400 | 226000 | 282000 | 339000 |
| KW | 16.6 | 26.5 | 33.1 | 40 | 49.7 | 59.6 | 66.2 | 82.3 | 99.4 |
| *Electric Heating Capacity | BTU/h | 30700 | 51200 | 61400 | 81900 | 81900 | 81900 | 122800 | 153500 | 184200 |
| KW | 9 | 15 | 18 | 24 | 24 | 24 | 36 | 45 | 54 |
| Air Volume | m3/h | 2700/2250 | 4100/3600 | 5400/4500 | 7100/6000 | 8500/7100 | 9700/8100 | 10800/9000 | 13800 | 16800 |
| Extermal Static Pressure | Pa | 100/0 | 120/0 | 120/0 | 180/0 | 220/0 | 220/0 | 220/0 | 240 | 260 |
| Noise Level | dB(A) | 52/50 | 53/50 | 53/50 | 56/52 | 58/53 | 58/53 | 62/56 | 65 | 65 |
| Voltage | 3N~380V/50HZ | 3N~380V/50HZ |
| Refrigerating System | Compressor | Type | Hermetic Scroll Compressor | Hermetic Scroll Compressor |
| Power | KW | 3.75 | 3.75+2.25 | 3.75×2 | 4.5×2 | 3.75×3 | 4.5×3 | 3.75×4 | 4.5×4 | 9×2+3.75 |
| Condenser | Type |
| Shell and Tube | Shell and Tube |
| Water Flow | m3/h | 3.5 | 5.5 | 6.8 | 8.8 | 11 | 13 | 14.6 | 17.1 | 20.5 |
| Water Pressure Lose | mH2O | 2.5 | 2.8 | 2.8 | 2.8 | 2.9 | 2.9 | 2.9 | 2.9 | 3.0 |
| Connection Pipe | in/mm | /DN32 | /DN40 | /DN40 | /DN40 | /DN50 | /DN50 | /DN50 | /DN50 | /DN40 |
| Evaporator | Type | Cooper tubes with fins |
| Fin type | Slotted-type Two-way Aluminum Fin |
| Refrigerant | Type | R22,R407C |
| Volume Control | Capillary Tube | Expansion Valve |
| Air Sending System | Fan | Type | Ultra-low-noise Centrifugal |
| Drive Method | Direct- drive | Belt-drive |
| Motor | Power | KW | 0.55/0.28 | 0.55×2/0.28×2 | 0.55×2/0.28×2 | 1.5/1.1 | 2.2/1.5 | 3/2.2 | 3/2.2 | 4 | 4 |
| * Electric Heater | Power | KW | 9 | 15 | 18 | 24 | 24 | 24 | 26 | 45 | 54 |
| Weight | kg | 220 | 250 | 330 | 380 | 500 | 556 | 620 | 660 | 720 |
|
|
| Type | HWL400(E) | HWL450(E) | HWL510(E) | HWL570(E) | HWL620(E) | HWL680(E) | HWL820(E) |
| Items |
|
| Unit Performance | Cooling Capacity | BTU/h | 396000 | 452000 | 509000 | 565000 | 622000 | 678000 | 815000 |
| KW | 119.0 | 132.6 | 149.0 | 165.7 | 182.2 | 198.8 | 238.3 |
| *Electric Heating Capacity | BTU/h | 204700 | 211200 | 266000 | 286600 | 327500 | 35800 | 40900 |
| KW | 60 | 72 | 78 | 84 | 96 | 105 | 120 |
| Air Volume | m3/h | 19200 | 21600 | 23500 | 26800 | 28600 | 32800 | 38000 |
| Extermal Static Pressure | Pa | 260 | 280 | 300 | 320 | 320 | 360 | 400 |
| Noise Level | dB(A) | 67 | 68 | 69 | 70 | 72 | 72 | 73 |
| Voltage | 3N~380V/50HZ |
| Refrigerating System | Compressor | Type |
| Hermetic Scroll |
| Power | KW | 9.0×3 | 9×3+3.75 | 9×3+7.5 | 9×4 | 9×4+4.5 | 9×5 | 9×6 |
| Condenser | Type |
| Shell and Tube |
| Water Flow | m3/h | 21.6 | 24.4 | 26.2 | 28.0 | 36.5 | 40.0 | 42 |
| Water Pressure Lose | mH2O | 3.8 | 4.6 | 5.1 | 5.4 | 5.6 | 6.2 | 6.3 |
| Connection Pipe | in/mm | /DN65 | /DN50 | /DN50 | /DN50 | /DN65+ 2"/DN50 | /DN65+2"/DN50 | /DN65 |
| Evaporator | Type |
| Fin with Tube |
| Fin type |
| Slotted-type Two-way Aluminum Fin |
| Refrigerant | Type |
| R22,R407C,R410a |
| Volume Control |
| Expansion Valve |
| Refrigerant Charge | kg | 7.5×3 | 7.5×3+3.5 | 7.5×3+7 | 3.7×4 | 7.5×4+3.7 | 7.5×5 | 7.5×6 |
| Air Sending System | Fan | Type |
| Low-noise Centrifugal |
| Drive Method |
| Belt-drive |
| Motor | Power | KW | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 |
| * Electric Heater | Power | KW | 60 | 72 | 78 | 84 | 96 | 105 | 120 |
| Weight | kg | 800 | 910 | 1000 | 1080 | 1200 | 1260 | 1465 |
3)Company Culture:
Serve the society with technology, serve the customer with heart, become a first level air conditioning company in China.
Innovation, loyalty, responsibility, value.
Provide customer with high quality product and considerable service.
4)Our services:
1) Changing on material, color, shape, construction:Acceptable.
2) General inspection on fixing before packing
4) We can offer you premium quality , competitive price, prompt delivery and low minimum orders.
5) OEM,ODM service.
5)Project and client:
No |
Project Name ( China) |
Industry |
Area |
1 |
Zhongshan people hospital |
Hospital |
Zhongshan |
2 |
Hankou Railway Station, Union Hospital, Wuhan Branch |
Hospital |
Wuhan |
3 |
Wuhan City, Wuchang Railway Hospital |
Hospital |
Wuhan |
4 |
Three townships Zhongshan People's Hospital |
Hospital |
Zhongshan |
5 |
Zhujiang hospital of Guangzhou |
Hospital |
Guangzhou |
6 |
Zhongshan Garden Hotel |
Hotel industry |
Zhongshan |
7 |
Western Sunshine Hotel, Zhongshan |
Hotel industry |
Zhongshan |
8 |
Shunde Golden Hotel |
Hotel industry |
Foshan |
9 |
East China Hotel in Guangzhou |
Hotel industry |
Guangzhou |
10 |
Nanyou Zhuhai hotel |
Hotel industry |
Zhuhai |
No |
Company Name ( Overseas) |
Product |
Country |
1 |
SB Global Energy |
Air cooled ducted split |
Holland |
2 |
Bentos pharmaceutical products Ltd. |
Clean air conditioners |
Nigeria |
3 |
SOGAMEF |
Air cooled chiller |
Gabon |
4 |
SeaService shipping |
Marine air conditioner |
Russia |
5 |
EURO STANDARD LIMITED |
Fresh Air Handling Unit |
New Zealand |
6 |
Henrich trading center |
Air cooled/water cooled air conditioner |
Philippines |
7 |
Marine Engineering Systems Pte.Ltd |
AHU, chiller,etc |
Singapore |
8 |
Elektro Werner Heitzinger |
Heat recovery air handling unit |
Austria |
9 |
Nyborg Marine Equipments AS |
Marine Air Handling Units |
Norway |
10 |
Wilfred Limited |
Heat recovery air handling unit |
UK
|
Guangdong Head-Power Air Conditioning Co., Ltd., located in Shiling Chenbian Industry Area, Shishan town, Nanhai District, Foshan, Guangdong, China. We are a professional manufacture in HVAC filed, engaged in air conditioning area for over ten years. Our products include chillers, ducted air conditioners, packaged air conditioners, air handling units, etc.
Facilities:
Our factory has introduced many advanced equipments and technologies from aboard and built the most authoritative platform for product testing. Besides we have a close relationship with Central South University in Hunan Province and cooperation with some famous institutes. With so strong technical background, we make sure all the products meet the technical standards of the country.
Products:
We provide a wide range of products in Air Conditioning and Refrigerating, including Water & Geothermal Source Heat Pump Chiller, Air Cooled Chillers, Water Cooled Chiller, Water Source Heat Pump, Air cooled Scroll Water Chillers, Ducted Split Air Conditioner, Air Source Heat Pump Water Heater, Fan Coil Unit, Air Handling Unit, Heat Recovery Fresh Air Handling Unit, Precision Air Conditioners, Dehumidifiers, etc.
Besides we can provide Integrated Solutions for Cooling, Heating and Hot Water. This system is specially designed for energy conservation. It is suitable for building that needs to cool in summer and heat in winter, which also needs hot water all the year round.
Certificates:
The products of our company have the characteristics of low noise, energy conservation and high efficiency. Head-Power follows ISO9001 international quality control system and ISO14001 international environment control system strictly, thus our product quality and services are ensured.
Welcome friends both at home and abroad to choose our products, and we'll provide you with the best products and services.
The aim of our company:
Provide high quality products, satisfy every client!
