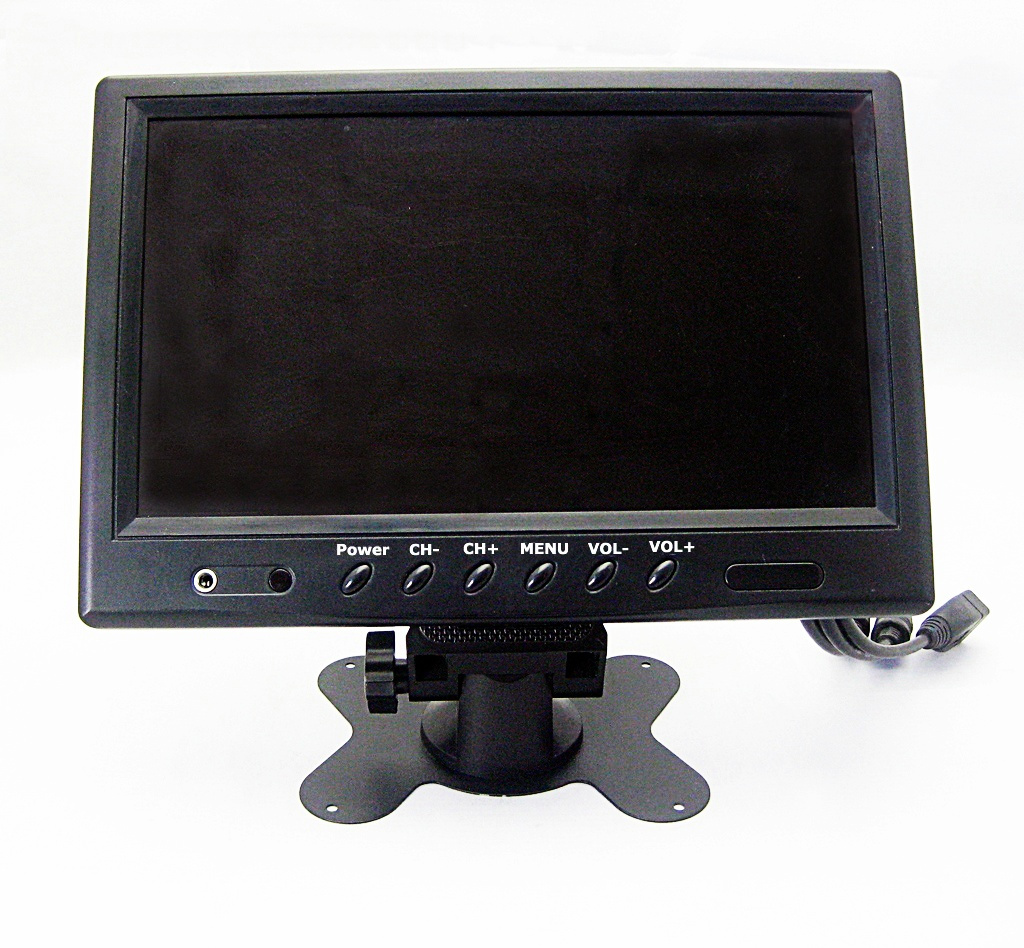

9 Inch TFT LCD Display
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
VV-90A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size :9 Inch: |
Resolution: 800 X 480 Pixels |
| Ratio:16:9: |
Brightness: 300 CD/M2 |
| On Screen Display (OSD): Remote OSD: |
Interface:VGA/BNC/RCA Optional |
| Application: |
Surveillance |
| Feature: |
LED Backlight Display |
Product Description
Specifications:
Screen: 9-inch
Case/bezel color: Black/silver
Touch monitor performance: Standard
Display type: 16: 9 ratio
9 inches active matrix TFT LCD
Native resolution: 800 X 480 at 60, 1, 024 X 768P at 75Hz
Synchronization range: 30-80kHz horizontal, 55-75Hz vertical
Pixel pitch: 0.1905 X 0.1905mm
Pixel response time rise + fall (typically): 10ms
Plug-and-play: VESA DDC 1/2B
On screen display (OSD): Remote OSD
Colors: 16.7 millions
Brightness: 300 CD/m²
Contrast ratio typically: 400: 1
Viewing angle horizontal (left/right): 170° (85/85° ) (from center, CR: ≥ 5) vertical (up/down): 160° (70/90° )
Back-light lamp lifespan hours to 1/2 brightness: 50, 000
Input video formats: Analog RGB, CVBS NTSC/PAL (auto)
Provider weight (approximately) monitor/shipping: 1.8kg
Power supply:
External range: 85-265V AC, 50-60Hz
Power consumption: <10W typically
Temperature range:
Operating range: 0-50° C
Storage range: 20-80° C
Relative humidity non-condensing:
Operating range: 10-90% RH
Storage range: 5-90% RH
Accessories:
VGA cable
Video/audio cable
BNC cable (optional)
Remote
Power supply adapter
Power lead (US, EU, UK and more type)
User's manual (English)
Bracket
Typical applications:
Entertainment/casino systems
Outdoor and indoor kiosks
Entertainment
Transport and ticketing
Television stations
Education
Exhibition
Advertisement
Hotels/hospitality
Car PCS
Industry equipment
Banking
Customized solutions
Vast vision industry Co., Ltd, Established in 2004, is a high-tech enterprise specialiazed in development, production and marketing of LCD/LED monitors and modulaes. We our campany emphasize small size ranging froam 2.4" to 20.1", can offer OEM/ODM service.
As a professional manufacture and exporters, we gain much honor in various field, u can see our monitor in security monitoring, hospital, supermarket, bank, on bus/car/truck/board, factory production line, BGA station, laboratory and some other special circumstance.
