| Prod Model: |
VV-12T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TFT |
| Application: |
Mobile Phone |
| Aspect Ratio: |
16:10 |
| Feature: |
3D Display |
| Screen Size: |
≤17" |
| Interface Type: |
VGA |
Product Description
Description:
Specification:

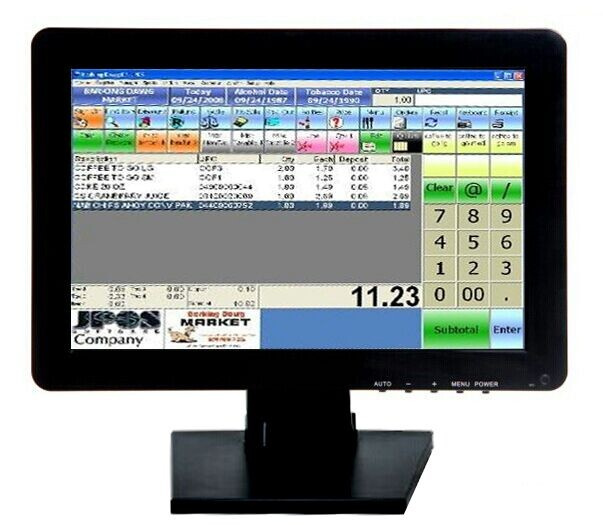

12 -inch widescreen LCD monitor 16: 10
Size 12 -inch TFT-LCD digital screen 16: 10
Physical Resolution: 1280 * 800
Pixel pitch: 0.285
Aspect Ratio: 16: 10
Response time: 12ms
Brightness: 450 cd/m2
Contrast 800: 1
Viewing Angle 120 /120
Display Colors 16.7M
Video input CVBS (BNC) × 2
PC input VGA × 1
Video Output CVBS (BNC) × 1 AV * 1
HD Output: HDMI
Systems Control: English language switching, contrast, brightness, sharpness, color saturation, hue, signal switching, source browser, color temperature adjustment, heavy penetrance switch operating status display
Operation: Infrared remote control panel buttons
Power supply: 12V
Video system PAL, NTSC
Wide voltage design 100 ~ 240V AC
DC12V 2.6A
Power consumption ≤ 50W
Dimensions 310 * 211 * 44MM ( with base of 310 * 255 * 44 )
Display area size 260 * 162mm
Vesa hole 75 * 75mm
Weight ( with packaging ) about 2KG
Installation Desktop screen wall-mounted combination formula
Storage Temperature -20oC ~ 50oC
Operating temperature 0oC ~ 50oC
Operating Humidity 10 ~ 90%
Shell Material Plastic
Function: 3D Noise Reduction
Accessories: Power Line BNC
Vast vision industry Co., Ltd, Established in 2004, is a high-tech enterprise specialiazed in development, production and marketing of LCD/LED monitors and modulaes. We our campany emphasize small size ranging froam 2.4" to 20.1", can offer OEM/ODM service.
As a professional manufacture and exporters, we gain much honor in various field, u can see our monitor in security monitoring, hospital, supermarket, bank, on bus/car/truck/board, factory production line, BGA station, laboratory and some other special circumstance.
