| Prod Model: |
AD705 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Resolution: |
720*480p |
| Bit Rate: |
Max. 5m Bits |
| Application: |
Indoor AD Player |
| Type: |
LCD Advertising Screen |
Product Description
Key Function
1. Upgrade contents of the memory card (or Built-in memory) by simply inserting an USB flash drive
2. The player starts automatically when the IR body sensor detects an approaching viewer.
3. Timer function: The player turns on/off at the same time everyday according to your setting
Main Function

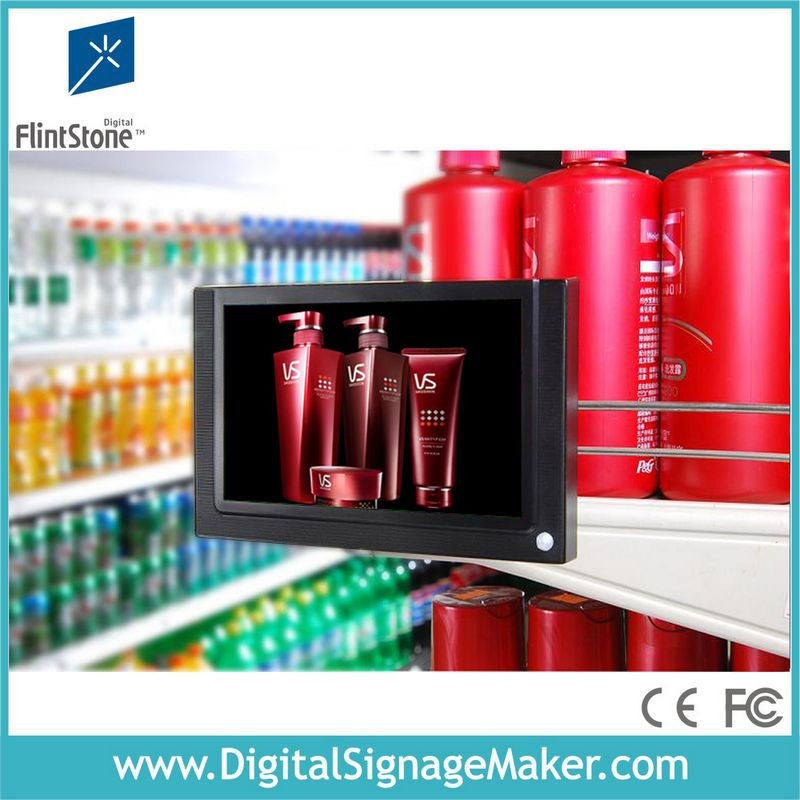

1. Play MP4 movie and digital photos; Built-in 7 inch TFT LCD screen, with Acryl protection; Easy-to-install on supermarket shelves, tabletop, showcase, car and taxi, etc.
2. Play from:
--Secure Digital Memory Card (SD card)
--Built-in memory
3. Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card
4. Timer function: The player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame
5. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing
6. IR (infrared) body sensor: Player starts automatically when the sensor detects an approaching viewer
7. Theft-protection device effectively prevent the player and SD card from being stolen in public place
8. Audio output: 2 X built-in high quality stereo speakers
9. With professional easy-to-use stand set; Hang on wall or stand on table
Technical Specifications
1. TFT LCD screen(digital panel)
LCD Size: 7 Inch
Active Area: 154.08 (W) * 85.92 (H) (mm)
Pixel Pitch: 0.0642 (W) * 0.1790 (H) (mm)
Screen Ratio: 16: 9
Resolution: 800 X 480 (H*V)
Brightness: 250CD/m2
Color: 262K/16.7M
Contrast Ratio: 500: 1
View Angle: 70° /70° /50° /70° (L/R/U/D)
Response Time: 10/15ms
2. Compatible file formats:
Picture formats: JPEG
Video formats: MPG-1 (VCD), MPG-2 (DVD), MPG-4 (DIVX, XVID, Dx50)
3. Play from:
Memory card: SD card
Built-in flash memory: Optional, confirm before production
4. Output:
Built-in stereo loudspeaker power: 2 X 2W
5. Others:
Input Voltage: AC100V-240V (50Hz-60Hz)
Power Supply: DC1A, 12W (MAX)
Working Temperature: 0~45
Storage Temperature: -20~45
Working Humidity: 20%-80%
Storage Humidity: 10%-95%
Casing: Plastic
Body Size: 204(L) * 125(W) * 36(H) (mm)
Body Weight: 0.6 (kg)
Standard Accessories: AC power adaptor, Plastic stand, Users manual or CD disk, Remote control, Power port cover
6. Neutral Packing:
Unit Size: 34.5 * 17 * 8.3 (cm)
Unit Weight: 1.0 (kg)
Carton Size: 70 * 36.5 * 27.5 (cm)
Carton Weight: 12.6 (kg)
Units Per Carton: 12 PCS
20-ft. Container: 4608 PCS maximum
