| Prod Model: |
AD1005WP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Resolution: |
720*480p |
| Bit Rate: |
Max. 5m Bits |
| Application: |
Indoor AD Player |
| Type: |
LCD Advertising Player |
Product Description
Key Function
1. Upgrade contents of the memory card (or Built - in memory) by simply inserting an USB flash drive
2. The player starts automatically when the IR body sensor detects an approaching viewer.
3. Timer function: The player turns on/off at the same time everyday according to your setting
4. IR (infrared) sensor can be disabled or enabled
5. Function keys on the player can be disabled or enabled
Main Function

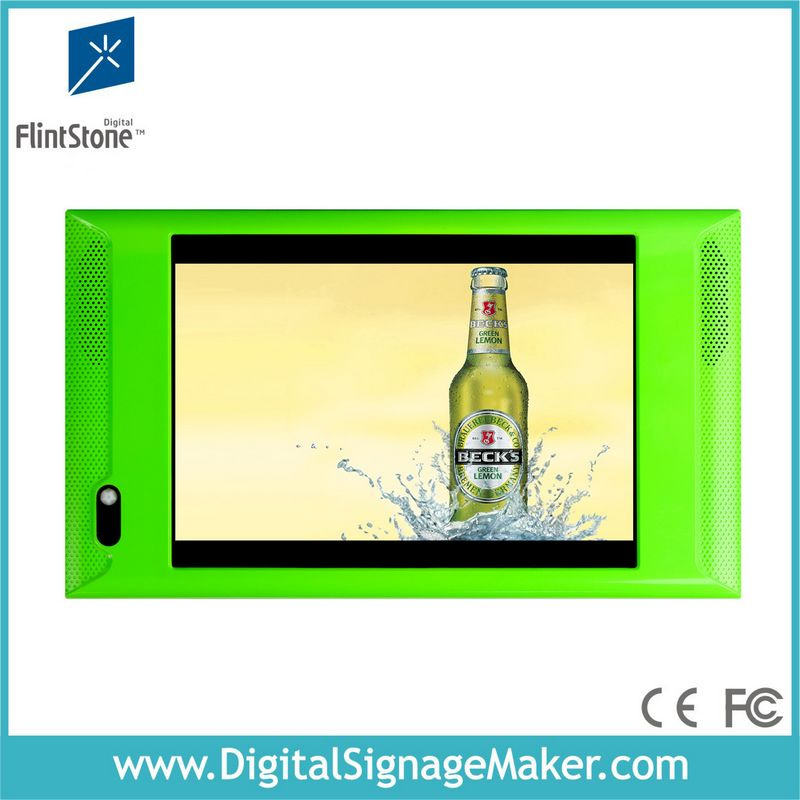

1. Play MP4 movie and digital photos; Built-in 10.2 inch TFT LCD screen, with tempered glass protection; Easy-to-install on supermarket shelves, tabletop, showcase, car and taxi, etc.
2. Play from:
--Secure Digital Memory Card (SD card)
--Built-in memory
3. Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card.
4. Timer function: The player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame.
5. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing.
6. IR (infrared) body sensor: Player starts automatically when the sensor detects an approaching viewer; This function can be disabled or enabled.
7.7 function keys on the players, they can be turned on/off.
8. Theft-protection device effectively prevent the player and SD card from being stolen in public place.
9. Audio output: 2 X built-in high quality stereo speakers.
10. With professional easy-to-use stand set; Hang on wall or stand on table.
Technical Specifications
1. TFT LCD screen
LCD Size: 10.2 Inch
Active Area: 222.0 (W) * 132.48 (H) (mm)
Pixel Pitch: 0.0925 (W) * 0.2760 (H) (mm)
Screen Ratio: 15: 9
Resolution: 800 X 480 (H*V)
Brightness: 250CD/m2
Color: 262K (6-bit)
Contrast Ratio: 300: 1
View Angle: 65° /65° /45° /65° (L/R/U/D)
Response Time: 15/20ms
2. Compatible file formats:
Picture formats: JPEG
Video formats: MPG-1 (VCD), MPG-2 (DVD), MPG-4 (DIVX, XVID, Dx50)
3. Play from:
Memory card: SD card
Built-in flash memory: Optional, confirm before production
4. Output:
Built-in loudspeaker power: 2 X 2W
5. Others:
Input Voltage: AC100V-240V (50Hz-60Hz)
Power Supply: DC1A, 12W (MAX)
Speaker: Built-in 2X2W high quality stereo loudspeakers
Working Temperature: 0-45
Storage Temperature: -20- 60
Working Humidity: 20%-80%
Storage Humidity: 10%-95%
Casing: Plastic (ABS + PC)
Body Size: 330(L) * 190(W) * 40(H) (mm)
Body Weight: 1.1 (kg)
Standard Accessories: AC power adaptor, L shape bracket, Users manual or CD, Remote control, Power port cover
6. Neutral Packing:
Unit Size: 40 * 24.5 * 13.5 (cm)
Unit Weight: 2.0 (kg)
Carton Size: 70 * 41.5 * 27 (cm)
Carton Weight: 11.5 (kg)
Units Per Carton: 5 PCS
20-ft. Container: 1805PCS
