| Prod Model: |
AD1928WP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Resolution: |
1920*1080P |
| Bit Rate: |
Max. 30m Bits |
| Type: |
TFT |
| Application: |
Indoor |
| Aspect Ratio: |
16:10 |
| Feature: |
With Remote Control |
| Screen Size: |
19" |
| Interface Type: |
RGB |

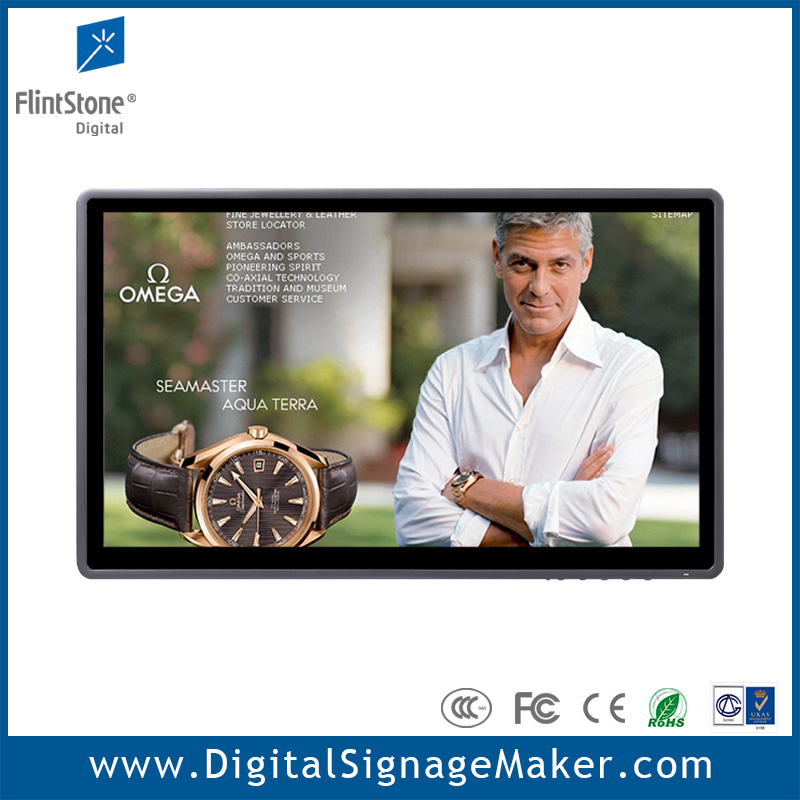

Product Description
Key Function
1. High definition version, with rolling caption display and playing log function.
2. Real-time display on / off; Pictures playing and videos playing can be mixed.
3. Upgrade contents of the memory card (or Built-in memory) by simply inserting an USB flash drive.
4. Timer function: The player turns on / off at the same time everyday according to your setting.
5.7 function keys on the players can control the player instead of the remote control.
Main Function
1. Built-in 18.5 inch TFT LCD screen, with tempered glass protection; Easy-to-install on supermarket shelves, tabletop, showcase and lift, etc.; Plastic casing.
2. Play from:
--CF/ SD card or USB drive (Memory type should be confirmed before production)
--USB flash drive
--Built-in memory
3. Upgrade contents of the memory card (or built-in memory) by simply inserting an USB flash drive, no need to take out of the memory card;
COPYADD option: Add new contents and keep the previous contents;
COPYDEL option: Add new contents and delete all previous contents
4. Timer function: The player powers on / off automatically everyday at the time pre-set; It can also automatically play and non-stop replay within the pre-set time frame
5. No DVD style mechanical movement, hence more durable and suitable for long-hour advertising playing
6.7 function keys on the players can control the player instead of the remote control.
7. Theft-protection device effectively prevent the player and CF card from being stolen in public place and protect the power cord being pull out easily
8. Audio output: 2 X built-in high quality stereo speakers
9. With professional easy-to-use stand set; Hang on wall or stand on table
Technical Specifications
1. TFT LCD screen:
LCD Size: 18.5 Inch
Active Area: 409.8 (W) * 230.4 (H) (mm)
Pixel Pitch: 0.300 (W) * 0.300 (H) (mm)
Screen Ratio: 16: 9
Resolution: 1366 X 768 (H*V)
Brightness: 250CD/m2
Color: 16.7M (8-bit)
Contrast Ratio: 1000: 1
View Angle: 85° /85° /80° /80° (L/R/U/D)
Response Time: 1.3/3.7 ms
2. Compatible file formats:
Picture formats: JPEG, BMP
Video formats: MPG, MPG-1, MPG-2, MPG-4, AVI, MP4, RM, RMVB
Video decode maximum resolution: 1920 * 1080P
Video maximum bit stream: 30MB/s
3. Play from:
Memory flash: CF/ SD card
Built-in flash memory: Optional, confirm before production
USB: High speed USB 2.0
4. Output:
Built-in 2X2W high quality stereo loudspeakers
5. Others:
IR body Sensor Distance: 3m, Optional
Remote Controller Distance: 4-5m
Input Voltage: AC100V-240V (50Hz-60Hz)
Power Supply: DC4A, 48W (MAX)
Speaker: Built-in 2X2W high quality stereo loudspeakers
Working Temperature: 0-45
Storage Temperature: -20- 60
Working Humidity: 20%-80%
Storage Humidity: 10%-95%
Casing: Plastic (ABS + PC)
Body Size: 515 (L) * 300 (W) * 51 (H) (mm)
Body Weight: 5 (kg)
Standard Accessories: AC power adaptor, Users manual or CD, Remote control
6. Neutral Packing:
Unit Size: 57.5 * 19 * 45 (cm)
Unit Weight: 6.4 (kg)
Carton Size: 59.5 * 39.5 * 47.5 (cm)
Carton Weight: 14 (kg)
Units Per Carton: 2 PCS
