Prod Model: |
SZTP1263-7-W5R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
7.0 Inch |
Structure: |
Film + Glass |
Connector: |
Pin 5 Plug Connector |
Thickness: |
1.4 ± 0.15 mm |
Touch Media: |
Finger, Touch Pen |
Type: |
5 Wire Resistive Touch Screen |
Ratio: |
16:9 |
Resolution: |
4096*4096 |
Aspect Ratio: |
16:9 |
Application: |
GPS System |
Screen Type: |
Resistive |
Resistive Touch Screen Type: |
Analog |
Screen Size: |
7 Inch |
Customized: |
Custom Service Available |
Product Description
Product Description

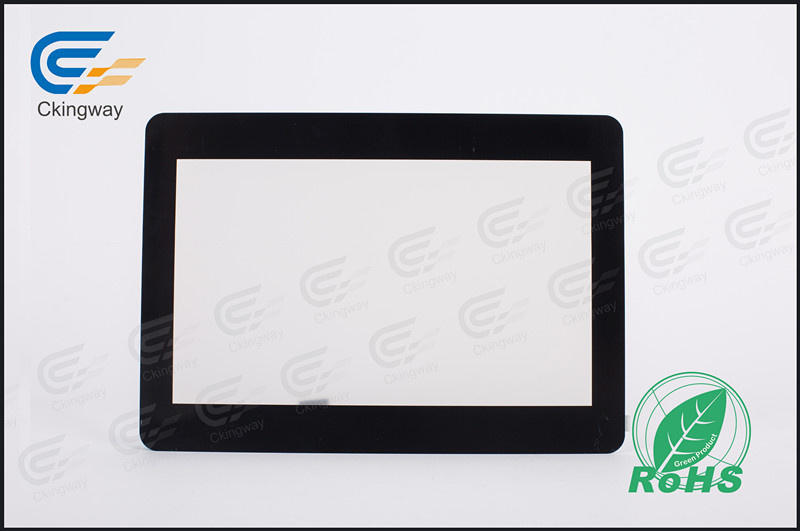

The Feahters Of 7 TFT LCD Display USB Multi Resistive Touch Screen As Bellow:
1. The Size Of The Product Is 7.0 Inch.
2.It's High Accuracy And Sensitivity.
3.It Can Adapt To Adverse Environmental Conditions.
4.It's 5 Wire Restistive Touch Screen With 5 Plug Connector.
5.Can Be Touched By Finger Or Touch Pen.
Size | 7.0 inch |
Structure | Film + Glass |
Connector | Pin 5 plug connector |
Thickness | 1.4 ± 0.15 mm |
Touch Media | Finger, Touch Pen |
Type | 5 Wire Resistive Touch screen |
Ratio | 16:9 |
Resolution | 4096*4096 |
Response Time | ≤ 10 ms |
Supply Voltage | 5V DC , 35 mA |
Transparent | ≥ 75% |
Screen Resistance | ≤250Ω |
Insulation Resistance | ≥20MΩ(10V DC) |
Pressure | 50 - 150 g |
Surface Hardness | 3H |
Life Span | > 1,000,000 time touches |
Operating Temperature | - 10ºC ~ +60ºC |
Storage Temperature | - 20ºC ~ +70ºC |
Storage Humidity | 20 ~ 85% RH (except congeal fog) |
Custom Service | Available |
Packing & Delivery Terms Of 7 TFT LCD Display USB Multi Resistive Touch Screen:
Packing: Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Delivery:3-5 Days After Your Full Payment.
The Terms Of Payment Of 7 TFT LCD Display USB Multi Resistive Touch Screen:
1.Full payment before delivery.
2.Prepay 30% as the deposite,T/T 70% the balance before delivery.
3.Prepay 50% as the deposite and mould fee ,T/T the balance before delivery.
4.Payment method can be nogotiated.
About Warranty: 1 Year without damaged by people actions.
