| Prod Model: |
SZTP1150-6.95 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
6.95" Inch |
| Model: |
Sztp1150-6.95 |
| Structure: |
Pet + Film + Glass |
| Connector: |
Pin 4 Plug Connector |
| Thickness: |
1.4 ± 0.15 mm |
| Touch Media: |
Finger, Touch Pen |
| Type: |
4 Wire Resistive Touch Screen |
| Ratio: |
16:9 |
| Resolution: |
4096*4096 |
| Aspect Ratio: |
16:9 |
| Application: |
Industrial Control System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Analog |
| Screen Size: |
6.95 Inch |
| Customized: |
Cutom Service Available |
Product Description
1.Product Descreption

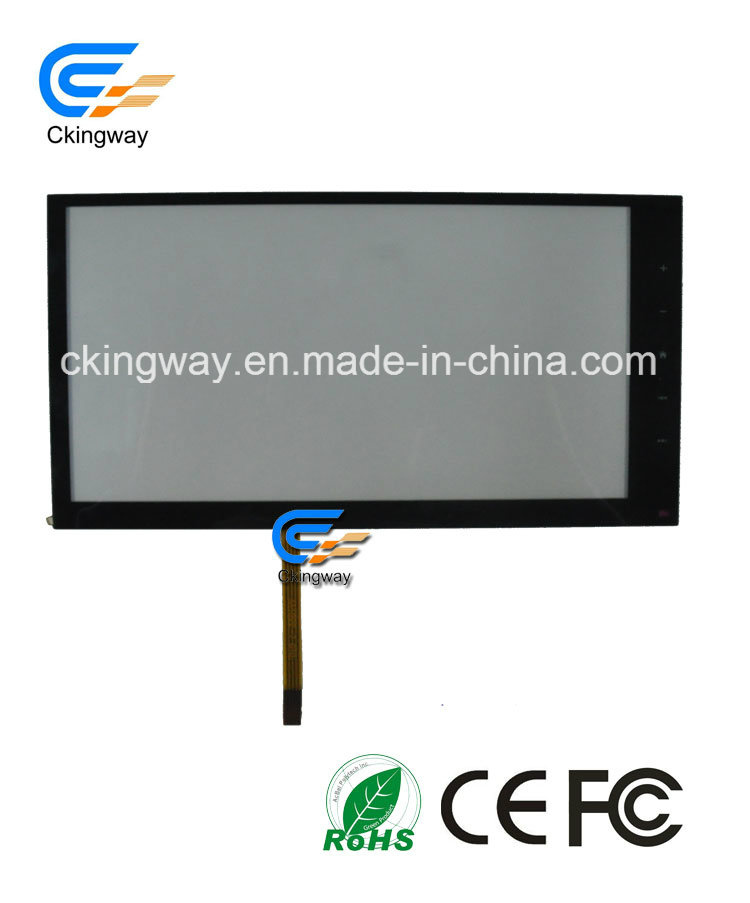

The Product Details of 6.95'' TFT LCD Display USB Multi Resistive Touch Screen :
6.95 inch size.
Custom service is available.
Low cost solution, Low power consumption.
Consistently accurate, fast touch response.
It can adapt to adverse environmental conditions.
Size | 6.95" inch |
| Structure | PET + Film + Glass |
| Connector | Pin 4 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen |
| Type | 4 Wire Resistive Touch screen |
| Ratio | 16:9 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC , 35 mA |
| Transparent | ≥ 75% |
| Screen Resistance | X:100-500Ω Y:200-1000Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 50 - 150 g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time knocking ;
≥ 100,000 time in paddling |
| Operating Temperature | - 10ºC ~ +60ºC |
| Storage Temperature | - 20ºC ~ +70ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
2.Packing & Shipping
The Packing of 6.95'' TFT LCD Display USB Multi Resistive Touch Screen:
Anti-Static Foam+Paper Card+Ragged Bag+Carton
The Shipping of 6.95'' TFT LCD Display USB Multi Resistive Touch Screen:
5 work days after your full payment.
3.Company Information
About Our Company:
SHENZHEN CKINGWAY TECHNOLOGY CO., LTD
GUANGDONG, CHINA(MAINLAND)
ACCOUNT REGISTERED IN 2013
BUSINESS TYPE: MANUFACTURE, TRADING COMPANY
Ckingway Technology Limited is a professional manufacturer engaged in the research, development, production, sale and service of LCD. Ckingway with well-equipped testing facilities and strong technical force. We are located in Shenzhen and have convenient transportation access.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in MP3\Smart phone Series\Mobile Series\DSC Series\PND Series etc. And other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Website:www.ckingway.com
4.Warranty
About Warranty:
1 Year without damaged by people actions.
5.FAQ
The FAQ of 6.95'' TFT LCD Display USB Multi Resistive Touch Screen:
1.Why Choose Ckingway?
1)Enough industrail experience and involved main markets all over the world.
2)Dedicated and professional sales team will offer you 24 hours online and immediate service.
3)Precise and advanced equipments.
4)High quality and sensitivity.
5)Many kinds of products with all size.
2. What can we do for you:
Custom service is available.
3.What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production.
4.Payment methods?
T/T and Western union etc.The details of our payment terms is showing above.
5.How long is the warranty period?
About Warranty: Usually 1 Year without damaged by people actions. It depends on different products.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
6.Payment Terms
The Payment Terms of 6.95'' TFT LCD Display USB Multi Resistive Touch Screen:
Full payment before delivery.
Prepay 30% as the deposite,T/T 70% the balance before delivery.
Prepay 50% as the deposite and mould fee ,T/T the balance before delivery.
Payment method can be nogotiated.
