| Prod Model: |
SZTP1263-7-W5R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7.0 Inch |
| Structure: |
Film + Glass |
| Connector: |
Pin 5 Plug Connector |
| Thickness: |
1.4 ± 0.15 mm |
| Touch Media: |
Finger, Touch Pen |
| Type: |
5 Wire Resistive Touch Screen |
| Ratio: |
16:9 |
| Resolution: |
4096*4096 |
| Aspect Ratio: |
16:9 |
| Application: |
GPS System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Analog |
| Screen Size: |
7 Inch |
| Customized: |
Custom Service Available |
Product Description
Product Description

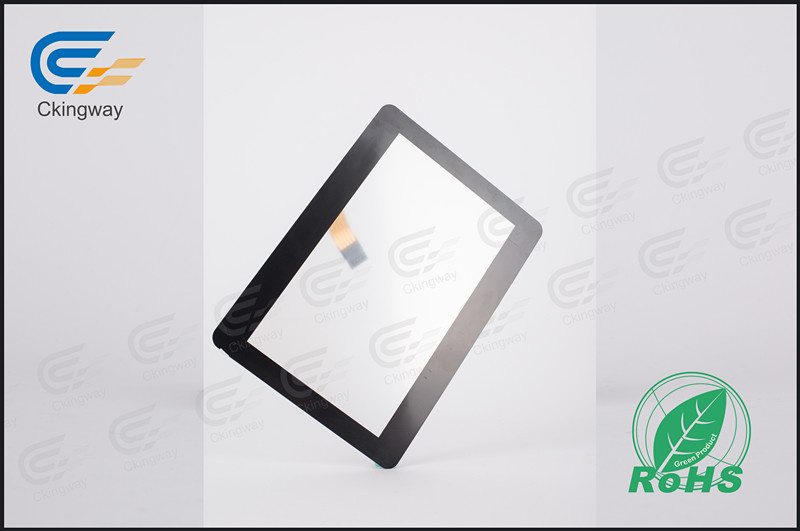

The Feahters Of 7 Inches Cheap TFT LCD Touch Screen Monitor As Bellow:
1. The Size Of The Product Is 7.0 Inch.
2.It's High Accuracy And Sensitivity.
3.It Can Adapt To Adverse Environmental Conditions.
4.It's 5 Wire Restistive Touch Screen With 5 Plug Connector.
5.Can Be Touched By Finger Or Touch Pen.
| Size | 7.0 inch |
| Structure | Film + Glass |
| Connector | Pin 5 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen |
| Type | 5 Wire Resistive Touch screen |
| Ratio | 16:9 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC , 35 mA |
| Transparent | ≥ 75% |
| Screen Resistance | ≤250Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 50 - 150 g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time touches |
| Operating Temperature | - 10ºC ~ +60ºC |
| Storage Temperature | - 20ºC ~ +70ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
Certifiacations
It met CE & ROHS certifications.
Company Information
About Our Company:
SHENZHEN CKINGWAY TECHNOLOGY CO., LTD
GUANGDONG, CHINA(MAINLAND)
ACCOUNT REGISTERED IN 2013
BUSINESS TYPE: MANUFACTURE, TRADING COMPANY
Ckingway Technology Limited is a professional manufacturer engaged in the research, development,
production, sale and service of LCD. Ckingway with well-equipped testing facilities and strong technical
force. We are located in Shenzhen and have convenient transportation access.
Our products are widely recognized and trusted by users and can meet continuously changing economic
and social needs. We welcome new and old customers from all walks of life to contact us for future business
relationships and mutual success!
Website:www.ckingway.com
Packing & Delivery
Packing & Delivery Terms Of 7 Inches Cheap TFT LCD Touch Screen Monitor:
Packing: Individual OPP Bag or Anti Static Bag Packing or Bubble Packing, Put all the goods into the FOAM Box, Outside with ragged bag, Then put it in the Carton, Pack it with tape and seal.
Delivery:3-5 Days After Your Full Payment.
Payment Terms
The Terms Of Payment Of 7 Inches Cheap TFT LCD Touch Screen Monitor:
1.Full payment before delivery.
2.Prepay 30% as the deposite,T/T 70% the balance before delivery.
3.Prepay 50% as the deposite and mould fee ,T/T the balance before delivery.
4.Payment method can be nogotiated.
Warranty
About Warranty: 1 Year without damaged by people actions.
FAQ
1.Why Choose Ckingway?
1)Enough industrail experience and involved main markets all over the world.
2)Dedicated and professional sales team will offer you 24 hours online and immediate service.
3)Precise and advanced equipments.
4)High quality and sensitivity.
5)Many kinds of products with all size.
2. What can we do for you:
Custom service is available.
3.What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production.
4.Payment methods?
T/T and Western union etc.The details of our payment terms is showing above.
5.How long is the warranty period?
About Warranty: Usually 1 Year without damaged by people actions. It depends on different products.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
