| Prod Model: |
SKD7VAT-9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
7 Inch Widescreen 16: 9 LCD Touchscreen SKD Module |
| Resolution: |
800X480 |
| Brightness: |
450CD/M Optional |
| Touchscreen: |
RS232&USB Interface |
| Style: |
Open Frame&SKD |
| Backlight: |
LED Backlight |
| Ratio: |
16: 9 |
| DOT Resolution: |
800X480 Pixels (up To1920×1440) |
| Input Signals: |
VGA,Auido,Video,S-Video |
| Output Signals: |
Audio(Earphone) |
| Type: |
TFT |
| Aspect Ratio: |
16:9 |
| Feature: |
LED Backlight Display |
| Application: |
Computer, Medical, Industrial |
| Screen Size: |
8.9" |
| Interface Type: |
HDMI, VGA, AV, DVI and AV |
Product Description
Description:

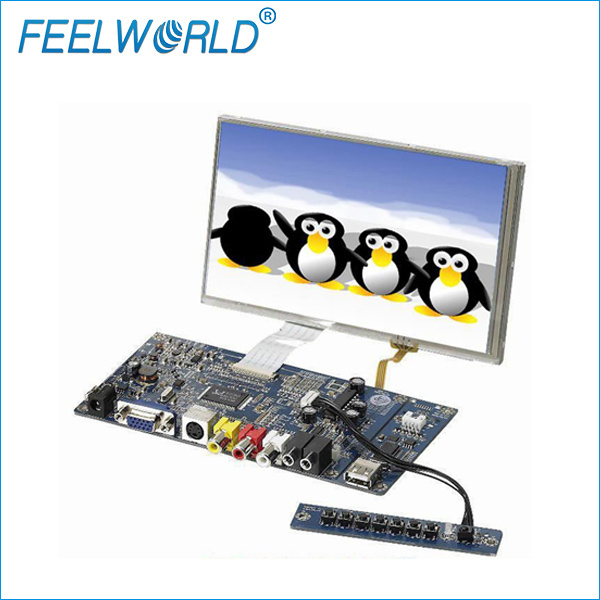

7 inch Widescreen 16: 9 LCD Touchscreen SKD Module display with high brightness 450cd/m
For Industrial Application
1.4&5 wire resistive touch optional
2. Backlight: LED
3. Aspect: 4: 3
4. Input Signal: VGA. Video, hdmiSpecification
| Specification |
| Description | 7" TFT LCD SKD (touchscreen optional) |
| Model: | SKD7VAT-9 (without touchscreen: SKD7VA-9) |
| Brightness: | 300cd/m² |
| Dot Resolution: | 800x480 pixels (up to1920×1440) |
| Touch Screen | 4&5Wire Resistive Touch(Optional) |
| Touch Interface | USB |
| Contrast Ratio: | 500:1 |
| Aspect Ratio: | 16:9 |
| Backlight: | LED |
| Viewing Angle: | 70°/70°(L/R) 50°/60°(U/D) |
| Input Voltage: | DC12V±15% |
| Input Signals: | VGA,Auido,Video,S-video(HDMI&DVI optional) /VGA,Audio,Video1,Video2(HDMI for optional) |
| Output Signals: | Audio(earphone) |
| Power Consumption: | ≤6W |
| WorkTemperature: | -20~60 |
| Store Temperature: | -30~70 |
| Unit Size: | 165L×104W×5.5H(mm) |
| Unit Weight: | 380g |
| Accessory | Optional Accessory | Packing |
| Home AC Adapter | HDMI cable | Box size | 31.5*19.5*7CM |
| Remote Controller |
| Per box G.W. | 2.5kgs |
| Touch Drive Disc(for touch) |
| Per Carton | 10pcs |
| Touch Pen(for touch) |
| Carton Size | 47.7*43.2*33.2cm |
| VGA cable |
| N.W. | 15kgs/carton |
| USB cable(for touch) |
| G.W. | 16kgs/carton |
