| Prod Model: |
FW789 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Destription: |
7 Monitor Sdi |
| Resolution: |
1280*800 |
| Acpect Radio: |
16:10 |
| Brightness: |
400 |
| Backlight: |
LED |
| Contrast: |
800:1 |
| Inputs: |
3G/HD/SD-Sdix2,HDMI,YPbPr,Video,L/R |
| Outputs: |
3G/HD/SD-Sdix2,HDMI,YPbPr,Video,Earphone |
| Input Voltage: |
DC 7-24V |
| Battery Palte: |
F970,P-D28s,Lp-E6,V-Mount,Anton |
| Type: |
IPS |
| Application: |
DSLR Camera |
| Aspect Ratio: |
16:10 |
| Feature: |
HDMI and Sdi |
| Interface Type: |
VGA |
| Screen Size: |
7" |
Product Description

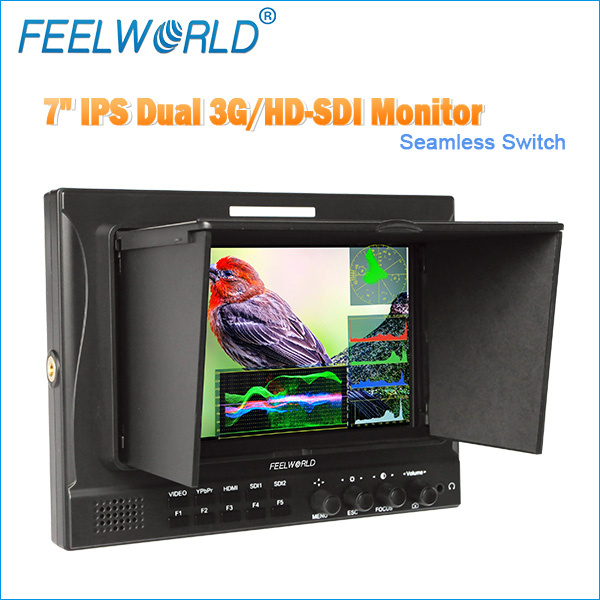

FEELWORLD 7-inch lcd monitor battery operated Dual 3G HD SDI seamless switch
The FW789 is one of the newest with waveform, vectorscope and RGB Histogram is now available. These key features assist the video professional in getting the shot right the first time. The FW789's 1280 X 800 high definition IPS panel is optimal for displaying its advanced software features. The FW789 is also equipped with false color and peaking, enabling the video professional to deliver precision shots in the field.
The FW789's HDMI input is complimented by Dual 3G-SDI input/output along with the feature of headphone audio out. With 2 SDI inputs, fast swap for toggling between both inputs, Seamless Switch. The FW789 also includes composite and component connections, giving you the versatility to support all of your signals and video equipment.
The customized function buttons can be tailored for your workflow and optimization. Furthermore, The FW789 is well suited for a variety of video applications, from the studio to on location. Enjoy high-resolution, versatile monitoring wherever you need it.
|
Specification |
|
Description: |
7" IPS Fully Featured Dual 3G-SDI Camera-Top Field Monitor |
|
Model: |
FW-789 |
|
Resolution: |
1280x800 |
|
Dot pitch |
0.117(W) x 0.117(H) |
|
Brightness: |
400cd/m² |
|
Contrast: |
800:1 |
|
Aspect ratio: |
16:10 |
|
Backlight: |
LED |
|
Response time |
25ms |
|
SDI Support Mode: |
ITU-R BT.656 |
576i |
|
SMPTE-125M |
480i |
|
SMPTE-274M |
1080i(60/59.94/50)
1080p(30/29.97/25/24/24fps/23.98/23.98fps) |
|
SMPTE-296M |
720p(60/59.94/50/30/29/25/24/23.98) |
|
SMPTE-424M |
1080i(60/59.94/50)
1080p(60/59.94/50) |
|
HDMI Support Mode: |
480i / 576i / 480p/576p |
|
1080i (60/59.94/50) |
|
720p (60/59.94/50/30/29/25/24/23.98) |
|
1080p(60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps) |
|
YPbPr |
480i / 576i / 576p |
|
1080i (60/50) |
|
720p (60/50) |
|
CVBS(video) |
NTSC 480i ,PAL 576i |
|
Inputs: |
3G/HD/SD-SDIx2,HDMI,Ypbpr,Video,Audio |
|
Outputs: |
3G/HD/SD-SDIx2,HDMI,Ypbpr,Video |
|
Viewing Angle: |
89°/89°(L/R) 89°/89°(U/D) |
|
Power Consumption: |
≤13W |
|
Input Voltage: |
DC 7~24V |
|
Install Way: |
1/4"-20 Thread Socket(All 4 Sides) |
|
working Temperature: |
–20~50 °C |
|
storage Temperature: |
–30~60 °C |
|
Unit Size: |
210L × 160W ×31.5H(mm) |
|
Unit Weight: |
630g |
|
Advanced Features |
|
*Seamless Switch |
|
*Vetor scope |
|
*Waveform |
|
*RGB Histogram |
|
*Histogram |
|
*Peaking Focus Assist |
|
*Camera 5D II Mode |
|
*Check Field(Mono/Red/Green/Blue) |
|
*Scan Mode |
|
*False Color |
|
*Exposure |
|
*Squared segmentation(Zoom one of the images to realize full screen) |
|
*Pixel-to-Pixel |
|
*Mirror image(L/D,L/R)/Freeze |
|
*Embedded Audio |
|
*Zoom-in |
|
*Ratio(4:3/16:9) |
|
*Center Marker/screen Marker |
|
*Color temp-adjust |
|
Standard Accessories |
Optional Accessories |
Packing Details |
|
Plastic Sun Shade |
Power Adapter |
Box size |
|
|
F970 Battery Plate |
V Mount Plate |
Per box G.W. |
|
|
Hot Shoe Mount |
DU28 Plate |
Per Carton |
|
|
Mini HDMI Cable |
Anton Plate |
Carton Size |
|
|
Tally Indicator |
E-6 Plate |
N.W. |
|
|
Operation Manual |
BNC Cable |
G.W. |
|
|
|
Gimbal bracket |
|
|
|
|
suitcase |
|
|
|
|
|
|
|
|
|
|
|
|
