| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7"-23.5" |
| Touch Panel: |
Capacitive Screen |
| Touch Panel Application: |
Use for Touch Computer, Monitor, Kiosk |
| Extended: |
with Touch Comtroller and Cables |
| Touch Times: |
Exceed 35 Million Times |
| Mult-Point: |
5-10 Points |
| Type: |
Touch Screen |
| Application: |
Computer |
| Feature: |
Touch Display |
| Screen Size: |
7"--23.5" |
Product Description

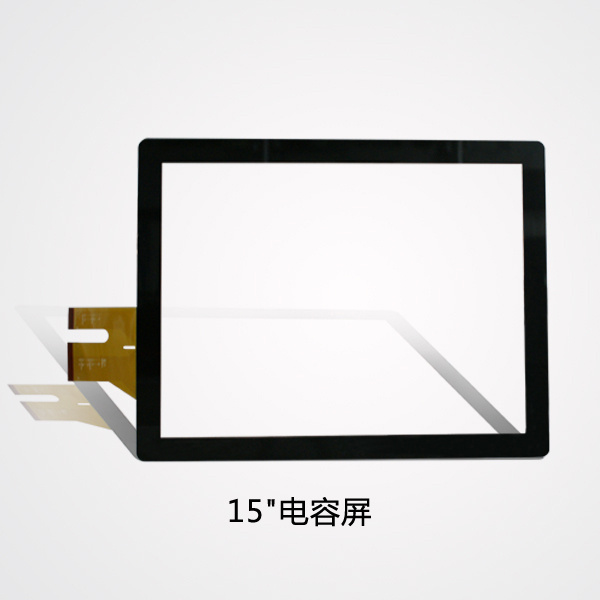

SPECIFICATION OF 15 INCH
Product model TK-1501-PF-C-2.4
Dimensions 15"
Structural GG
Drive form COB
Rati 4: 3
Lens OD 346.08mm*270.02mm*1.1mm
Lens VA 305mm*229.01mm
Sensor OD 402.32mm*330.06mm*1.1mm
Thickness 2.4mm
Surface hardness 6H
Transparency >90%
Operating temperature -30 ° C~ +75° C
Storage temperature -40 ° C~ +85° C
Relative Humidity 90% at 60° C
Linearity 1PT: +/-1mm, 10PT: +/-2.5mm
Touch life >300, 000, 000 times
Control Type PCBA control board
Connector Type USB
Interface to Host/Master USB, 4 wire, 2.0 Full speed
Supply Voltage USB 5VDC
Power ConsumptionActive Mode: <30mA, Idle Mode: 5mA
Oscillator Frequency 12MHz
Response Time <10ms
Min. Report Rate10PT: 80Hz
Max. Operating frequency 100 MHz
ESD. Air discharge 8KV
ESD. Contact discharge 4KV
Operating system Windows7/Windows8/Windows XP...
Adapter ripple Vpp<50mv
Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, CB, ROSH and widely applied to many fields.
