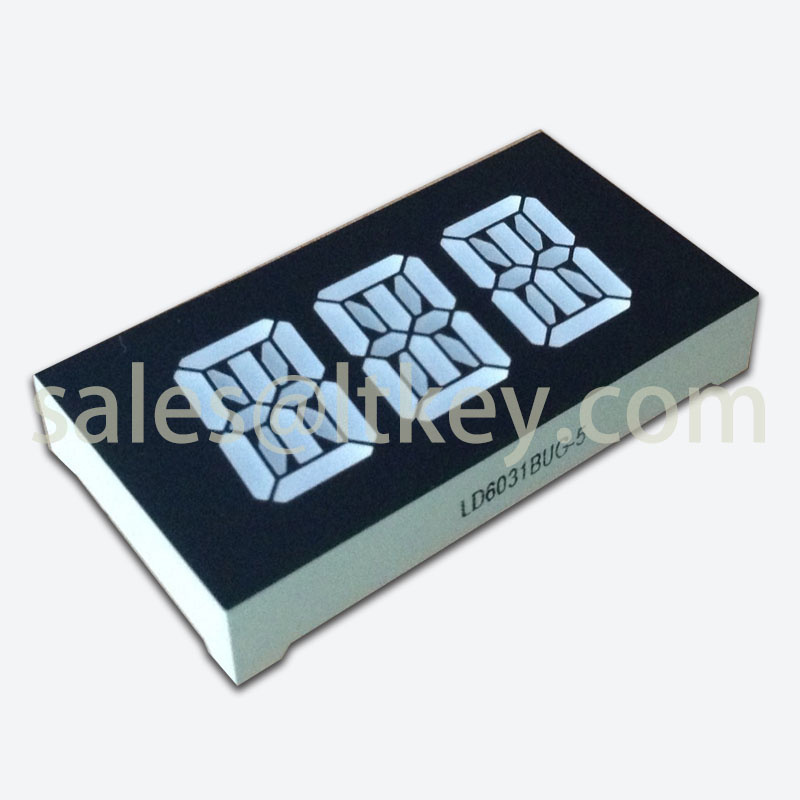

0.6 Inch 16 Segment LED Display
| Price: |
US $ 0.3/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
LD6031A/B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |

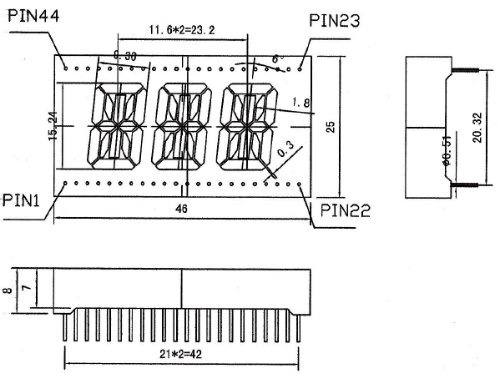

| Outline Dimensions: |
46X25X8mm |
| Digit Height: |
0.6 Inch(16.24mm) |
| Emitting Color: |
Single Color |
| Digit Number: |
3 Digits |
| Chip Matrial: |
4-Element |
| Tube Chip Color: |
Single Color |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Application: |
Meters and Instruments |
| Certification: |
Reach |
| Display Function: |
Numbers and Some Alphabets |
Product Description
Features
Ø 15.24mm (0.6 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Available options
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
