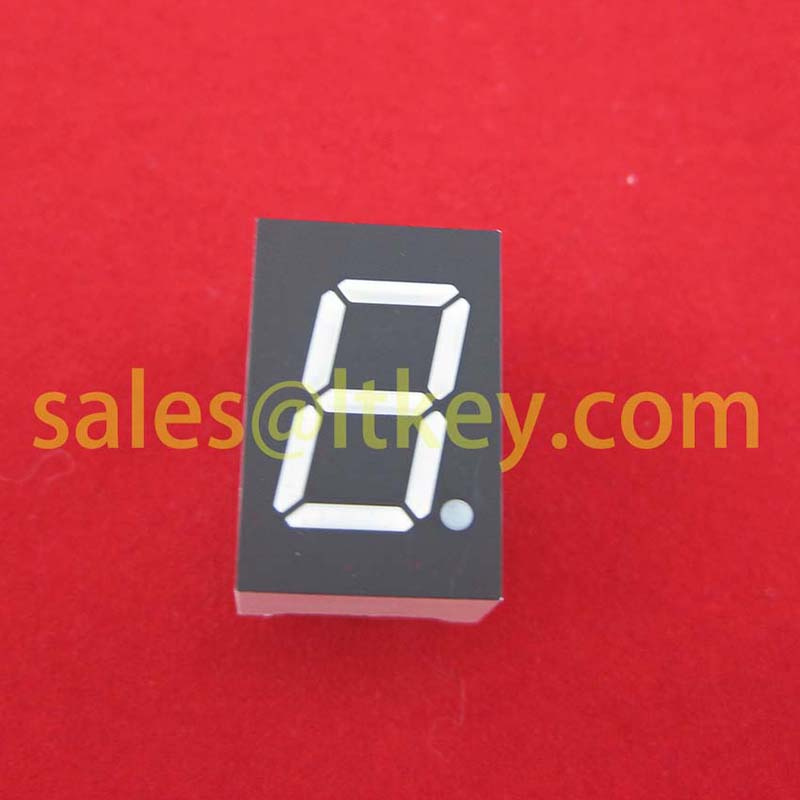

0.5 Inch 7 Segment LED Display

0.5 Inch 7 Segment LED Display
Price: US $ 0.15/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1000/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: LD5013A/B
Markets: North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe

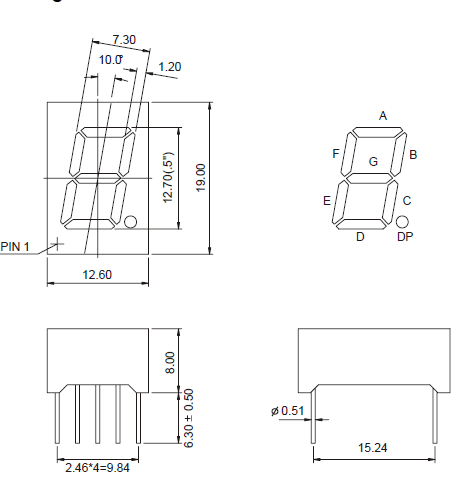

Outline Dimensions: 12.60X19.00X8.00mm
Digit Height: 0.5 Inch(12.7mm)
Emitting Color: Single Color
Dp Number: 1PC
Digit Number: 1 Digit
Chip Matrial: 4-Element
Tube Chip Color: Single Color
Scanning Mode: Static Scan
Display Type: Segment LED Display
Application: Meters and Instruments
Certification: Reach
Display Function: Numbers and Some Alphabets

Product Description


Features
Ø         12.7 mm (0.50 inch) digit high
Ø         Excellent digit appearance
Ø         Wide viewing angle
Ø         Range of emitted colors
Ø         I.C. compatible
Ø         Low power consumption
Ø         White segment
Ø         RoHS compliant


Available options

Ø         Alternative emitting luminosity:
Standard or high brightness version
Ø         Alternative emitted color
Ø         Alternative segment color
Ø         Alternative font
Ø         Common Cathode is available
Ø         Cropped terminal pins

Selection Guide

Single Digit 7 Segment LED Display, Digit Height: 12.70mm(0.50inch), External Dimensions: 12.60x19.00x8.00mm (L x W x H)
Part No.ChipIv@IF=20mAIv@IF=20mA

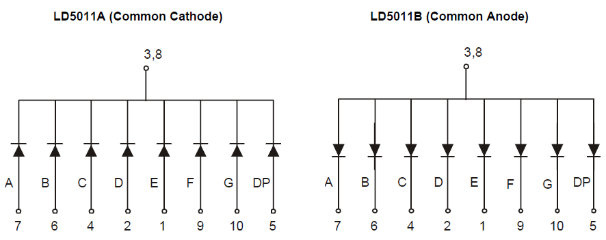

Common CathodeCommon
Anode
MaterialColorWLDOne Seg One DP
Min.Typ.Min.Typ.
 LD5011AR LD5011BRGaAlAsSuper Red640810810
 LD5011AD LD5011BDGaAlAsHi-Red64018251825
 LD5011AO LD5011BOGaAsPOrange6257979
 LD5011AY LD5011BYGaAsPYellow588810810
 LD5011AG LD5011BGGaPGreen5687979
 LD5011AUR LD5011BURAlGaInPUltra Red64050455045
 LD5011AUO LD5011BUOAlGaInPUltra Orange62545604560
 LD5011AUA LD5011BUAAlGaInPUltra Amber60550455045
 LD5011AUY LD5011BUYAlGaInPUltra Yellow59550455045
 LD5011AUG LD5011BUGAlGaInPUltra Green57350455045
 LD5011APG LD5011BPGInGaNPure Green525120500120500
 LD5011AUB LD5011BUBInGaNUltra Blue47050455045
 LD5011AUW LD5011BUWInGaNUltra White\100120100120
Unit:\\\nmmcdmcdmcdmcd

How to produce these item?

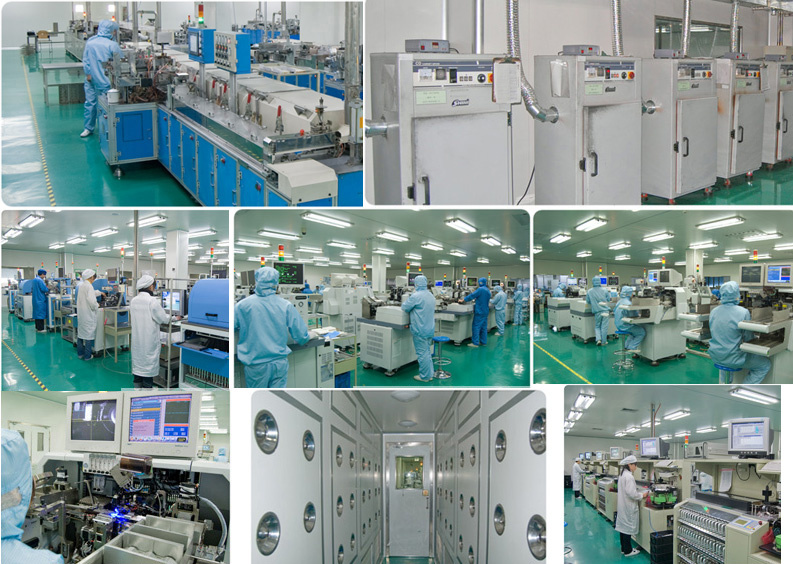

Factory viewing:
LightKey Optoelectronics Ltd. Is a big LED manufacturer, which covers an area of 40, 000 square meters, with approximately 390 production workers, and more than 50 R&D people. It has more than 10 advanced automatic production lines including die attaching, wire bonding, taping and casting. LightKey is also equipped with advanced sorting, testing, and analyzing instruments as well as other technical R&D equipments. We focus on the quality since our estabilishment. Is a manufacturer specialized in LED products especially LED components. Our main products are LED displays: 7 segment LED display, 14 and 16 segment LED display, LED DOT matrix, LED bargraph, &LED lightbar and so on: Lamp type LEDs: White LED, signboard oval LED, standard LED, high-brightness LED, traffic LED, IR LED, photodiode silicon, high power LED, super flux LED, & SMD LED and LED applications. Our company is managed according to ISO9001: 2008. Our LED products have RoHS and REACH compliance.

LightKey has many Famous business partners in the world.

"Keep Improving" is our our tenet.
