| Prod Model: |
LD8041A/B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Outline Dimensions: |
71.6X25.7X8.5mm |
| Digit Height: |
0.8 Inch(20.3mm) |
| Emitting Color: |
Single Color |
| Dp Number: |
4PCS |
| Digit Number: |
4 Digits |
| Chip Matrial: |
4-Element |
| Tube Chip Color: |
Single Color |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Application: |
Meters and Instruments |
| Certification: |
Reach |
| Display Function: |
Numbers and Some Alphabets |
| Pixel Pitch: |
1-10mm |
| Pixel Configuration: |
7 Segments and Dp |
| Pixel Density: |
7 Segments/PC |
| System Operating Platform: |
Win |
| IP Rating: |
IP0 |
Product Description
Features
Ø 20.3 mm (0.8 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Selection Guide

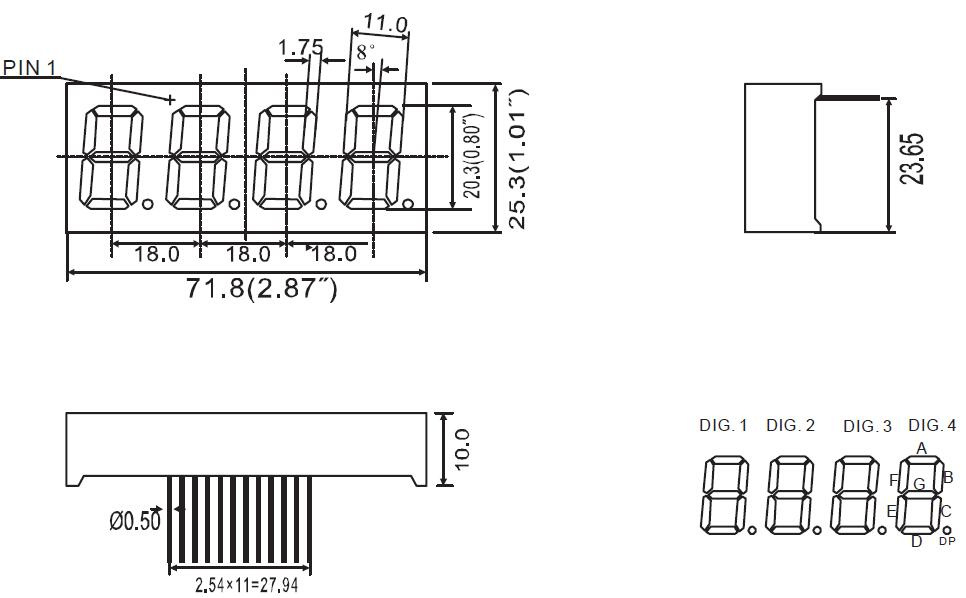

| Four Digits 7 Segment LED Display, Digit Height: 20.40mm(0.80inch), External Dimensions: 71.6x25.7x8.5mm (L x W x H ) |
| Part No. | Chip | Iv@IF=20mA | Iv@IF=20mA |
Common
Cathode | Common
Anode | Material | Color | WLD | One Seg | One DP |
| Min. | Typ. | Min. | Typ. |
| LD8041AR | LD8041BR | GaAlAs | Super Red | 640 | 8 | 10 | 8 | 10 |
| LD8041AD | LD8041BD | GaAlAs | Hi-Red | 640 | 18 | 25 | 18 | 25 |
| LD8041AO | LD8041BO | GaAsP | Orange | 625 | 7 | 9 | 7 | 9 |
| LD8041AY | LD8041BY | GaAsP | Yellow | 588 | 8 | 10 | 8 | 10 |
| LD8041AG | LD8041BG | GaP | Green | 568 | 7 | 9 | 7 | 9 |
| LD8041AUR | LD8041BUR | AlGaInP | Ultra Red | 640 | 30 | 45 | 30 | 45 |
| LD8041AUO | LD8041BUO | AlGaInP | Ultra Orange | 625 | 45 | 60 | 45 | 60 |
| LD8041AUA | LD8041BUA | AlGaInP | Ultra Amber | 65 | 30 | 45 | 30 | 45 |
| LD8041AUY | LD8041BUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 | 30 | 45 |
| LD8041AUG | LD8041BUG | AlGaInP | Ultra Green | 573 | 30 | 45 | 30 | 45 |
| LD8041APG | LD8041BPG | InGaN | Pure Green | 525 | 120 | 300 | 120 | 300 |
| LD8041AUB | LD8041BUB | InGaN | Ultra Blue | 470 | 30 | 45 | 30 | 45 |
| LD8041AUW | LD8041BUW | InGaN | Ultra White | \ | 100 | 120 | 100 | 120 |
| Unit: | \ | \ | \ | nm | mcd | mcd | mcd | mcd |
Available options
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
