| Prod Model: |
LD5636A/B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Outline Dimensions: |
37.6X19X8mm |
| Digit Height: |
0.56 Inch(14.2mm) |
| Emitting Color: |
Single Color |
| Dp Number: |
3PCS |
| Digit Number: |
3 Digits |
| Chip Matrial: |
4-Element |
| Tube Chip Color: |
Single Color |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Application: |
Meters and Instruments |
| Certification: |
Reach |
| Display Function: |
Numbers and Some Alphabets |
Product Description
Features
Ø 14.2mm (0.56 inch) digit high
Ø Excellent digit appearance
Ø Wide viewing angle
Ø Range of emitted colors
Ø I.C. compatible
Ø Low power consumption
Ø White segment
Ø RoHS compliant
Available options
Ø Alternative emitting luminosity:
Standard or high brightness version
Ø Alternative emitted color
Ø Alternative segment color
Ø Alternative font
Ø Common Cathode is available
Ø Cropped terminal pins
Selection Guide

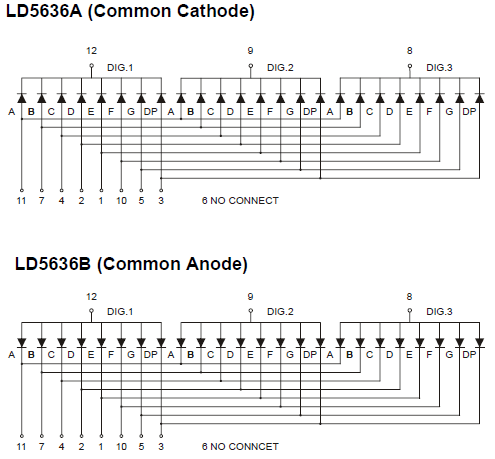

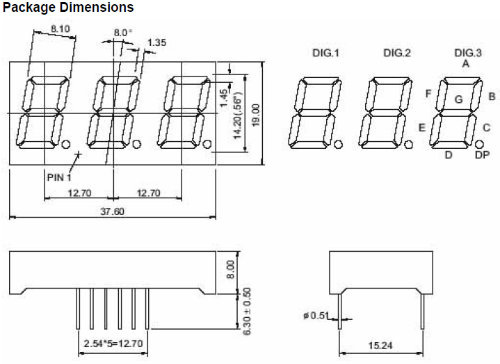

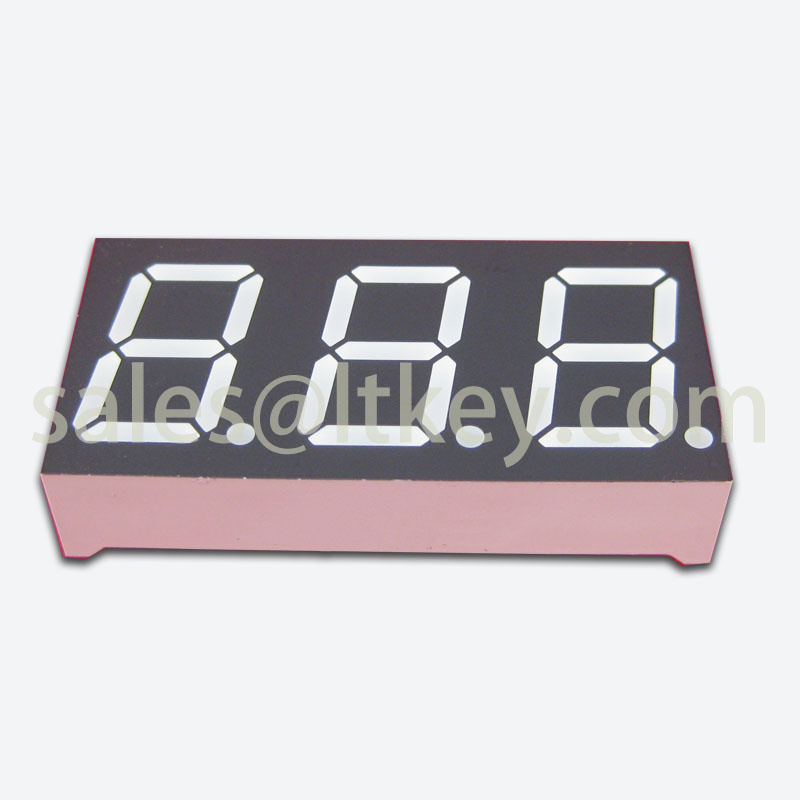

| Three digits 7 Segment LED Display, Digit Height: 14.20mm(0.56inch), External Dimensions: 37.60x19.00x8.00mm (L x W x H ) |
| Part No. | Chip | Iv@IF=20mA | Iv@IF=20mA |
Common
Cathode | Common
Anode | Material | Color | WLD | One Seg | One DP |
| Min. | Typ. | Min. | Typ. |
| LD5636AR | LD5636BR | GaAlAs | Super Red | 640 | 8 | 10 | 8 | 10 |
| LD5636AD | LD5636BD | GaAlAs | Hi-Red | 640 | 18 | 25 | 18 | 25 |
| LD5636AO | LD5636BO | GaAsP | Orange | 625 | 7 | 9 | 7 | 9 |
| LD5636AY | LD5636BY | GaAsP | Yellow | 588 | 8 | 10 | 8 | 10 |
| LD5636AG | LD5636BG | GaP | Green | 568 | 7 | 9 | 7 | 9 |
| LD5636AUR | LD5636BUR | AlGaInP | Ultra Red | 640 | 30 | 45 | 30 | 45 |
| LD5636AUO | LD5636BUO | AlGaInP | Ultra Orange | 625 | 45 | 60 | 45 | 60 |
| LD5636AUA | LD5636BUA | AlGaInP | Ultra Amber | 65 | 30 | 45 | 30 | 45 |
| LD5636AUY | LD5636BUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 | 30 | 45 |
| LD5636AUG | LD5636BUG | AlGaInP | Ultra Green | 573 | 30 | 45 | 30 | 45 |
| LD5636APG | LD5636BPG | InGaN | Pure Green | 525 | 120 | 300 | 120 | 300 |
| LD5636AUB | LD5636BUB | InGaN | Ultra Blue | 470 | 30 | 45 | 30 | 45 |
| LD5636AUW | LD5636BUW | InGaN | Ultra White | \ | 100 | 120 | 100 | 120 |
| Unit: | \ | \ | \ | nm | mcd | mcd | mcd | mcd |
How we produce this 0.56 inch 3 digits 7 Segment LED Display?

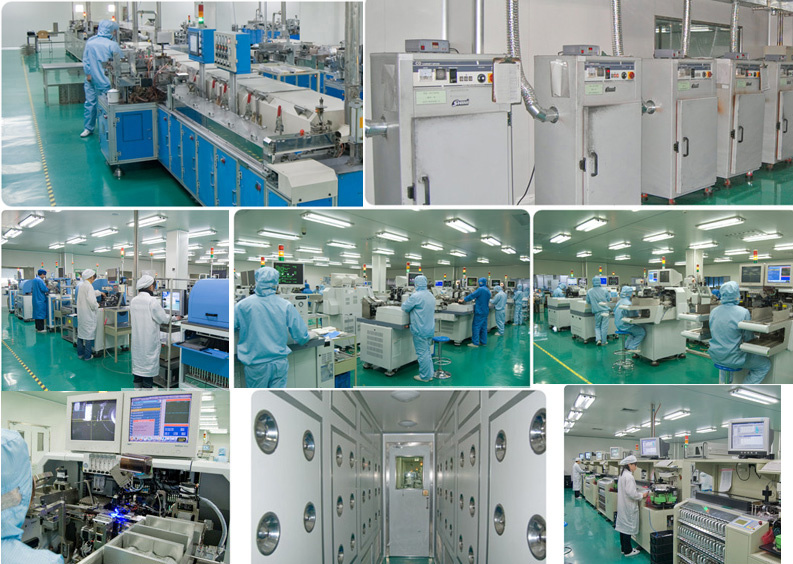

Factory view:
