| Prod Model: |
HAL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |

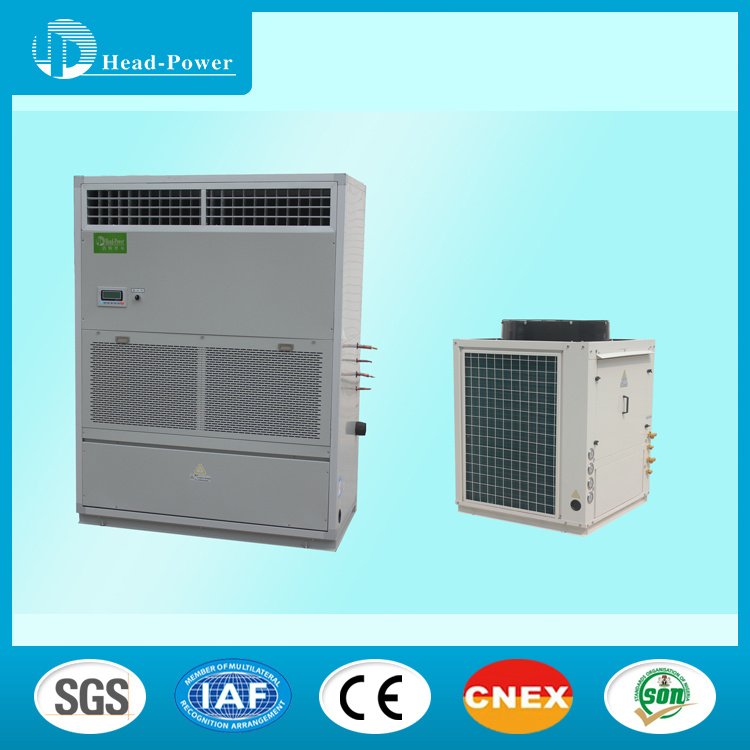

5 Ton R410A Standing Split Type Air Conditioner |
| Cooling Capacity: |
8-176kw |
| Heating Capacity: |
8.6-184kw |
| Air Flow: |
1350-32500 CMH |
| Medium: |
R22/R407c/R410A/R134A, etc, Choose by Clients |
| Compressor Brand: |
Hitachi, SANYO, Panasonic, Copeland,etc |
| Compressor Type: |
Hermetic Scroll |
| Evaporator: |
Copper Tubes with Aluminum Fins |
| Condenser: |
Copper Tubes with Aluminum Fins |
| Type: |
Cabinet Air Conditioner |
| Mounting: |
Split |
| Certification: |
SGS |
| Condition: |
New |
| Operating Voltage: |
220V, 380V, 160V, 440V etc. |
| Application Fields: |
Factory, Shop etc |
Product Description
1)The Feature of 5 ton r410a standing split type air conditioner
a.Diversified applications
According to different air duct lengths of the direct blowing type, the inddor units can be divided into low and hight static pressure types, and the wind pressure of the high static pressure unit can be regulated; anti-mould filter is used, and fresh air can be introduced to ensure health.
b.Comportable and tranquil
The inddoor units enjoy ultra low niise design with high- quality heat and sound insulating material used on the wall; ultra-low noise double air intake centrifugal fan is used with specialized vibration absorption;
c.High-quality indoor air
If air duct is used for air supply, uniform distribution of refrigeration and air quaitity can be achieved,and fresh air can be introduced, greatly improving indoor air quality.HEPA sterilization device and dust filter are optional by users and can effectively tkill the viruses in the air and clean the air ,reliving you from air conditioner illness.
2)Product model
| Model | HAD03(H) | HAD05(H) | HAD06(H) | HAD08(H) | HAD10(H) | HAD12(H) | HAD15(H) | HAD18(H) | HAD20(H) | HAD25(H) | HAD30(H) | HAD36(H) | HAD40(H) | HAD50(H) | HAD60(H) |
| Unit performance | Cooling capacity | kw | 7.8 | 13 | 15.6 | 20.8 | 26 | 31.2 | 39 | 46.8 | 52 | 65 | 78 | 93.6 | 104 | 130 | 156 |
| Heating capacity | kw | 8.1 | 13.6 | 16.5 | 22.1 | 27.5 | 33 | 41.5 | 50.2 | 56.8 | 69 | 82 | 98 | 110 | 136 | 162 |
| *Electric heating | kw | 3 | 4 | 5 | 6 | 8 | 9 | 12 | 15 | 16 | 18 | 25 | 30 | 32 | 36 | 50 |
| Air flow | m3/h | 1700 | 2600 | 3100 | 4100 | 5400 | 6500 | 8000 | 9600 | 10800 | 13800 | 16000 | 19500 | 20500 | 25500 | 27000 |
| External static pressure | Pa | 80 | 100 | 110 | 110 | 120 | 180 | 200 | 200 | 220 | 230 | 230 | 260 | 300 | 340 | 350 |
| Power Supply | 220V | 380V/3N~50Hz |
| Refrigerant | Type | R22/R407C |
| Volume control | expansion valve/capillary tube |
| Charge | kg | 3.5 | 5 | 5 | 5+3.5 | 5*2 | 5.6*2 | 5*3 | 5.6*3 | 5*4 | 5.6*4 | 10*2+5 | 10*3 | 10*2+5 | 10*4 | 10*5 |
| Compressor | Type | flexible hermetic scroll compressor |
| Power | kw | 2.25 | 3.75 | 4.5 | 3.75+2.25 | 3.75*2 | 4.5*2 | 3.75*3 | 4.5*3 | 3.75*4 | 4.5*4 | 9*2+3.75 | 9*3 | 9*3+3.75 | 9*4 | 9*5 |
| Evaporator | Type | copper tube with aluminium fin |
| Fin type | Slotted-type two-way aluminum fin/honeycomb type aluminum fin |
| Indoor unit | Fan | Type | centrifugal type |
| Driving method | direct-drive | belt-drive |
| Power | kw | 0.25 | 0.55 | 0.55 | 0.28*2 | 0.55*2 | 1.5 | 2.2 | 2.2 | 3 | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 |
| Unit Dimension | L | mm | 800 | 1000 | 1100 | 1250 | 1250 | 1450 | 1650 | 1720 | 1800 | 1800 | 2000 | 2100 | 2200 | 2400 | 2550 |
| W | mm | 500 | 500 | 500 | 600 | 600 | 800 | 800 | 800 | 800 | 900 | 900 | 1000 | 1000 | 1300 | 1500 |
| H | mm | 1400 | 1500 | 1500 | 1600 | 1600 | 1700 | 1800 | 1950 | 1950 | 2000 | 2000 | 2200 | 2200 | 2250 | 2400 |
| Weight | kg | 70 | 90 | 100 | 140 | 160 | 225 | 280 | 320 | 350 | 440 | 480 | 580 | 630 | 700 | 815 |
| Noise level | dB/(A) | <50 | <52 | <52 | <52 | <56 | <60 | <65 | <65 | <67 | <67 | <67 | <67 | <68 | <70 | <72 |
| Outdoor unit | Compressor | Type | Hermetic Scroll |
| Power | kw | 2.25 | 3.75 | 4.5 | 3.75+2.25 | 3.75*2 | 4.5*2 | 3.75*3 | 4.5*3 | 3.75*4 | 4.5*4 | 9*2+3.75 | 9*3 | 9*3+3.75 | 9*4 | 9*5 |
| Condenser | Type | tube with fin |
| Fin type | Slotted-type two-way aluminum fin |
| Blower | Type | ultra-low noise axial type |
| Driving method | direct-drive |
| Power | kw | 0.18 | 0.25 | 0.25 | 0.55 | 0.71 | 0.75 | 1.1 | 0.71*2 | 0.71*2 | 0.75*2 | 1.1*2 | 1.5*2 | 0.75*3 | 1.1*3 | 1.1*4 |
| Unit Dimension | L | mm | 860 | 970 | 840 | 940 | 1050 | 1350 | 1350 | 1850 | 1950 | 2400 | 2450 | 2300 | 2800 | 3000 | 3000 |
| W | mm | 300 | 350 | 840 | 940 | 1050 | 1050 | 1200 | 1050 | 1050 | 1050 | 1100 | 1100 | 1100 | 1100 | 1100 |
| H | mm | 830 | 1250 | 950 | 1250 | 1300 | 1300 | 1300 | 1150 | 1150 | 1250 | 1400 | 1400 | 1500 | 1500 | 1600 |
| Weight | kg | 100 | 130 | 140 | 210 | 240 | 360 | 380 | 450 | 480 | 650 | 750 | 860 | 920 | 1360 | 1450 |
| Noise level | dB(A) | 62 | 63 | 63 | 67 | 68 | 69 | 70 | 71 | 71 | 72 | 74 | 75 | 76 | 77 | 78 |
| Connecting tubes | Refrigerant gas tube | Size | 15.9 | 19.1 | 19.1 | 19.1+ 15.9 | 19.1 | 19.1 | 19.1 | 19.1 | 19.1 | 19.1 | 28×2 +19.1 | 28 | 28×3+19.1 | 28 | 28 |
| Quantity | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 1 | 3 | 1 | 4 | 5 |
| Refrigerant liquid tube | Size | 9.52 | 12.7 | 12.7 | 12.7+ 9.52 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 15.9× 2+12.7 | 15.9 | 15.9×3+12.7 | 15.9 | 15.9 |
| Quantity | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 1 | 3 | 1 | 4 | 5 |
| Connection method | flare opening | welding+flare opening |
