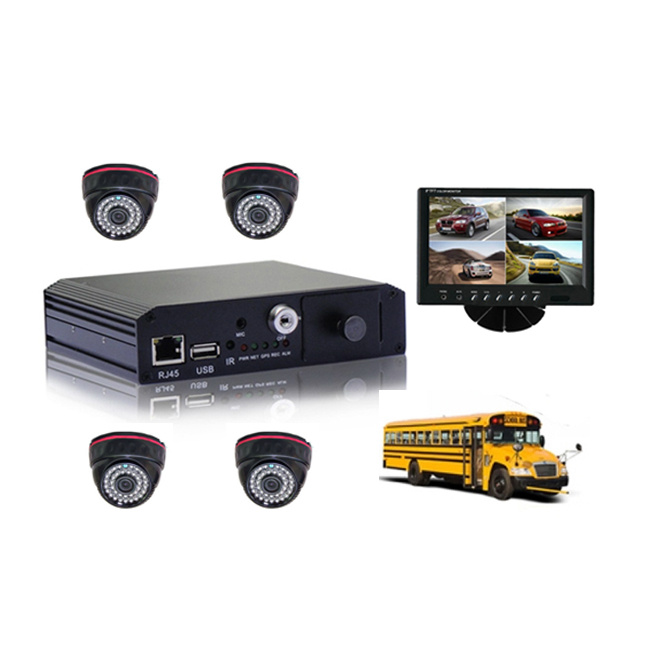

4G/3G/GPS/WiFi Mobile DVR Recording System for Bus/Truck/Police
Price: |
US $ 115-199/Piece |
Trade Terms: |
FOB,FCA,EXW |
Min Order: |
2/Piece |
Pay Type: |
T/T,D/P,Paypal,Western Union |
Prod Model: |
Car DVR VC-MDRS8000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Function: |
3G/GPS/WiFi for Option |
Storage: |
SD Card, Max 64G |
Channel: |
4 CH |
Compression Format: |
H.264 |
Brand: |
Vcomsky |
Interface: |
Airplug |
Product Description
VC-MDRS8000 Series is a high level SD card mobile digital video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, and applies various advanced technologies in IT field, such as A/V codec, high capacity SD card storage, network streaming media, A/V noise reduction, wide range voltage design.
Key Features:
Industrial level design;
Advanced audio/video compression technology;
4-channel video input, 4 ch audio input;
ASF standard file format;
Built in G-sensor module;
3G, GPS, Wi-Fi modules for optional;
Local and remote PTZ control;
Data redundant storage technology;
Patent UPS power-off protection design;
Fast startup;
Optional function: Bi-directional voice communication, telephone dialing, disk pre-heating;
Central management software provided for optional;
Support intercom function;
Remote control;
Remote download;
3G WIFI switch automaticly;
Support 6ch I/O alrm, over speed alarm, g-sensor alarm, video lose alarm, motion detection alarm;
Support broadcast voice;
Support LED control;
Support max 64G SD card.
Suitable for:
Bus, School bus, Logistics vehicle, Taxi, Police car, Special purpose vehicle, Train/metro, Ship/boat
Specifications |
Item |
Description |
|
Operation system |
Linux |
|
GUI |
Setup system parameters with remote controller |
|
Security management |
Support user password, supervisor password management; support encryption transmission |
|
Video |
Video input/output |
4-channel video input, 1-channel video output; 1.0Vp-p, 75Ω |
|
Dual stream |
Support |
|
OSD |
Time & date, vehicle ID, GPS etc |
|
Compression |
H.264. Hi-silicon high performance processor is applied. |
|
Preview function |
Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function |
|
Video frame rate |
PAL: 100 frame/sec, up to 25 frame/sec for single channel
NTSC: 120 frame/sec, up to 30 frame/sec for single channel |
|
Video resolution |
CIF, HD1, D1, 4D1 adaptive |
|
Video quality |
Level 1 to 4 video quality adaptive, level 1 best, level 4 lowest |
|
Video Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 5 levels of bit rate optional
HD1: 600Kbps ~ 2 Mbps, 5 levels of bit rate optional
D1: 800Kbps ~ 3Mbps, 5 levels of bit rate optional
4D1: 800Kbps ~ 1.5Mbps, 5 levels of bit rate optional |
|
Audio |
Audio input/output |
4-channel input; 1-channel output |
|
Compression |
G.726 |
|
Recording |
Storage media |
Support SD card with 64G maximum capacity |
|
File format/system |
ASF/ FAT32 |
|
Recording mode |
Startup recording by default, support auto, timed, alarm & manual recording |
|
Recording search |
Search recording video files by time, type, storage device, etc. |
|
Recording playback |
Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time |
|
Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time |
|
Alarm |
Alarm input |
6-channel I/O alarm input |
|
Alarm recording |
Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min |
|
Alarm output |
1-channel alarm output |
|
Storage space |
Support the setting of remain storage space alarm function |
|
Functional alarm |
Over-speed alarm, g-sensor alarm, voltage alarm, snapshot alarm, motion detection alarm |
|
Communication interface |
RS232, RJ45 10M/100M self-adaption Ethernet interface |
|
Wireless transmission (optional) |
Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional; |
|
GPS (optional) |
Support external GPS module |
|
Data remote transmission |
Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download; |
|
PTZ control |
Support PTZ control function by local remote controller or client software; |
|
Parameter configuration |
Support parameter configuration |
|
G-sensor |
Built-in |
|
System upgrade |
Support SD card / Remote upgrade |
|
Power supply & consumption |
Power supply management |
ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown |
|
Input voltage |
DC:+8V ~ +36V |
|
Output voltage |
+12V@4*0.5A;[email protected] |
|
Power-off protection |
Patent UPS power-off protection technology for optional, ensure the integrality of recording data when accidental power failure occurs |
|
Power consumption |
Less than 10W in normal working state; less than 0.5W in standby mode |
|
Working environment |
Temperature |
Normal: -20 ~ +60
Hard disk pre-heating: -25 ~ +60 |
|
Humidity |
10% to 95% |
|
Dimension |
142(W) x36(H) x123(D) mm. |
|
Weight |
Net weight:550g, gross weight:1000g |
|
Company Overview
Shenzhen Vcomsky Technology Co., Ltd., simple named Vcomsky, is a high-tech enterprise engaged in researching, developing, manufacturing and marketing mobile security products and IP camera products. Founded in 1998, the company is now located in Nanshan district, the economic center of Shenzhen, and run by a strong team of R&D, sales and administration, it's manufacturer located in Longgan district. Ever since it's foundation, Vcomsky has achieved great success in developing high anti-vibration mobile dvrs, high-pixel cameras, and a series of HD IP cameras. with cutting-edge technology and advanced manufacturing facilities, we have become one of the largest suppliers of car security products in China!
The pursuit of quality
Vcomsky emphasizes the advanced enterprise management and regards quality as our lifeline. with thorough quality management system and advanced quality testing equipments, we can conduct various comprehensive performance testing to our products, such as "Low and High Temperature Test" "Vibration Test" "Salt Spray Test" "Swing Test" "Waterproof Test" and "Aging Test" etc^ And also we strictly follow the quality control process to grantee the products' stability.
Vcomsky has been certificated with the highest international level of quality management system in auto industry_ISO/TS16949: 2009, and also we are in strict accordance with the EU RoHS standard during manufacturing. Meanwhile, a variety of our products have reached the highest waterproof rating of IP69K, and approved with CE, FCC, EMARK etc.
Premium service
Premium service is the foundation to win trust from customers, so Vcomsky provides professional OEM and ODM services to meet various needs of customers. And also, with the belief of "Growing with customers" and "Customer oriented", we dedicate to manufacturing the best products and offering the most satisfying service, even exceeding the expectation of customers to realize mutual benefits.
Excellence and leading
Vcomsky had formed a professional R&D team since its inception. All the way, we have persistently invested new technologies, developed new products, and launched a series of powerful and innovative products to meet the market's demand.
In terms of mobile security products, mobile dvrs with multi-language operation, multi-channel video input, multi-style, multi-function selection, wide voltage input, and supply power to the cameras. The universal shock for mobile hard disk dvrs is very useful. Mobile cameras with wide viewing angle, night vision capabilities, attractive appearance, mini size etc. Our mobile security products apply to various kinds of vehicle, such as trucks, buses, ambulances, garbage trucks, fire engines, agricultural vehicles, concrete mixer lorries, excavators, forklifts, road sweepers, cranes and etc. Relying on quality and outstanding styles, Vcomsky products are exported to many developed countries, such as United States, Britain, Germany, Japan and France. We have established long-term mutually beneficial partnership with many world famous enterprises.
In terms of HD IP cameras products, We have developed full series of IP cameras products, include; HD IPCAM, 3G IPCAM, SD IPCAM, and video management software. We own all source code of our products and can provide professional OEM and ODM customize service for global customer. We can print your logo or brandname on our products, even design the housing and package of products for you!
Humanity Harmony
Vcomsky adheres to the belief of People-oriented, so we provide competitive salary and welfare, equal opportunities of development, harmonious and comfortable working environment. These give employees a sense of stability, satisfaction, achievement and belonging, which in turn lays a solid foundation for our long-run development.
Vcomsky will always stand ready to cooperate with you. Let's grow together!
